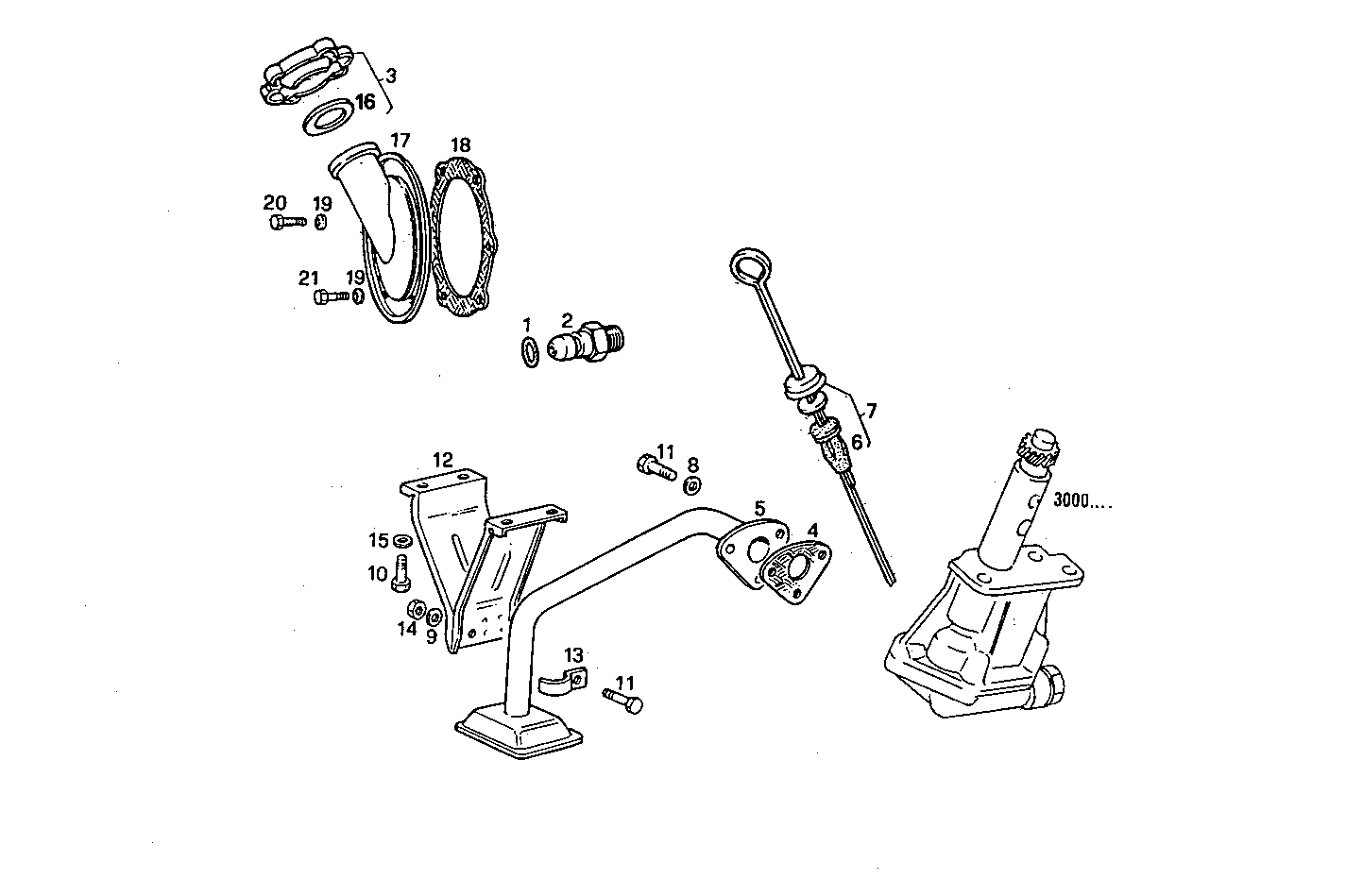

LUBE OIL LINES
8045U06.55 — 8045U06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 561293 | O-RING O-RING | 1 | |
| 2 | 4785501 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 4232606 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 4 | 98400788 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 4787048 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 6 | 4624702 | GASKET GASKET | 1 | |
| 7 | 4767573 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 8 | 17089574 | WASHER WASHER | 3 | |
| 9 | 12646701 | WASHER WASHER | 1 | |
| 10 | 16605424 | SCREW SCREW | 4 | |
| 11 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 4601844 | RETAINER RETAINER | 1 | |
| 13 | 4775924 | RETAINER RETAINER | 1 | |
| 14 | 17157021 | NUT NUT | 1 | |
| 15 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 98418978 | GASKET GASKET | 1 | |
| 17 | 4782886 | COVER COVER | 1 | |
| 18 | 98400781 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 19 | 10519601 | WASHER WASHER | 6 | |
| 20 | 16044421 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 21 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 |
