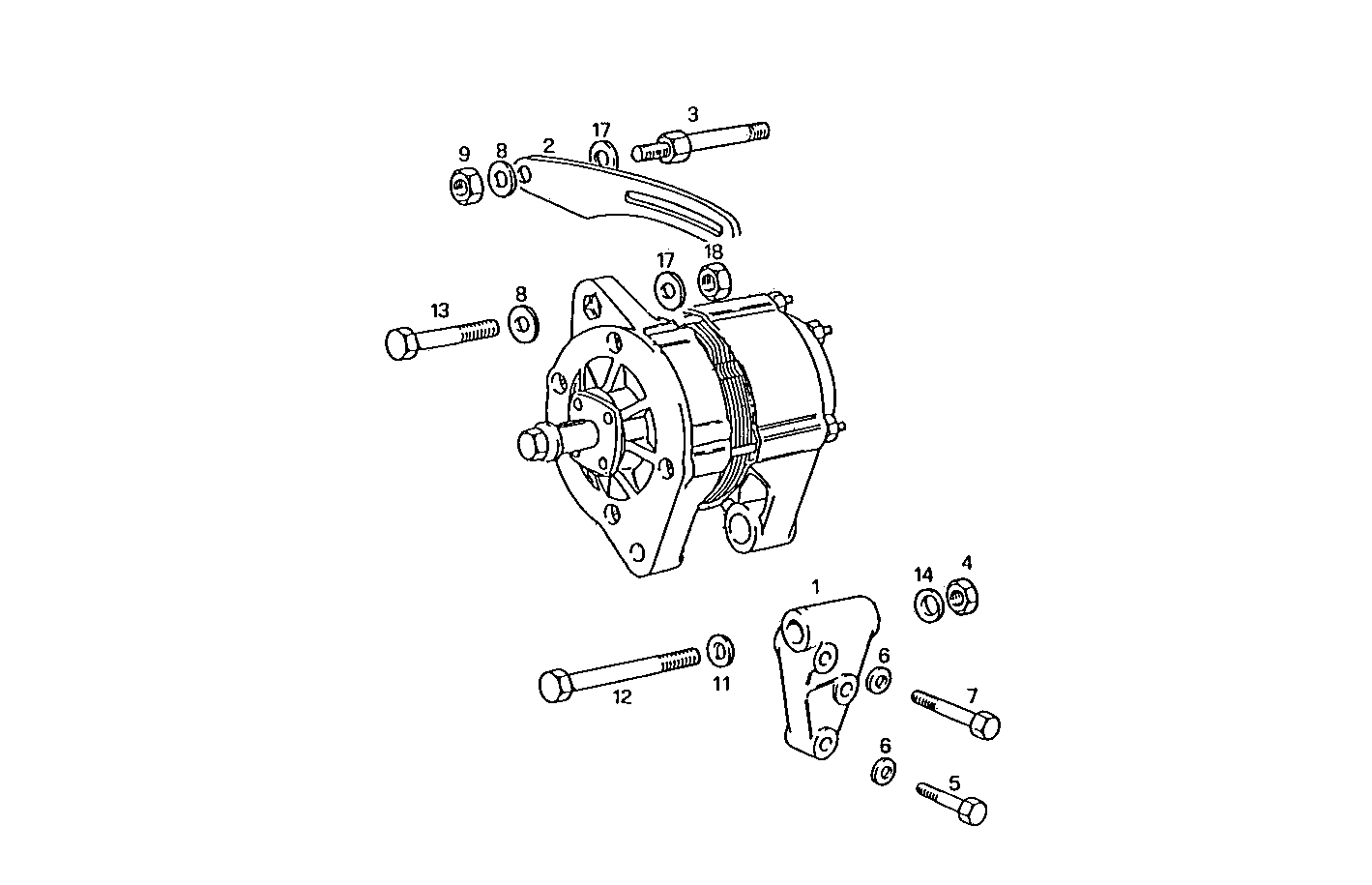

MOUNT
8060.05.276 — 8060.05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4797035 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 4641651 | TURNBUCKLE TURNBUCKLE | 1 | |
| 3 | 4811983 | SCREW SCREW | 1 | |
| 4 | 17038421 | HEXAGON NUT HEXAGON NUT | 1 | |
| 5 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 7 | 16606024 | SCREW SCREW | 2 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 17095304 | WASHER WASHER | 1 | |
| 12 | 16607224 | SCREW SCREW | 1 | |
| 13 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17091074 | WASHER WASHER | 1 | |
| 17 | 17095104 | WASHER WASHER | 2 | |
| 18 | 17038121 | HEXAGON NUT HEXAGON NUT | 1 |
