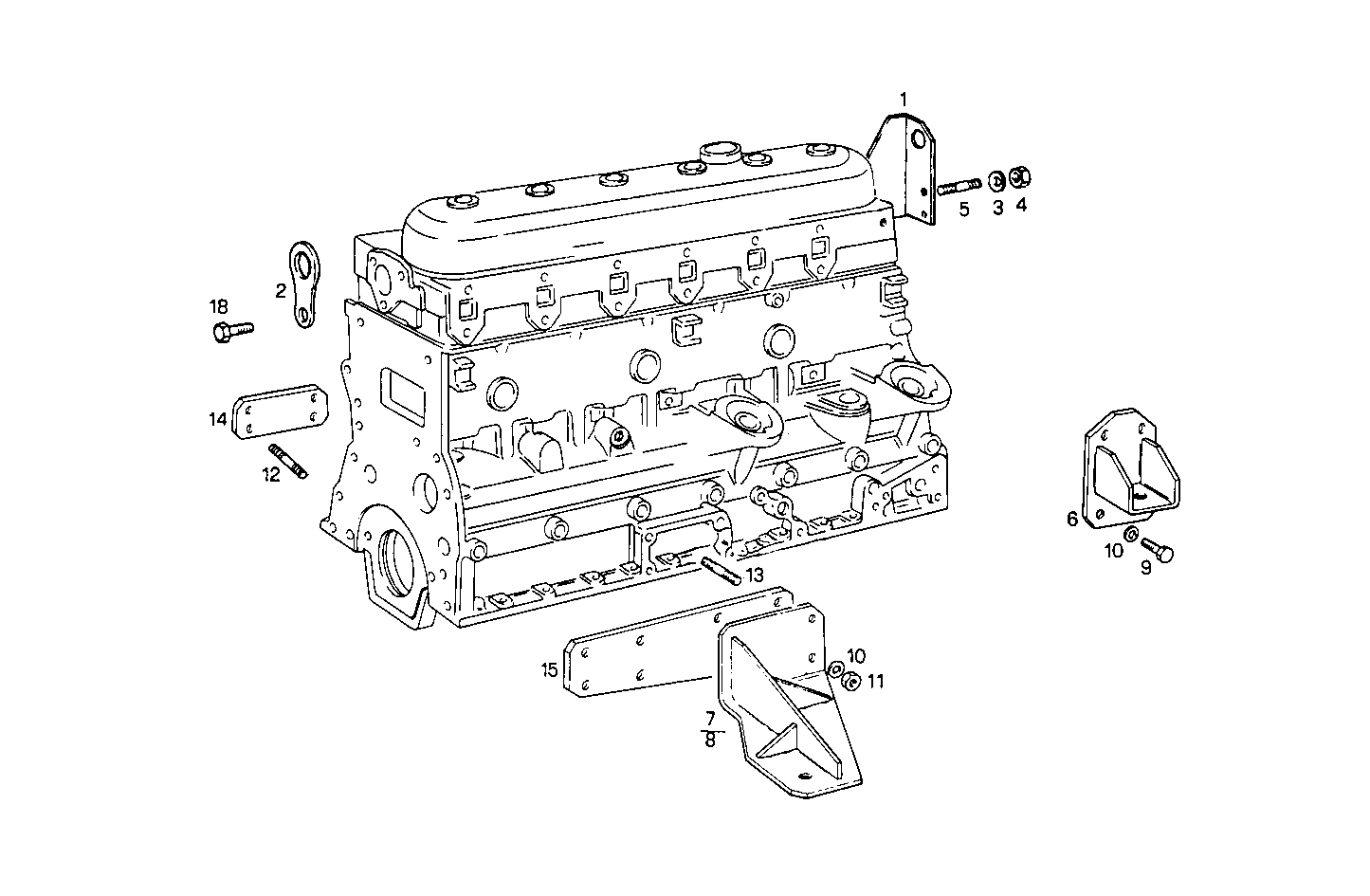

ENGINE SUSPENSION
8060SM21.10 — 8060SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006869 | HOOK HOOK | 1 | |
| 2 | 8007135 | HOOK HOOK | 1 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 4 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 5 | 16746624 | STUD STUD | 2 | |
| 6 | 8113092 | SUPPORT SUPPORT | 2 | |
| 7 | 8105561 | SUPPORT SUPPORT | 1 | |
| 8 | 8105562 | SUPPORT SUPPORT | 1 | |
| 9 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 16 | |
| 11 | 17038421 | HEXAGON NUT HEXAGON NUT | 8 | |
| 12 | 16733224 | STUD STUD | 4 | |
| 13 | 16733424 | STUD STUD | 4 | |
| 14 | 4927434 | SPACING BAR SPACING BAR | 1 | |
| 15 | 4721078 | PLATE PLATE | 1 | |
| 18 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 20 | 11306921 | SCREW SCREW | 1 |
