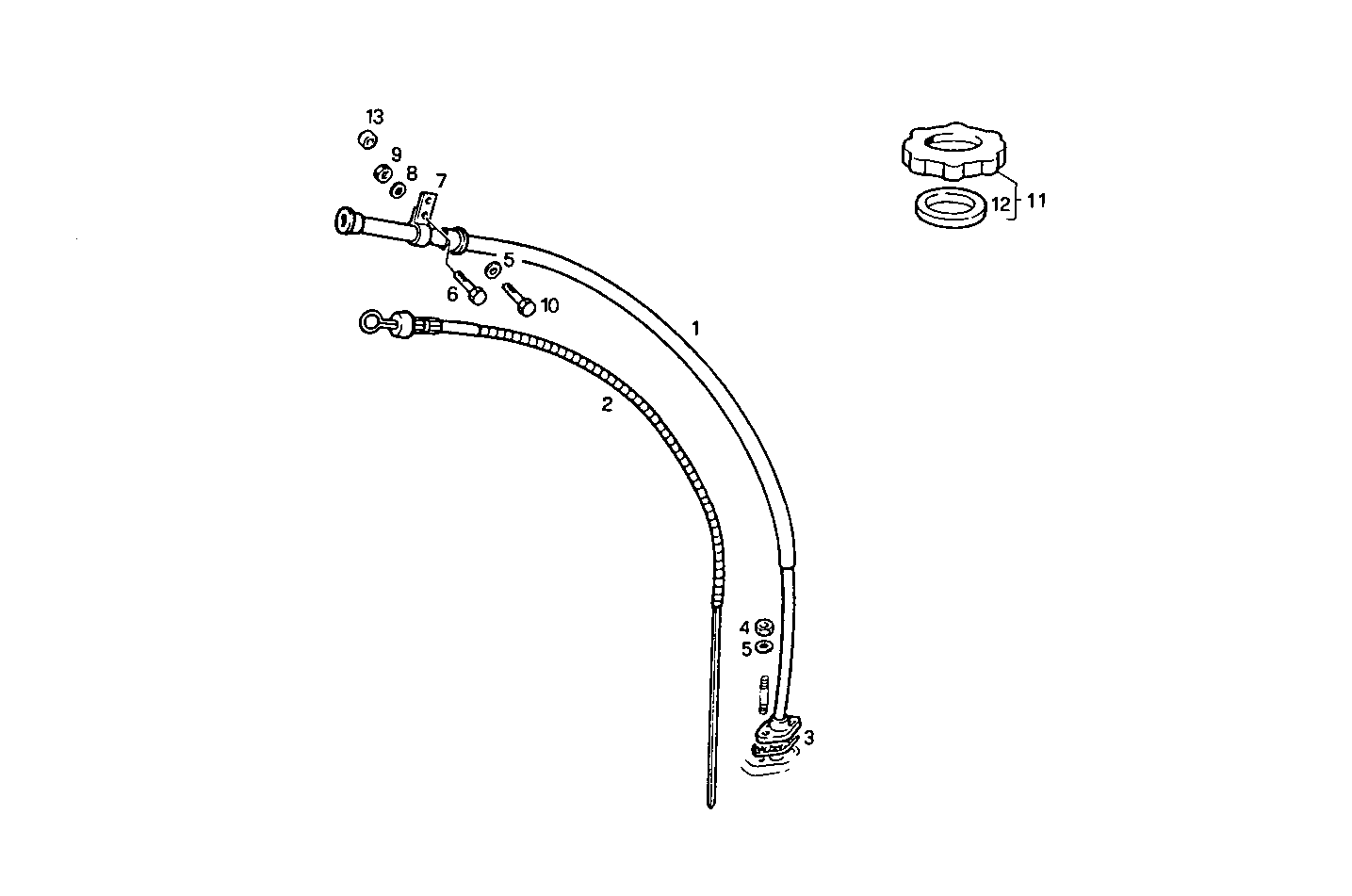

OIL DIPSTICK
8060SM21.10 — 8060SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006370 | ROD GUIDE ROD GUIDE | 1 | |
| 2 | 8006372 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 3 | 98418621 | GASKET GASKET | 1 | |
| 4 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 6 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 4930515 | CLIP CLIP | 1 | |
| 8 | 17088474 | WASHER WASHER | 1 | |
| 9 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 4232606 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 12 | 98418978 | GASKET GASKET | 1 | |
| 13 | 8022903 | SPACING BAR SPACING BAR | 1 |
