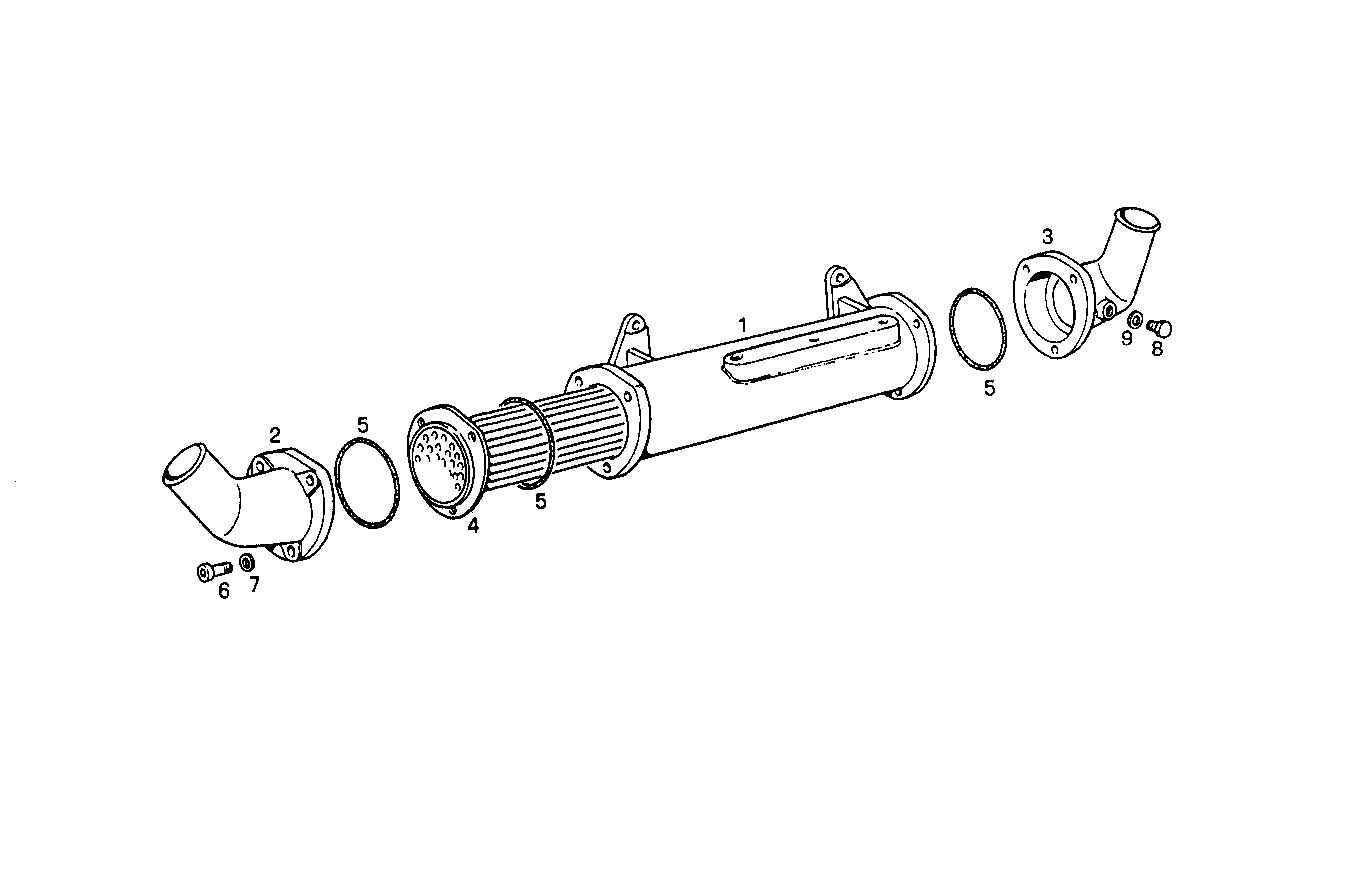

OIL - WATER HEAT EXCHANGER
8060SM21.10 — 8060SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006527 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 2 | 8006528 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 3 | 8006529 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 4 | 8006530 | TUBE STACK TUBE STACK | 1 | |
| 5 | 8006531 | O-RING O-RING | 3 | |
| 6 | 16689324 | SCREW SCREW | 6 | |
| 7 | 17088474 | WASHER WASHER | 6 | |
| 8 | 16992140 | PLUG PLUG | 1 | |
| 9 | 10284460 | SEAL GASKET SEAL GASKET | 1 |
