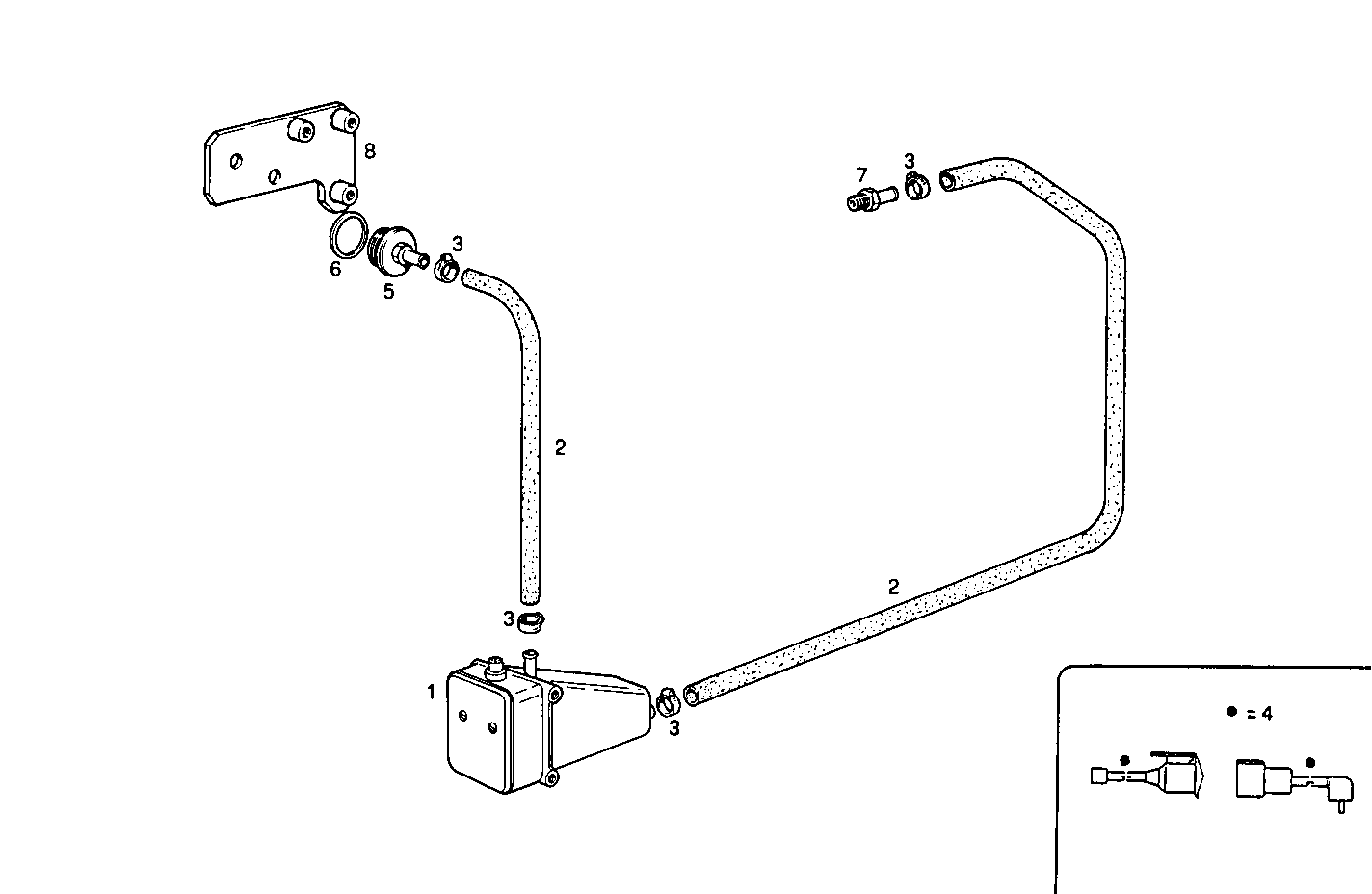

WATER PREHEATER DEVICE - 220V
8060SM21.10 — 8060SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008375 | HEATER HEATER | 1 | |
| 2 | 8114428 | HOSE HOSE | 2 | |
| 3 | 18088392 | CLIP CLIP | 4 | |
| 4 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 8009327 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 10265460 | SEAL GASKET SEAL GASKET | 1 | |
| 7 | 4616630 | THREADED UNION THREADED UNION | 1 | |
| 8 | 8009834 | RETAINER RETAINER | 1 |
