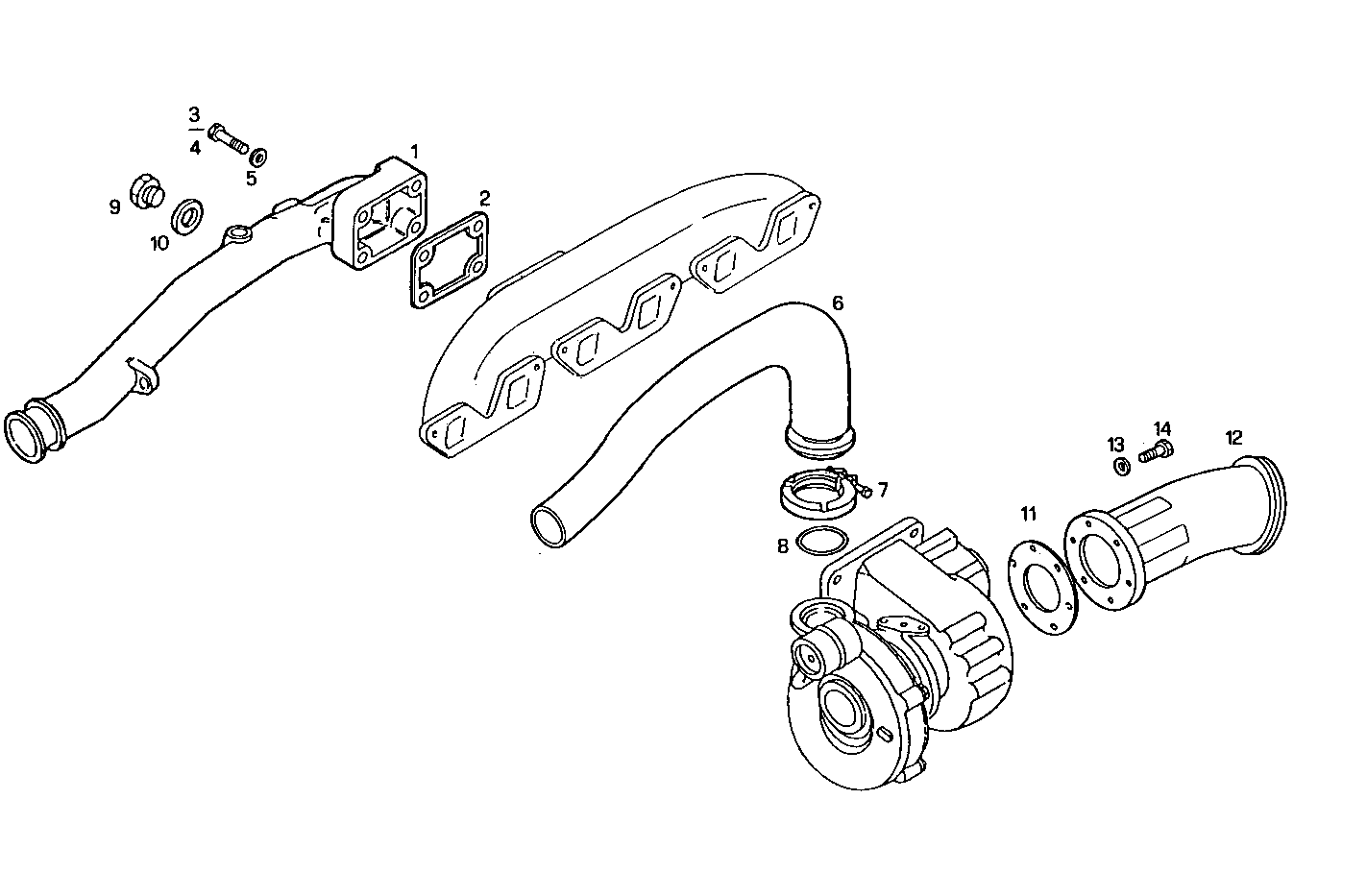

SUPERCHARGING LINES
8060SRC20.00 — 8060SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99436521 | SUCTION LINE SUCTION LINE | 1 | |
| 2 | 99436925 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 11343724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 15971824 | SCREW SCREW | 2 | |
| 5 | 17095101 | WASHER WASHER | 4 | |
| 6 | 4850068 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 7 | 4843862 | CLIP CLIP | 1 | |
| 8 | 17283481 | O-RING O-RING | 1 | |
| 9 | 10276711 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 10265160 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 98428398 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 12 | 98414437 | MANIFOLD MANIFOLD | 1 | |
| 13 | 98415215 | WASHER WASHER | 6 | |
| 14 | 98490833 | HEXAGON BOLT HEXAGON BOLT | 6 |
