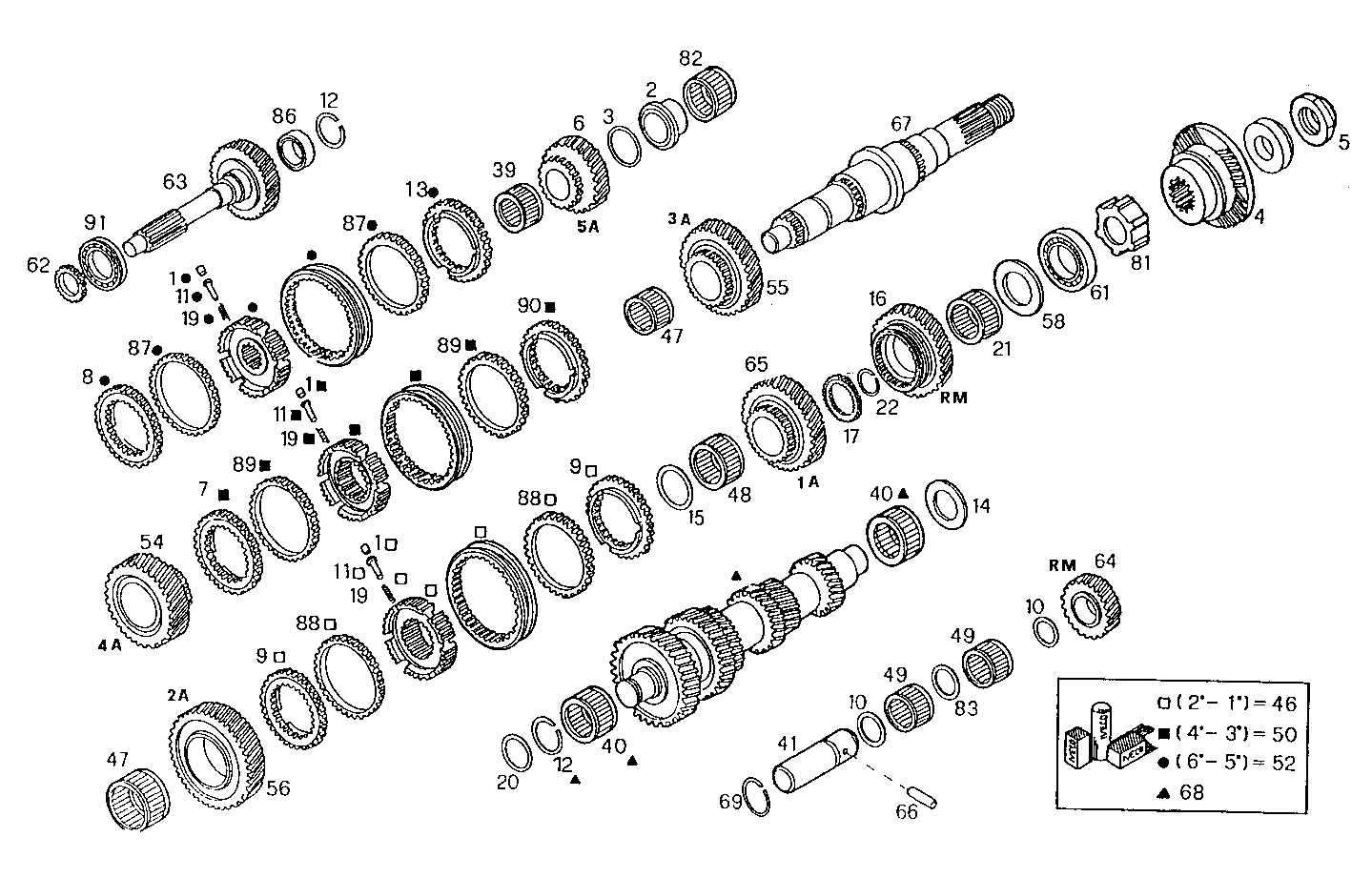

TRANSMISSION GROUP - 2865.6
8060SRC20.01 — 8060SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8856938 | PARALLEL ROLLER PARALLEL ROLLER | 9 | |
| 2 | 8869115 | PLUG-IN SLEEVE PLUG-IN SLEEVE | 1 | |
| 3 | 8859309 | SET OF SHIMS SET OF SHIMS | 1 | |
| 4 | 8859400 | SHIFT SLEEVE SHIFT SLEEVE | 1 | |
| 5 | 8860553 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 8859353 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 7 | 8861583 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 8 | 8861640 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 9 | 8860499 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 10 | 8860343 | STOP WASHER STOP WASHER | 2 | |
| 11 | 8860354 | CONTROL PISTON CONTROL PISTON | 9 | |
| 12 | 8860774 | SHIM SHIM | 2 | |
| 13 | 8861580 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 14 | 8862210 | SPACING BAR SPACING BAR | 1 | |
| 15 | 8861702 | SET OF SHIMS SET OF SHIMS | 1 | |
| 16 | 8859465 | REVERSE GEAR REVERSE GEAR | 1 | |
| 17 | 8859469 | GEAR BOX HUB GEAR BOX HUB | 1 | |
| 19 | 8860357 | SPRING SPRING | 9 | |
| 20 | 8861871 | SET OF SHIMS SET OF SHIMS | 1 | |
| 21 | 1905253 | ROLLER CAGE ROLLER CAGE | 1 | |
| 22 | 8860775 | REVERSE GEAR REVERSE GEAR | 1 | |
| 39 | 1905264 | ROLLER CAGE ROLLER CAGE | 1 | |
| 40 | 1905261 | DRIVE BEARING DRIVE BEARING | 2 | |
| 41 | 8861569 | RETURN SHAFT RETURN SHAFT | 1 | |
| 46 | 8860511 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 47 | 1905263 | ROLLER CAGE ROLLER CAGE | 2 | |
| 48 | 1905262 | ROLLER CAGE ROLLER CAGE | 1 | |
| 49 | 1905254 | ROLLER CAGE ROLLER CAGE | 2 | |
| 50 | 8859905 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 52 | 8861647 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 54 | 8863093 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 55 | 8863092 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 56 | 8863091 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 58 | 8859502 | STOP WASHER STOP WASHER | 1 | |
| 61 | 1905260 | DRIVE BEARING DRIVE BEARING | 1 | |
| 62 | 8863079 | FASTENING RING FASTENING RING | 1 | |
| 63 | 8863078 | INPUT SHAFT INPUT SHAFT | 1 | |
| 64 | 8859095 | REVERSE GEAR REVERSE GEAR | 1 | |
| 65 | 8859466 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 66 | 17259070 | DOWEL PIN DOWEL PIN | 1 | |
| 67 | 8869117 | MAIN SHAFT MAIN SHAFT | 1 | |
| 68 | 99808066 | COUNTERSHAFT COUNTERSHAFT | 1 | |
| 69 | 17282481 | O-RING O-RING | 1 | |
| 81 | 8859221 | WORM WORM | 1 | |
| 82 | 1905241 | ROLLER CAGE ROLLER CAGE | 1 | |
| 83 | 8862479 | SPACING BAR SPACING BAR | 1 | |
| 86 | 1905271 | ROLLER CAGE ROLLER CAGE | 1 | |
| 87 | 8867446 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 88 | 8867115 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 89 | 8867447 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 90 | 8861583 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 91 | 1905397 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 |
