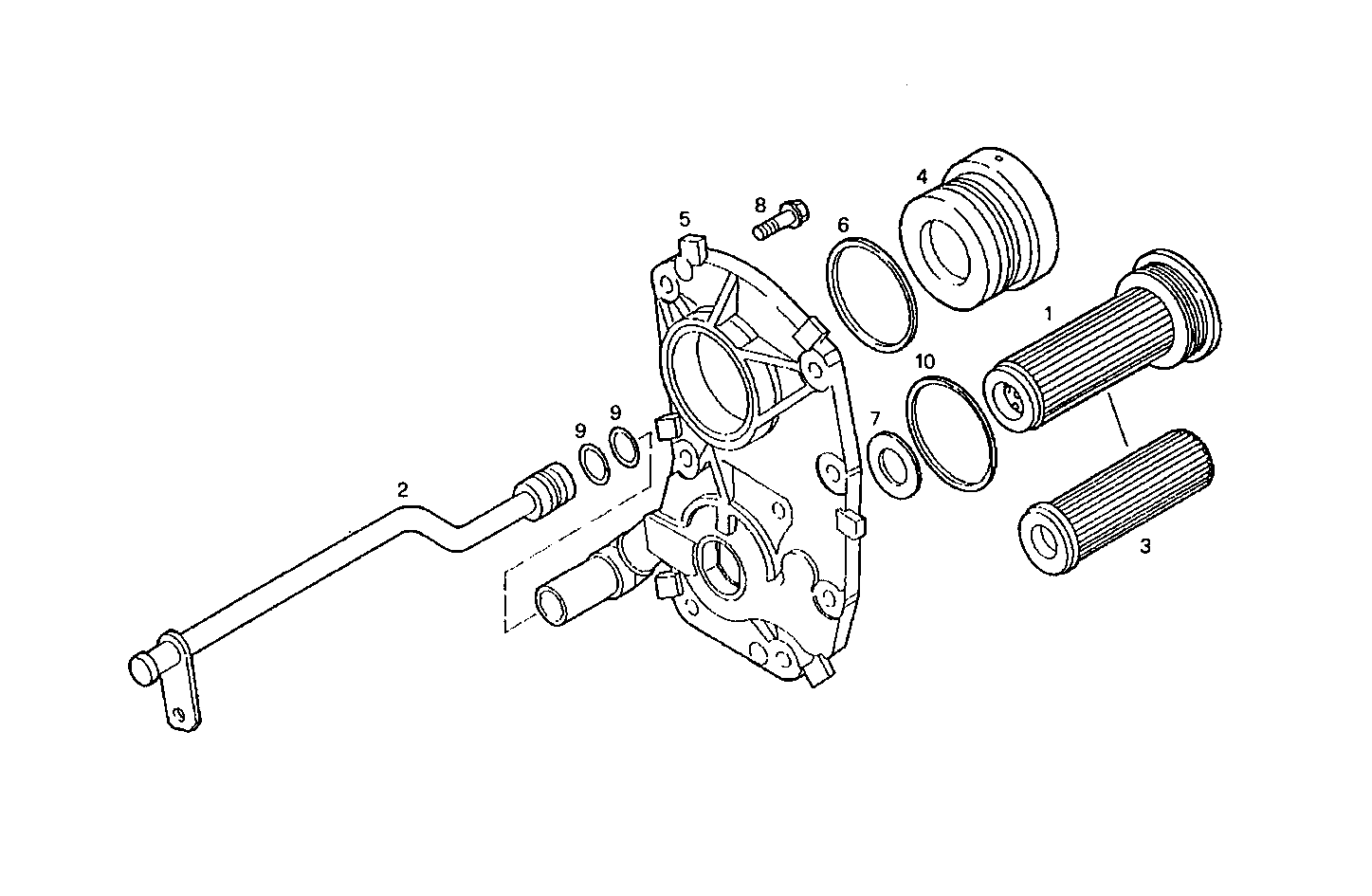

TRANSMISSION GROUP - 2870.9
8060SRC20.01 — 8060SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8859101 | FILTER FILTER | 1 | |
| 2 | 8859203 | HYDRAULIC LINE HYDRAULIC LINE | 1 | |
| 3 | 8859302 | G.BOX OILFILT.ELEM G.BOX OILFILT.ELEM | 1 | |
| 4 | 8859318 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 5 | 8859397 | OIL PUMP-GEAR BOX OIL PUMP-GEAR BOX | 1 | |
| 6 | 8860709 | WASHER WASHER | 2 | |
| 7 | 10296860 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 16587224 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 9 | 17281681 | O-RING O-RING | 1 | |
| 10 | 17281981 | O-RING O-RING | 1 |
