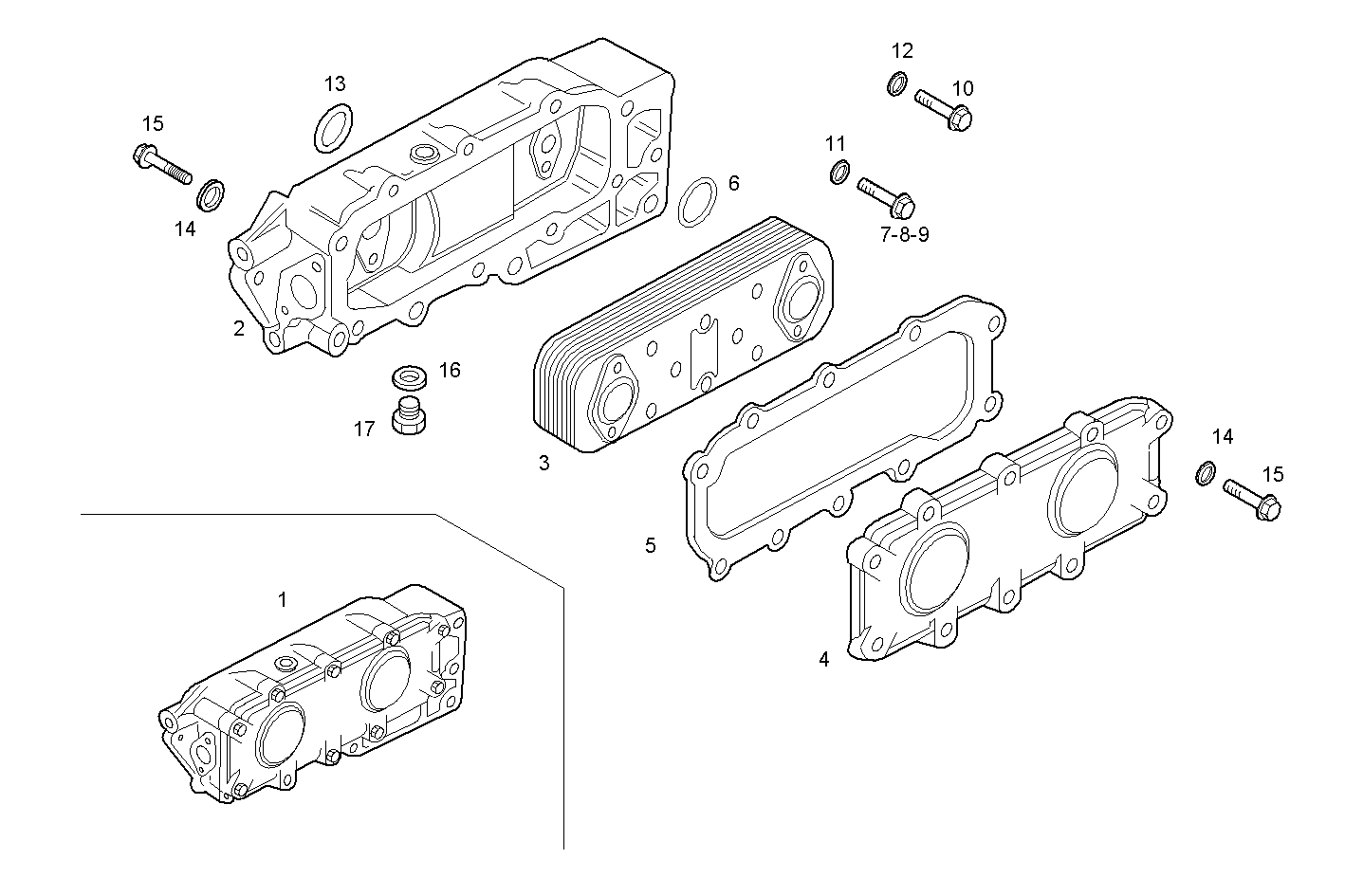

OIL - WATER HEAT EXCHANGER
8060SRC21.00 — 8060SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4848554 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 98478459 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 3 | 99435959 | OIL COOLER OIL COOLER | 1 | |
| 4 | 4843396 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 5 | 4843398 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 98465110 | O-RING O-RING | 2 | |
| 7 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16610924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16611124 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 15972224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17095304 | WASHER WASHER | 6 | |
| 12 | 12642501 | WASHER WASHER | 1 | |
| 13 | 17281981 | O-RING O-RING | 3 | |
| 14 | 17094914 | WASHER WASHER | 13 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 13 | |
| 16 | 98429280 | SEAL GASKET SEAL GASKET | 4 | |
| 17 | 10304911 | THREADED PLUG THREADED PLUG | 4 |
