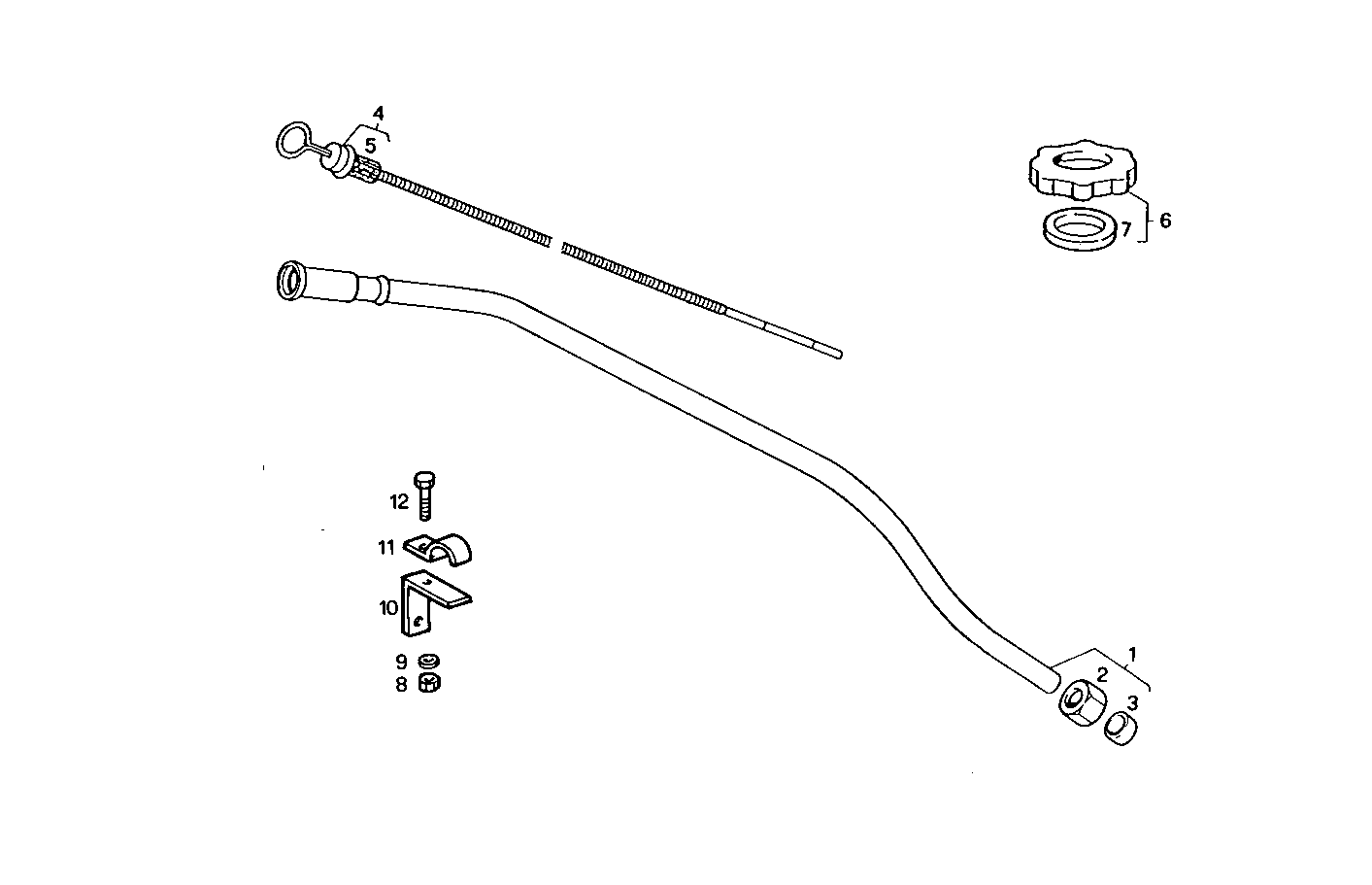

OIL DIPSTICK
8060SRC21.20 — 8060SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98497119 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 2 | 4641220 | NUT NUT | 1 | |
| 3 | 4641221 | RING RING | 1 | |
| 4 | 98456825 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 5 | 7300023 | RUBBER GASKET RUBBER GASKET | 1 | |
| 6 | 4232606 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 7 | 98418978 | GASKET GASKET | 1 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 4749133 | BRACKET BRACKET | 1 | |
| 11 | 17316699 | PIPE CLIP PIPE CLIP | 1 | |
| 12 | 16605424 | SCREW SCREW | 1 |
