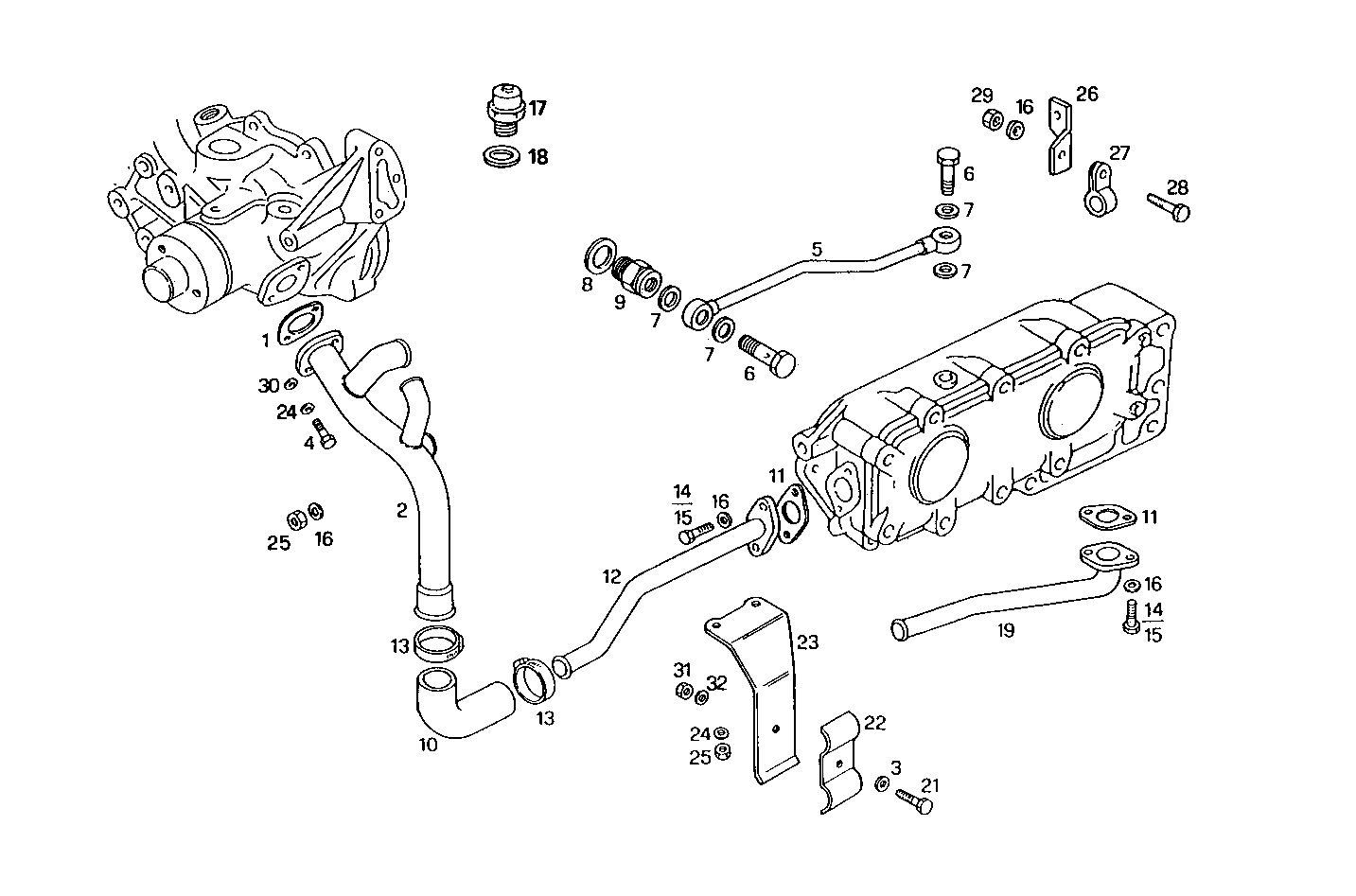

WATER LINES
8060SRC21.20 — 8060SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4852556 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 97496022 | WATER PIPE WATER PIPE | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 4 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 98445356 | WATER PIPE WATER PIPE | 1 | |
| 6 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 7 | 4858606 | GASKET GASKET | 4 | |
| 8 | 16508460 | WASHER WASHER | 1 | |
| 9 | 98445134 | THREADED UNION THREADED UNION | 1 | |
| 10 | 97496016 | WATER HOSE WATER HOSE | 1 | |
| 11 | 4779623 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 12 | 97496008 | WATER PIPE WATER PIPE | 1 | |
| 13 | 17764892 | PIPE CLIP PIPE CLIP | 2 | |
| 14 | 16606424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 16043724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 17 | 98453557 | THERMOSWITCH THERMOSWITCH | 1 | |
| 18 | 10280060 | WASHER WASHER | 1 | |
| 19 | 500367042 | WATER PIPE WATER PIPE | 1 | |
| 21 | 15970324 | SCREW SCREW | 1 | |
| 22 | 98418962 | PIPE CLIP PIPE CLIP | 1 | |
| 23 | 4801127 | RETAINER RETAINER | 1 | |
| 24 | 17094904 | WASHER WASHER | 2 | |
| 25 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 26 | 4795309 | RETAINER RETAINER | 1 | |
| 27 | 10449890 | PIPE CLIP PIPE CLIP | 1 | |
| 28 | 16605424 | SCREW SCREW | 1 | |
| 29 | 17042531 | HEXAGON NUT HEXAGON NUT | 1 | |
| 30 | 12646704 | WASHER WASHER | 2 | |
| 31 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 32 | 17095124 | WASHER WASHER | 1 |
