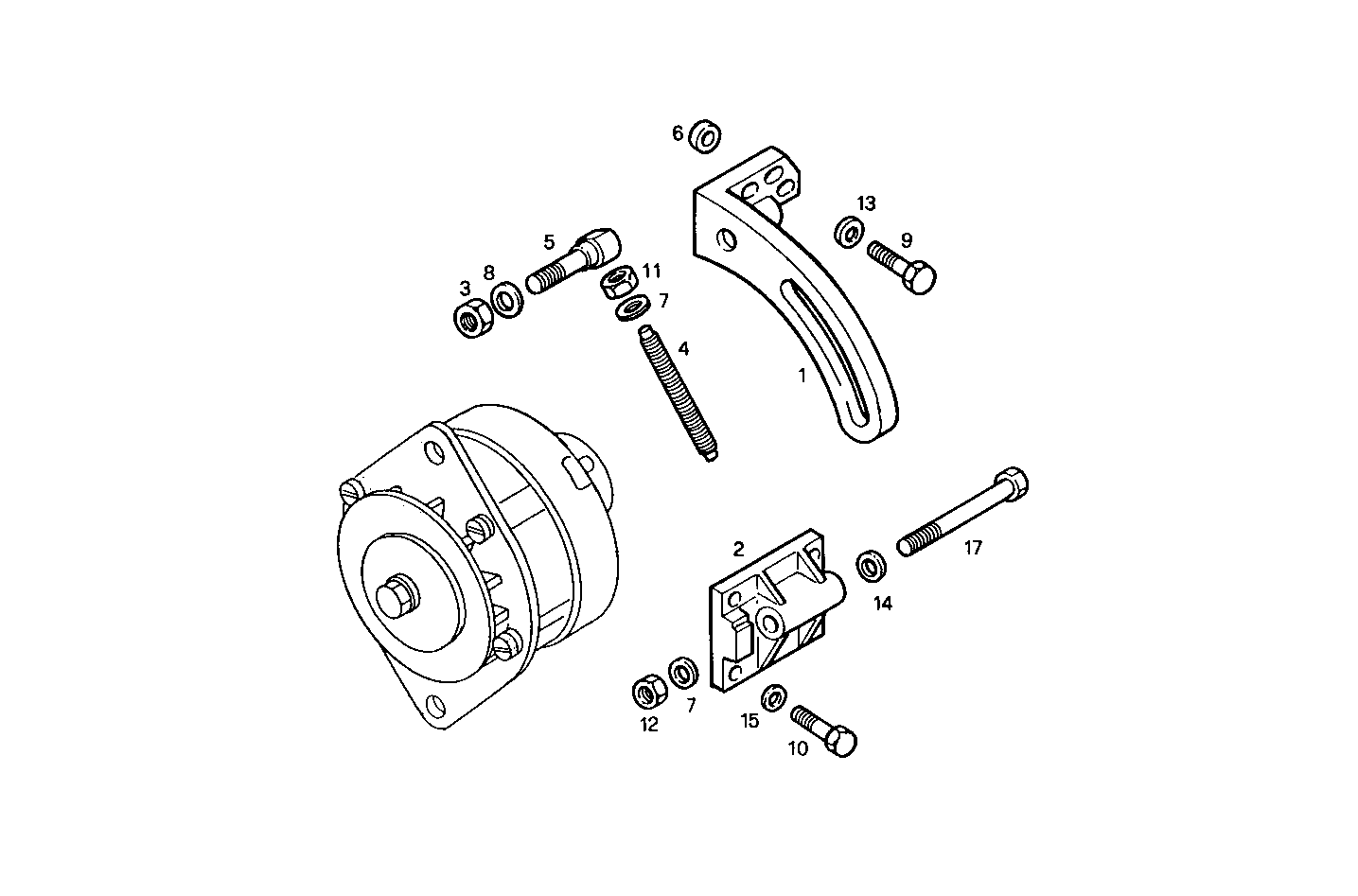

MOUNT
8060SRC22.20 — 8060SRC22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 97496006 | BELT TENSIONER BELT TENSIONER | 1 | |
| 2 | 4752922 | SUPPORT SUPPORT | 1 | |
| 3 | 17157521 | NUT NUT | 1 | |
| 4 | 4853921 | ADJUSTING SCREW ADJUSTING SCREW | 1 | |
| 5 | 4862246 | ADJUSTING SCREW ADJUSTING SCREW | 1 | |
| 6 | 12646721 | WASHER WASHER | 3 | |
| 7 | 12646901 | WASHER WASHER | 2 | |
| 8 | 12646921 | WASHER WASHER | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 10 | 16605724 | SCREW SCREW | 4 | |
| 11 | 16979731 | NUT NUT | 1 | |
| 12 | 17038621 | NUT NUT | 1 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 14 | 17091174 | SPRING WASHER SPRING WASHER | 1 | |
| 15 | 17094904 | WASHER WASHER | 4 | |
| 17 | 4604245 | HEXAGON BOLT HEXAGON BOLT | 1 |
