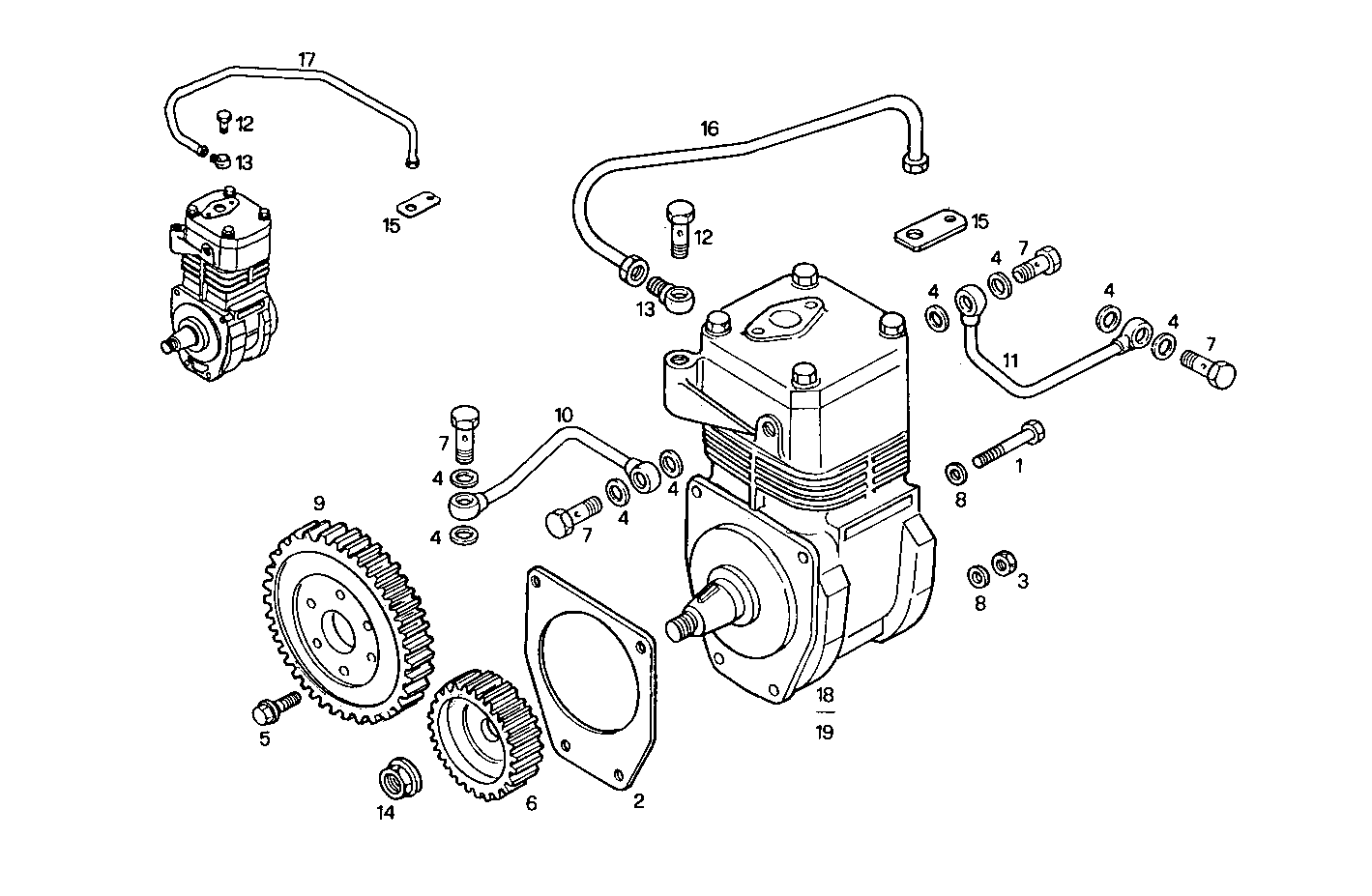

AIR COMPRESSOR
8060SRC23.10 — 8060SRC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 15971424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 2 | 500378762 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 4 | 4858609 | WASHER WASHER | 8 | |
| 5 | 98413884 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 6 | 98416784 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 7 | 4864084 | BANJO BOLT BANJO BOLT | 4 | |
| 8 | 17095014 | WASHER WASHER | 4 | |
| 9 | 98420180 | TIMING INTERM.GEA TIMING INTERM.GEA | 1 | |
| 10 | 98437262 | WATER PIPE WATER PIPE | 1 | |
| 11 | 98439130 | WATER PIPE WATER PIPE | 1 | |
| 12 | 98454664 | BANJO BOLT BANJO BOLT | 1 | |
| 13 | 98454675 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 14 | 98413776 | NUT NUT | 1 | |
| 15 | 98464423 | CONNECTING PLATE CONNECTING PLATE | 1 | |
| 16 | 98474658 | WATER PIPE WATER PIPE | 1 | |
| 17 | 98474659 | WATER PIPE WATER PIPE | 1 | |
| 18 | 500310905 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 19 | 500310901 | AIR COMPRESSOR AIR COMPRESSOR | 1 |
