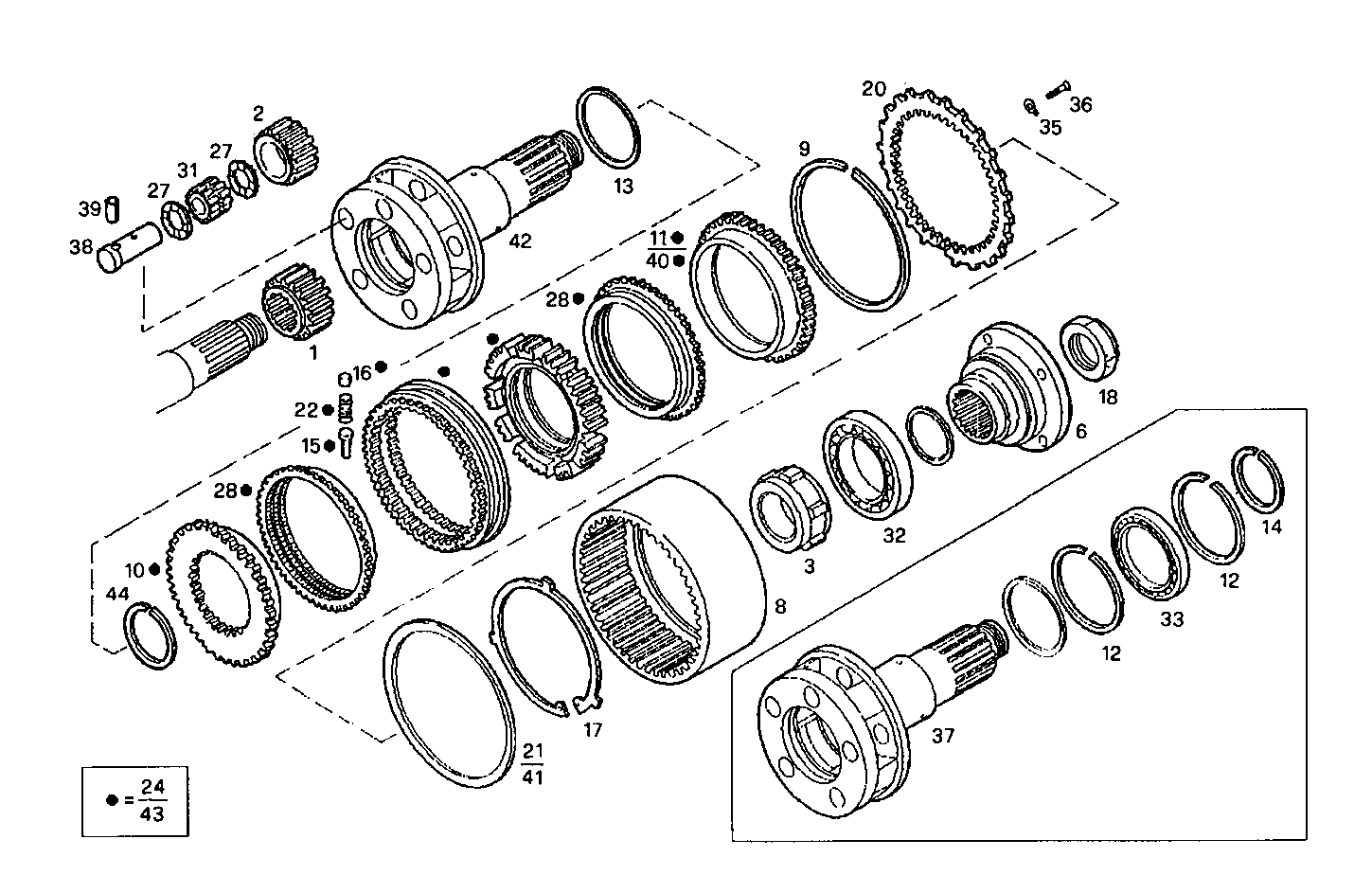

8060SRC23/8060SRC23.10/TRANSMISSION GROUP - 2870.9

TRANSMISSION GROUP - 2870.9

8060SRC23.10 — 8060SRC23

Parts List

#	Part No	Name / Description	Qty
1	8859096	G.BOX PLANET GEAR G.BOX PLANET GEAR	1
2	8859117	G.BOX SATELLITE G.BOX SATELLITE	5
3	8859272	GEARBOXINTERM.GEAR GEARBOXINTERM.GEAR	1
6	8859399	SHIFT SLEEVE SHIFT SLEEVE	1
8	8859834	G.BOX INT.RINGGEAR G.BOX INT.RINGGEAR	1
9	8859836	SPRING LOCKWASHER SPRING LOCKWASHER	1
10	8859906	SYNCHRONIZER SYNCHRONIZER	1
11	8859907	SYNCHRONIZER SYNCHRONIZER	1
12	8860341	SPRING LOCKWASHER SPRING LOCKWASHER	2
13	8860342	SPRING LOCKWASHER SPRING LOCKWASHER	1
14	8860344	SPRING LOCKWASHER SPRING LOCKWASHER	1
15	8860352	CONTROL PISTON CONTROL PISTON	9
16	8860355	PARALLEL ROLLER PARALLEL ROLLER	9
17	8860383	CIRCLIP CIRCLIP	1
18	8860553	HEXAGON NUT HEXAGON NUT	1
20	8860805	SYNCHRONIZER SYNCHRONIZER	1
21	8860808	RING RING	1
22	8860839	SPRING SPRING	8
24	8863029	SYNCHRONIZ.COMPLET SYNCHRONIZ.COMPLET	1
27	8863184	STOP WASHER STOP WASHER	10
28	8860802	SYNCHRONIZER SYNCHRONIZER	2
31	1905275	GEARBOX BEARINGS GEARBOX BEARINGS	1
32	1905276	GEARBOX BEARINGS GEARBOX BEARINGS	1
33	1905277	GEARBOX BEARINGS GEARBOX BEARINGS	1
35	8860848	WASHER WASHER	4
36	17344334	SCREW SCREW	4
37	8863722	G.BOX PLANET.CARR. G.BOX PLANET.CARR.	1
38	8863723	PIN PIN	5
39	17256870	DOWEL PIN DOWEL PIN	1
40	8867881	SYNCHRONIZER SYNCHRONIZER	1
41	8867882	RING RING	1
42	8867890	G.BOX PLANET.CARR. G.BOX PLANET.CARR.	1
43	8868412	SYNCHRONIZ.COMPLET SYNCHRONIZ.COMPLET	1
44	17855276	SPRING LOCKWASHER SPRING LOCKWASHER	1
