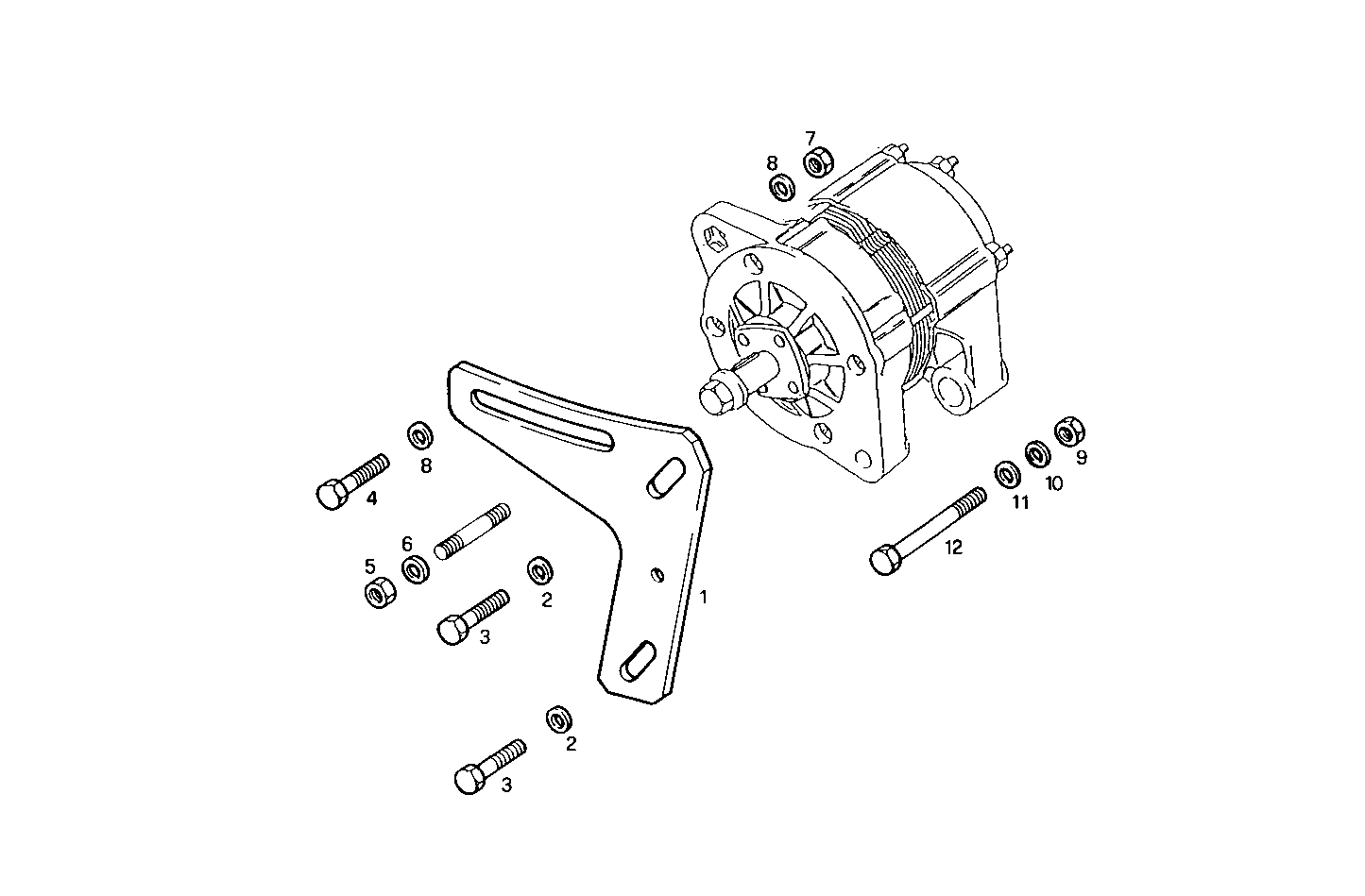

MOUNT
8060SRC23.20 — 8060SRC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4835999 | BELT TENSIONER BELT TENSIONER | 1 | |
| 2 | 17094901 | WASHER WASHER | 2 | |
| 3 | 16043321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 16979731 | NUT NUT | 1 | |
| 8 | 17095124 | WASHER WASHER | 2 | |
| 9 | 17038621 | NUT NUT | 1 | |
| 10 | 12646924 | WASHER WASHER | 1 | |
| 11 | 17091071 | SPRING WASHER SPRING WASHER | 1 | |
| 12 | 15543221 | HEXAGON BOLT HEXAGON BOLT | 1 |
