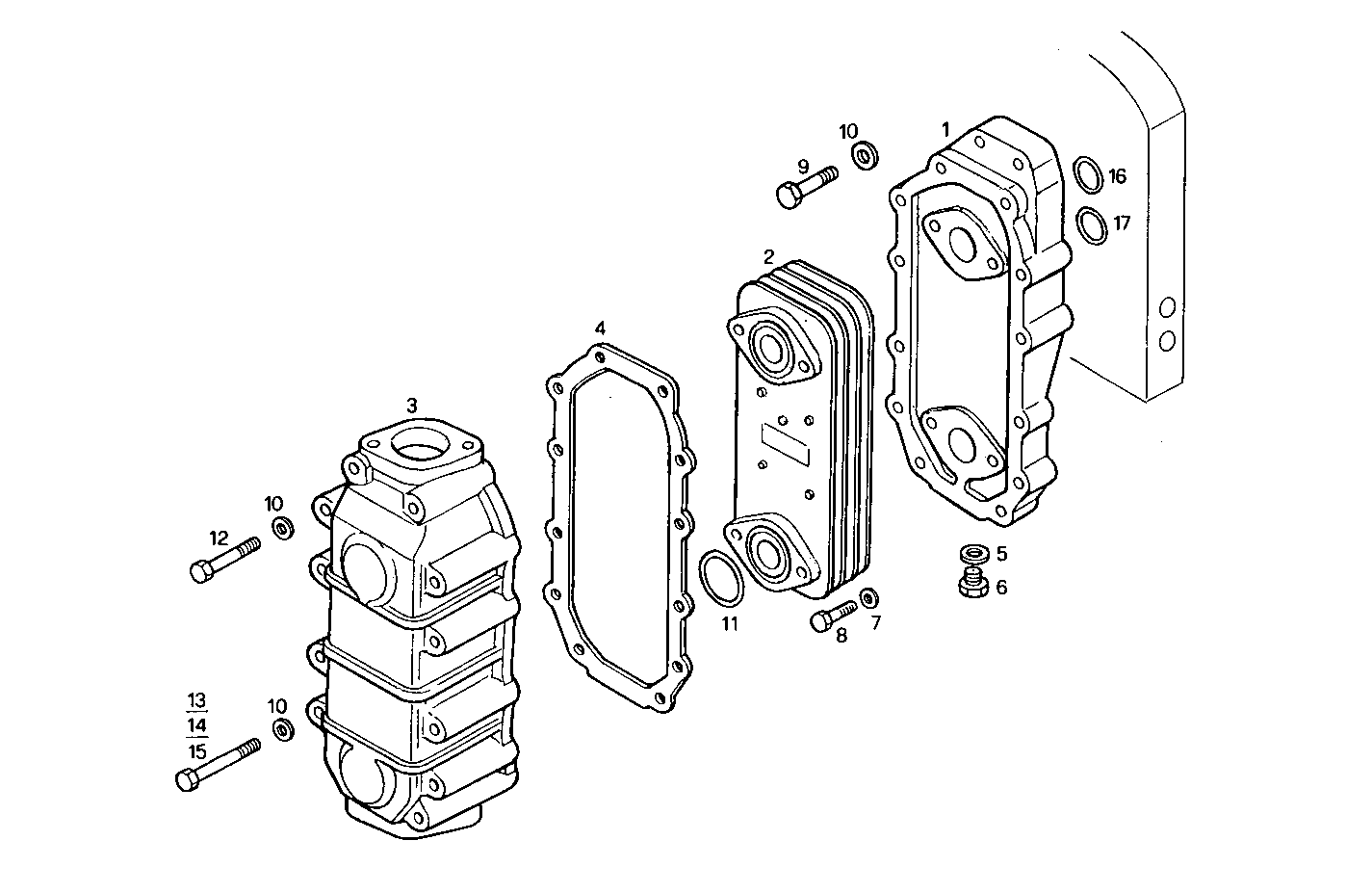

OIL - WATER HEAT EXCHANGER
8060SRC23.20 — 8060SRC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4830896 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 2 | 99435959 | OIL COOLER OIL COOLER | 1 | |
| 3 | 4831158 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 4 | 4850952 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 10263460 | WASHER WASHER | 1 | |
| 6 | 10305111 | LOCK PLUG LOCK PLUG | 1 | |
| 7 | 17094901 | WASHER WASHER | 4 | |
| 8 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 10519601 | WASHER WASHER | 14 | |
| 11 | 14458281 | O-RING O-RING | 2 | |
| 12 | 98428774 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 16044921 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 16045621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 16046321 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 14462981 | O-RING O-RING | 1 | |
| 17 | 14463181 | O-RING O-RING | 1 |
