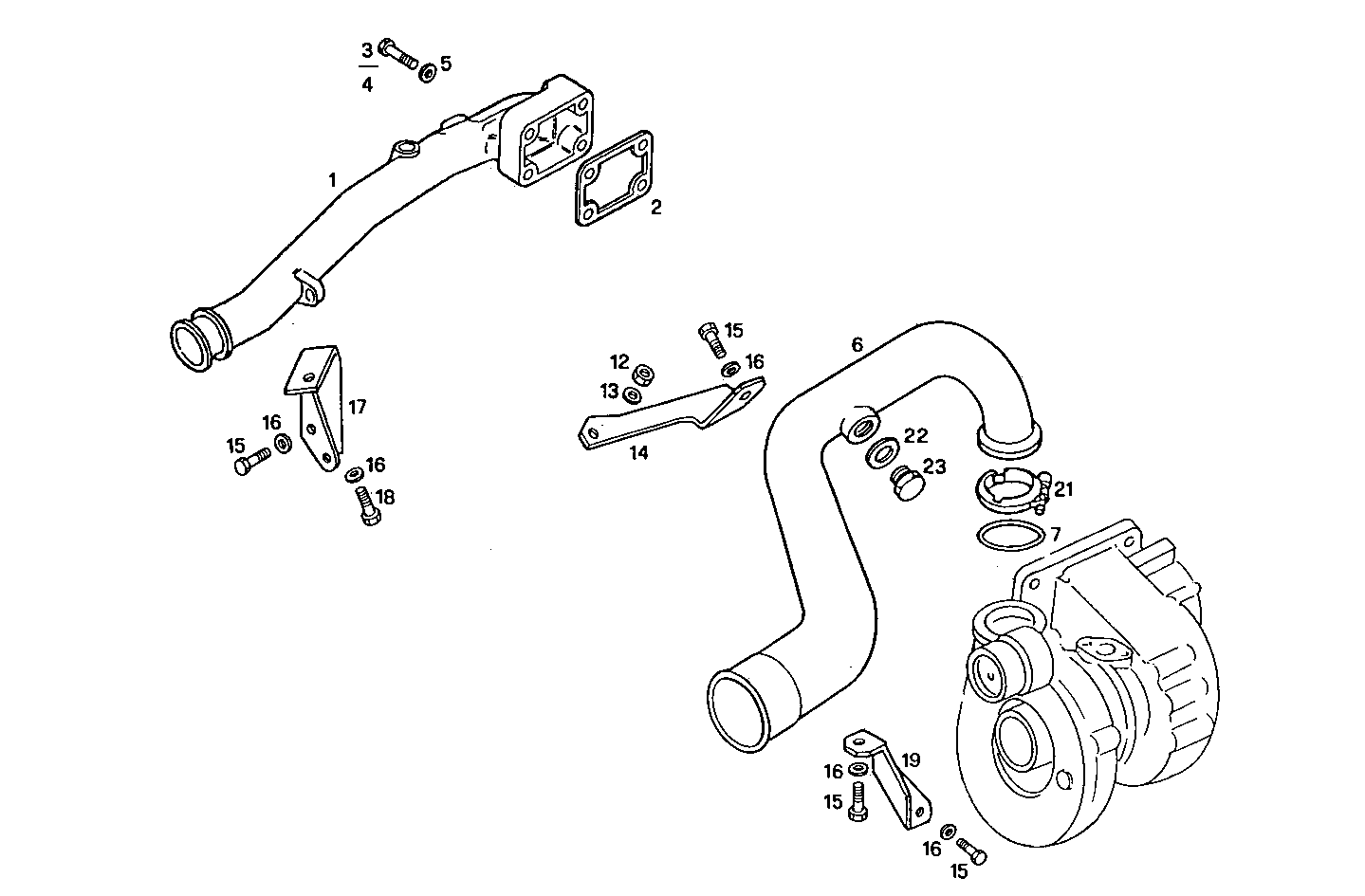

SUPERCHARGING LINES
8060SRC23.20 — 8060SRC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 93436521 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 2 | 99436925 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 11343724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 15971824 | SCREW SCREW | 2 | |
| 5 | 17095124 | WASHER WASHER | 4 | |
| 6 | 4843473 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 7 | 17283481 | O-RING O-RING | 1 | |
| 12 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 14 | 4843605 | RETAINER RETAINER | 1 | |
| 15 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 16 | 17089771 | WASHER WASHER | 6 | |
| 17 | 98413688 | RETAINER RETAINER | 1 | |
| 18 | 16043521 | SCREW SCREW | 1 | |
| 19 | 98413687 | RETAINER RETAINER | 1 | |
| 21 | 4843862 | CLIP CLIP | 1 | |
| 22 | 10265160 | SEAL GASKET SEAL GASKET | 1 | |
| 23 | 10276711 | THREADED PLUG THREADED PLUG | 1 |
