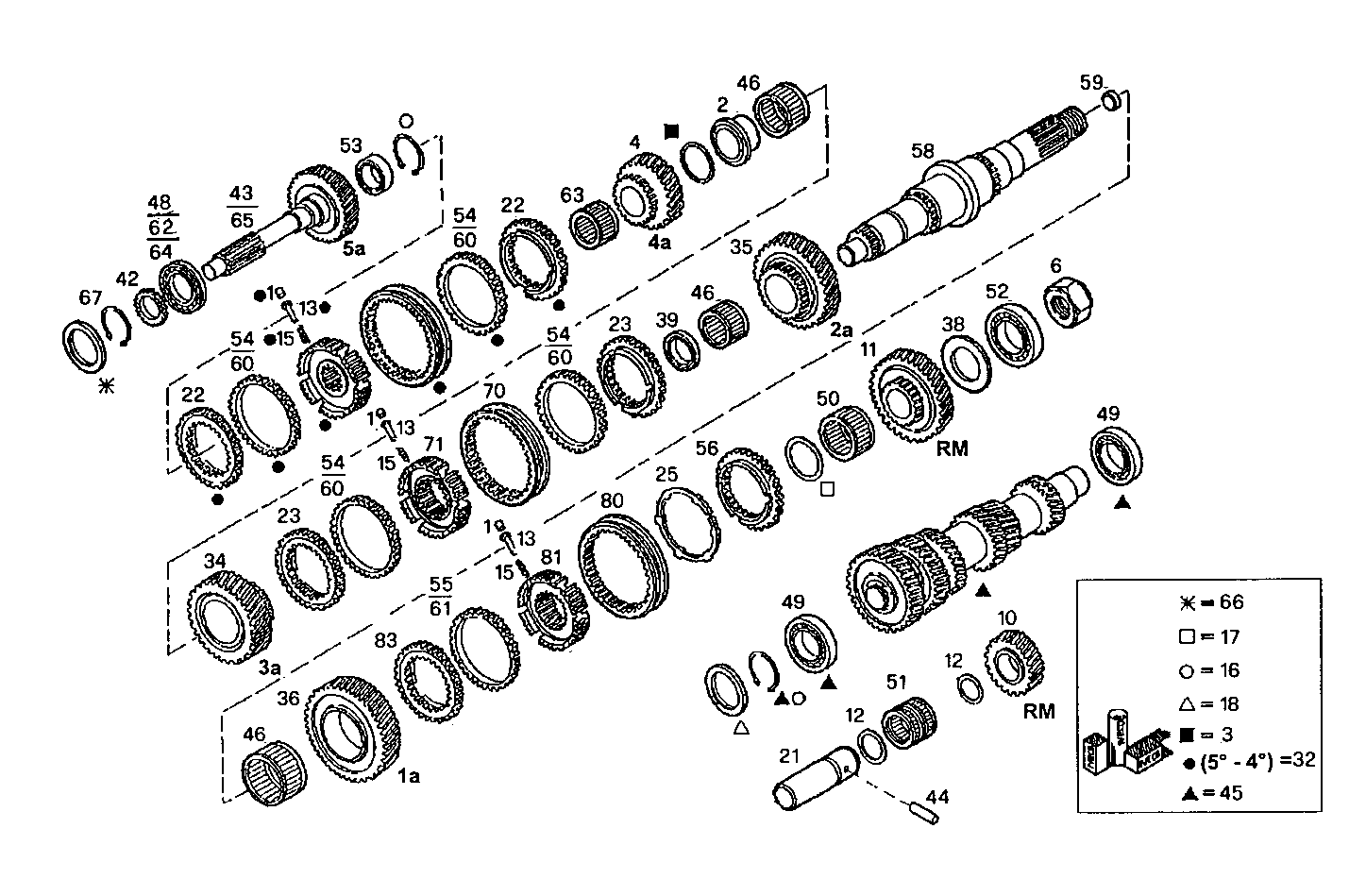

TRANSMISSION GROUP - 2870.9
8060SRC23.20 — 8060SRC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8856938 | PARALLEL ROLLER PARALLEL ROLLER | 9 | |
| 2 | 8859307 | BUSH BUSH | 1 | |
| 3 | 8859309 | SET OF SHIMS SET OF SHIMS | 1 | |
| 4 | 8859314 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 6 | 8859375 | NUT NUT | 1 | |
| 10 | 8859831 | REVERSE GEAR REVERSE GEAR | 1 | |
| 11 | 8859832 | REVERSE GEAR REVERSE GEAR | 1 | |
| 12 | 8860343 | STOP WASHER STOP WASHER | 2 | |
| 13 | 8860354 | CONTROL PISTON CONTROL PISTON | 9 | |
| 15 | 8860357 | SPRING SPRING | 9 | |
| 16 | 8860774 | SHIM SHIM | 1 | |
| 17 | 8860775 | REVERSE GEAR REVERSE GEAR | 1 | |
| 18 | 8860777 | SET OF SHIMS SET OF SHIMS | 1 | |
| 21 | 8861569 | RETURN SHAFT RETURN SHAFT | 1 | |
| 22 | 8861580 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 23 | 8861581 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 25 | 8861596 | RING RING | 1 | |
| 32 | 8861961 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 34 | 8861966 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 35 | 8861967 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 36 | 8861968 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 38 | 8862587 | STOP WASHER STOP WASHER | 1 | |
| 39 | 8862589 | SPACING BAR SPACING BAR | 1 | |
| 42 | 8863138 | FASTENING RING FASTENING RING | 1 | |
| 43 | 8863189 | INPUT SHAFT INPUT SHAFT | 1 | |
| 44 | 17259070 | DOWEL PIN DOWEL PIN | 1 | |
| 45 | 99808072 | COUNTERSHAFT COUNTERSHAFT | 1 | |
| 46 | 1905241 | ROLLER CAGE ROLLER CAGE | 3 | |
| 48 | 1905250 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 49 | 1905252 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 50 | 1905253 | ROLLER CAGE ROLLER CAGE | 1 | |
| 51 | 1905254 | ROLLER CAGE ROLLER CAGE | 2 | |
| 52 | 1905260 | DRIVE BEARING DRIVE BEARING | 1 | |
| 53 | 1905270 | ROLLER CAGE ROLLER CAGE | 1 | |
| 54 | 8863330 | SYNCHRONIZER SYNCHRONIZER | 4 | |
| 55 | 8863331 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 56 | 8860415 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 58 | 8859306 | MAIN SHAFT MAIN SHAFT | 1 | |
| 59 | 8859352 | PLUG PLUG | 1 | |
| 60 | 8867446 | SYNCHRONIZER SYNCHRONIZER | 4 | |
| 61 | 8867447 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 62 | 99431569 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 63 | 1905242 | ROLLER CAGE ROLLER CAGE | 1 | |
| 64 | 1905490 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 65 | 8868351 | INPUT SHAFT INPUT SHAFT | 1 | |
| 66 | 8868335 | SET OF SHIMS SET OF SHIMS | 1 | |
| 67 | 16868373 | CIRCLIP CIRCLIP | 1 | |
| 70 | 8861673 | SLIDING SLEEVE SLIDING SLEEVE | 1 | |
| 71 | 8861677 | GEAR BOX HUB GEAR BOX HUB | 1 | |
| 80 | 8861848 | SLIDING SLEEVE SLIDING SLEEVE | 1 | |
| 81 | 8860334 | GEAR BOX HUB GEAR BOX HUB | 1 | |
| 83 | 8859880 | SYNCHRONIZER SYNCHRONIZER | 1 |
