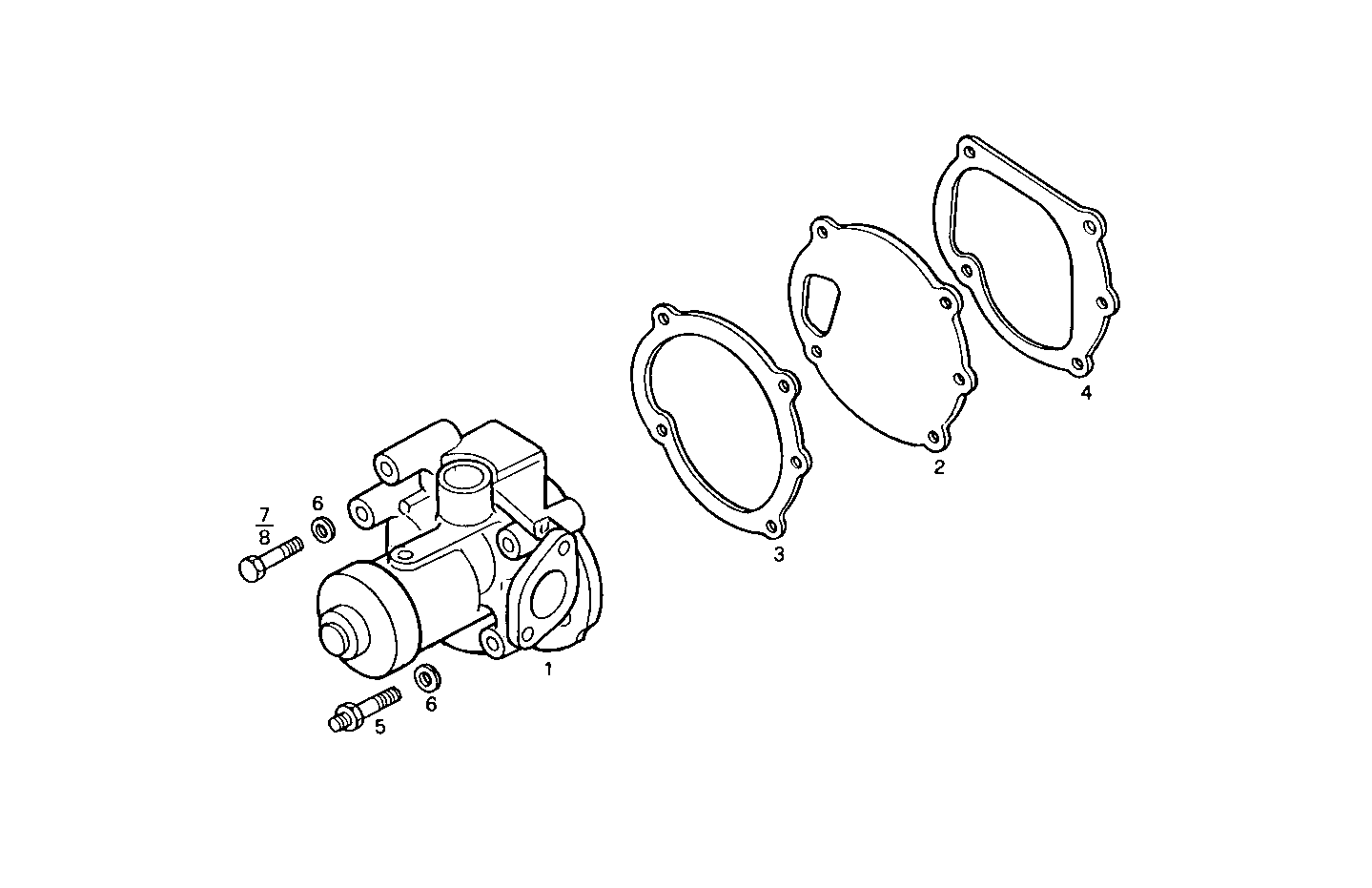

WATER PUMP
8060SRC23.20 — 8060SRC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4838676 | WATER PUMP WATER PUMP | 1 | |
| 2 | 4834983 | COVER COVER | 1 | |
| 3 | 4850954 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4850955 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 98428720 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 5 | |
| 7 | 15971424 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 8 | 15971624 | HEXAGON BOLT HEXAGON BOLT | 1 |
