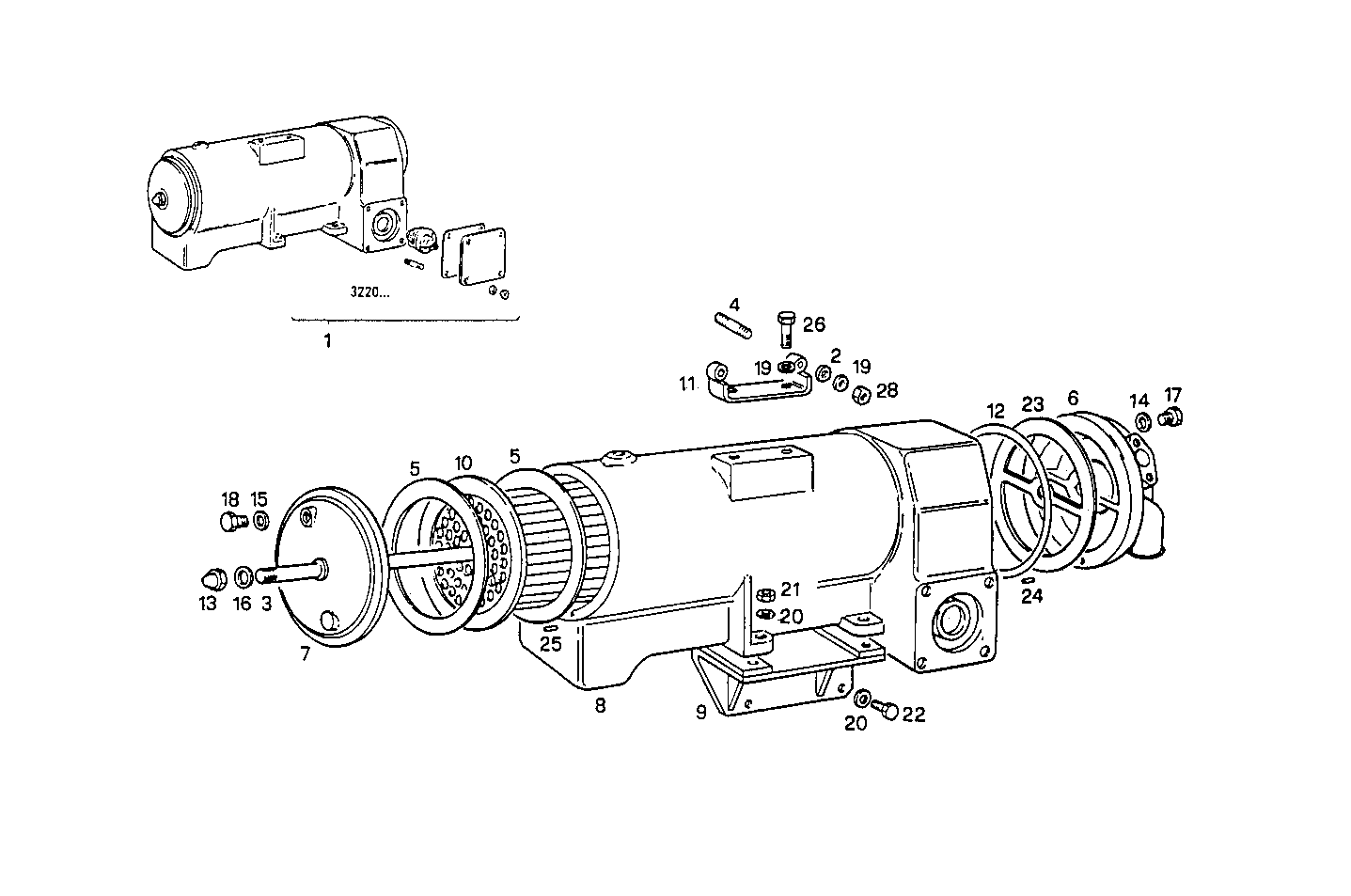

FRESH WATER - SEA WATER HEAT EXCHANGER
8060SRM25.10 — 8060SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006757 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 2 | 16665504 | WASHER WASHER | 2 | |
| 3 | 4918908 | TIE ROD TIE ROD | 1 | |
| 4 | 8007717 | STUD STUD | 2 | |
| 5 | 4930157 | GASKET GASKET | 2 | |
| 6 | 8005450 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 7 | 8005424 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 8 | 8006666 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 9 | 8100252 | SUPPORT SUPPORT | 1 | |
| 10 | 4929632 | TUBE STACK TUBE STACK | 1 | |
| 11 | 8006075 | RETAINER RETAINER | 1 | |
| 12 | 4918846 | O-RING O-RING | 1 | |
| 13 | 14056240 | NUT NUT | 1 | |
| 14 | 4858609 | WASHER WASHER | 1 | |
| 15 | 4858606 | GASKET GASKET | 1 | |
| 16 | 4858607 | WASHER WASHER | 1 | |
| 17 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 18 | 11903140 | PLUG PLUG | 1 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 20 | 17090174 | SPRING WASHER SPRING WASHER | 7 | |
| 21 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 22 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 23 | 4927193 | GASKET GASKET | 1 | |
| 24 | 17253670 | PIN PIN | 1 | |
| 25 | 17253870 | PIN PIN | 1 | |
| 26 | 16605424 | SCREW SCREW | 2 | |
| 28 | 17787321 | NUT NUT | 2 |
