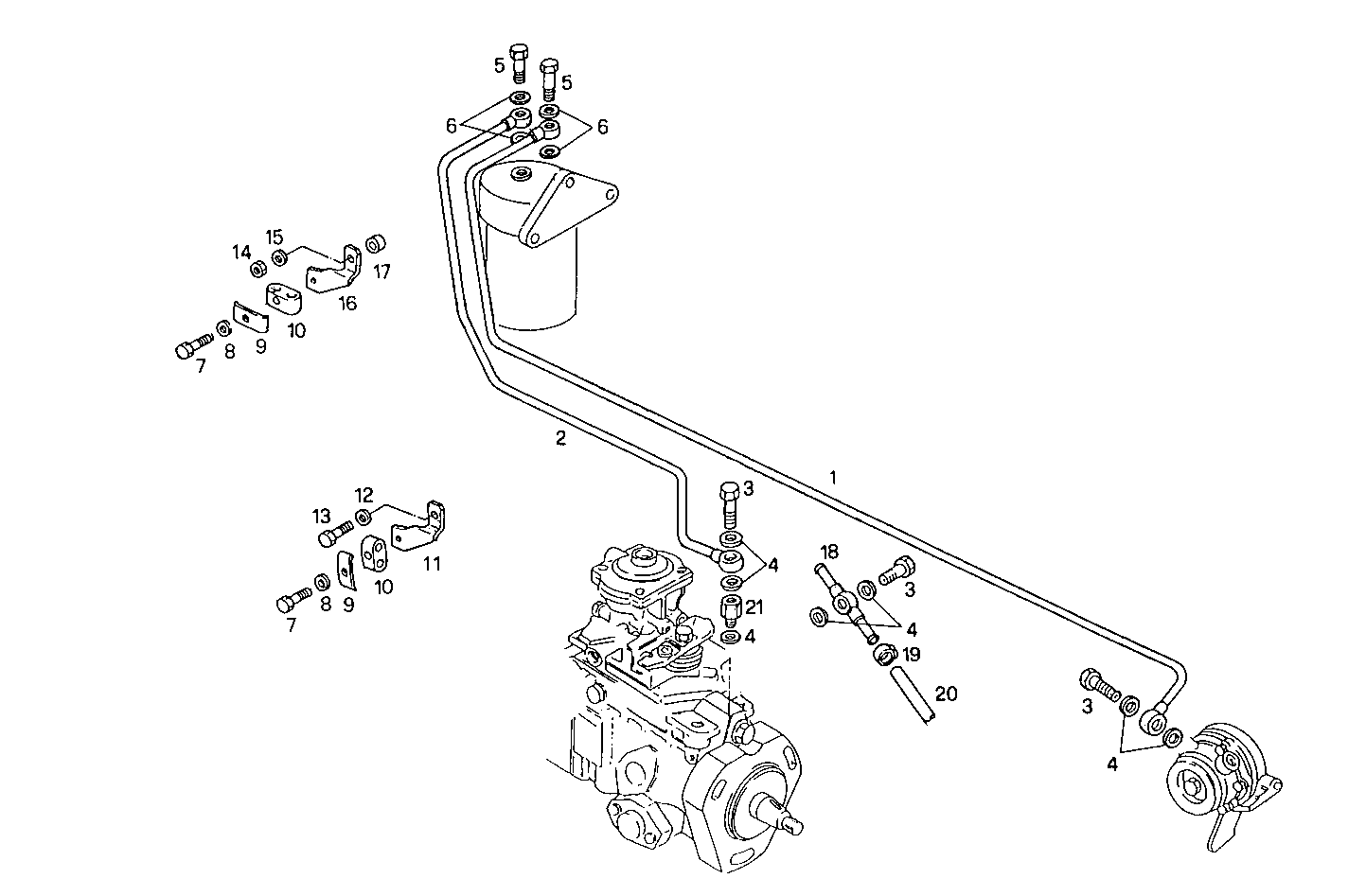

FUEL LINES
8060SRM25.10 — 8060SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8029051 | FUEL LINE FUEL LINE | 1 | |
| 2 | 8029052 | FUEL LINE FUEL LINE | 1 | |
| 3 | 4864082 | BANJO BOLT BANJO BOLT | 3 | |
| 4 | 4858607 | WASHER WASHER | 7 | |
| 5 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 6 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 7 | 16602324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17800274 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 4659218 | CLIP CLIP | 2 | |
| 10 | 4659217 | DOWEL DOWEL | 2 | |
| 11 | 8029352 | RETAINER RETAINER | 1 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 13 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 16 | 500334222 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 17 | 8104719 | SPACING BAR SPACING BAR | 1 | |
| 18 | 4775496 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 18088392 | CLIP CLIP | 1 | |
| 20 | 8006636 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 21 | 4802434 | THREADED UNION THREADED UNION | 1 | |
| 22 | 8034095 | PIPE SOCKET PIPE SOCKET | 1 |
