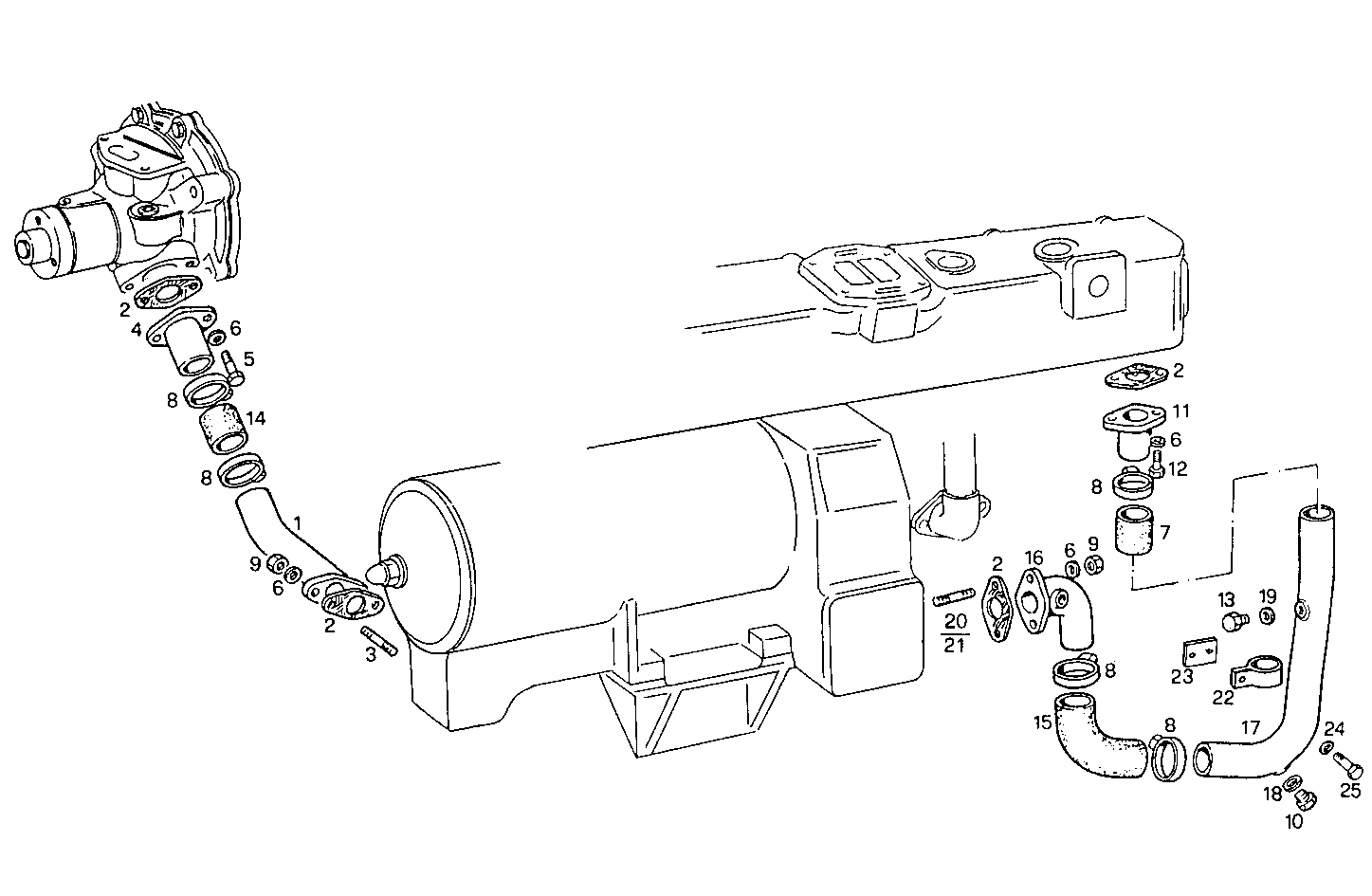

WATER LINES
8060SRM25.10 — 8060SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006691 | WATER PIPE WATER PIPE | 1 | |
| 2 | 98418621 | GASKET GASKET | 4 | |
| 3 | 16729324 | STUD STUD | 2 | |
| 4 | 4772995 | WATER PIPE WATER PIPE | 1 | |
| 5 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17094914 | WASHER WASHER | 8 | |
| 7 | 4927830 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 8 | 17764793 | CLIP CLIP | 6 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 11903140 | PLUG PLUG | 1 | |
| 11 | 8100081 | WATER PIPE WATER PIPE | 1 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 14 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 15 | 4644083 | WATER HOSE WATER HOSE | 1 | |
| 16 | 8005662 | WATER PIPE WATER PIPE | 1 | |
| 17 | 8006642 | WATER PIPE WATER PIPE | 1 | |
| 18 | 4858606 | GASKET GASKET | 1 | |
| 19 | 4858609 | WASHER WASHER | 1 | |
| 20 | 16729924 | STUD STUD | 1 | |
| 21 | 13516921 | STUD STUD | 1 | |
| 22 | 4936741 | CLIP CLIP | 1 | |
| 23 | 8107203 | RETAINER RETAINER | 1 | |
| 24 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 25 | 16605424 | SCREW SCREW | 1 |
