MARINE GEAR TECHNODRIVE TM 170
8060SRM25.11 — 8060SRM25

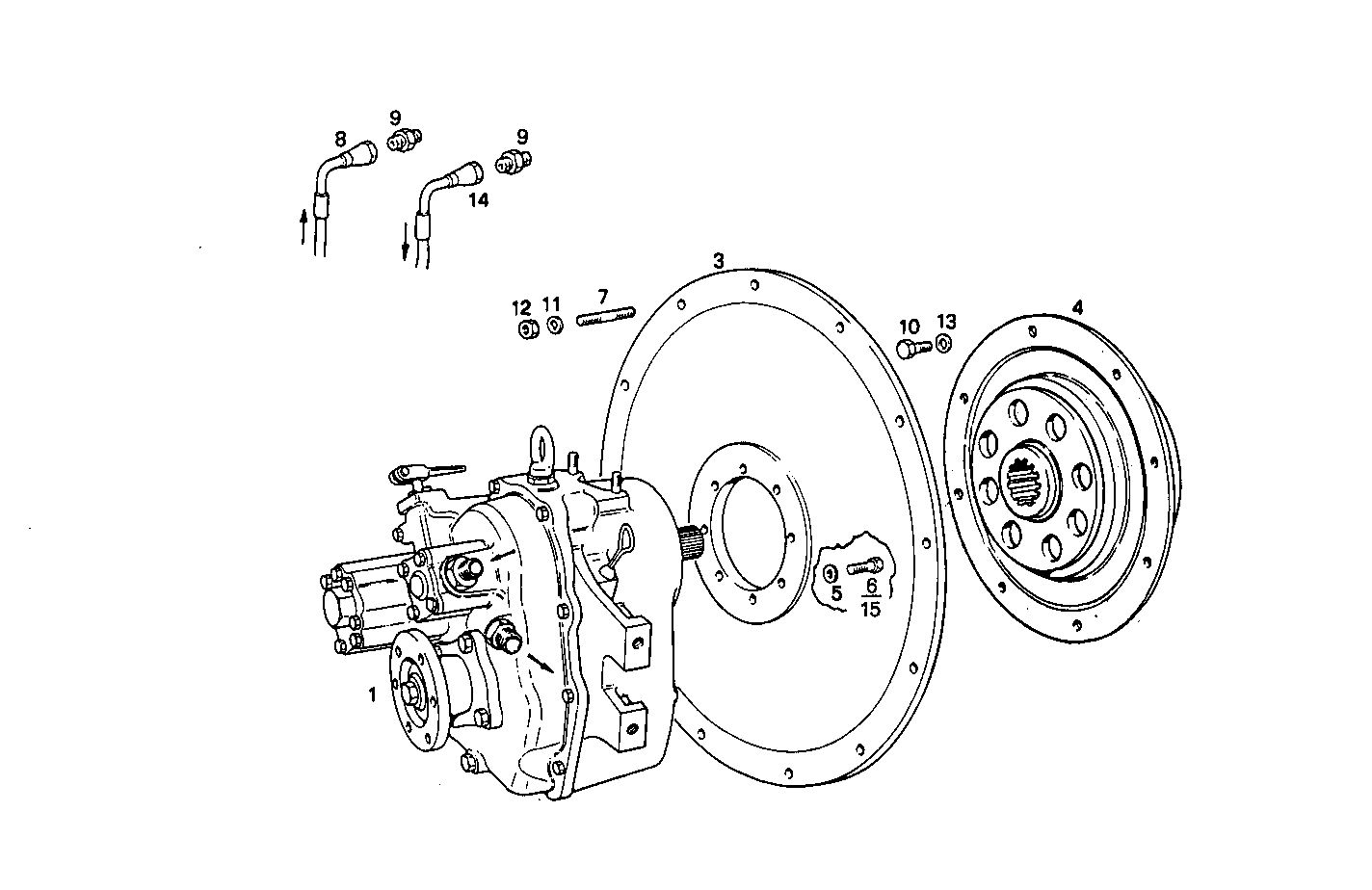

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019195 | MARINE GEAR MARINE GEAR | 1 | |
| 3 | 8019193 | FLANGE FLANGE | 1 | |
| 4 | 8019065 | FLEXPLATE FLEXPLATE | 1 | |
| 5 | 17091074 | WASHER WASHER | 8 | |
| 6 | 16610024 | SCREW SCREW | 6 | |
| 7 | 13449521 | STUD STUD | 12 | |
| 8 | 4935779 | HOSE HOSE | 1 | |
| 9 | 8101073 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 11306921 | SCREW SCREW | 8 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 12 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 13 | 17095004 | WASHER WASHER | 8 | |
| 14 | 8105620 | HOSE HOSE | 1 | |
| 15 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 2 |
