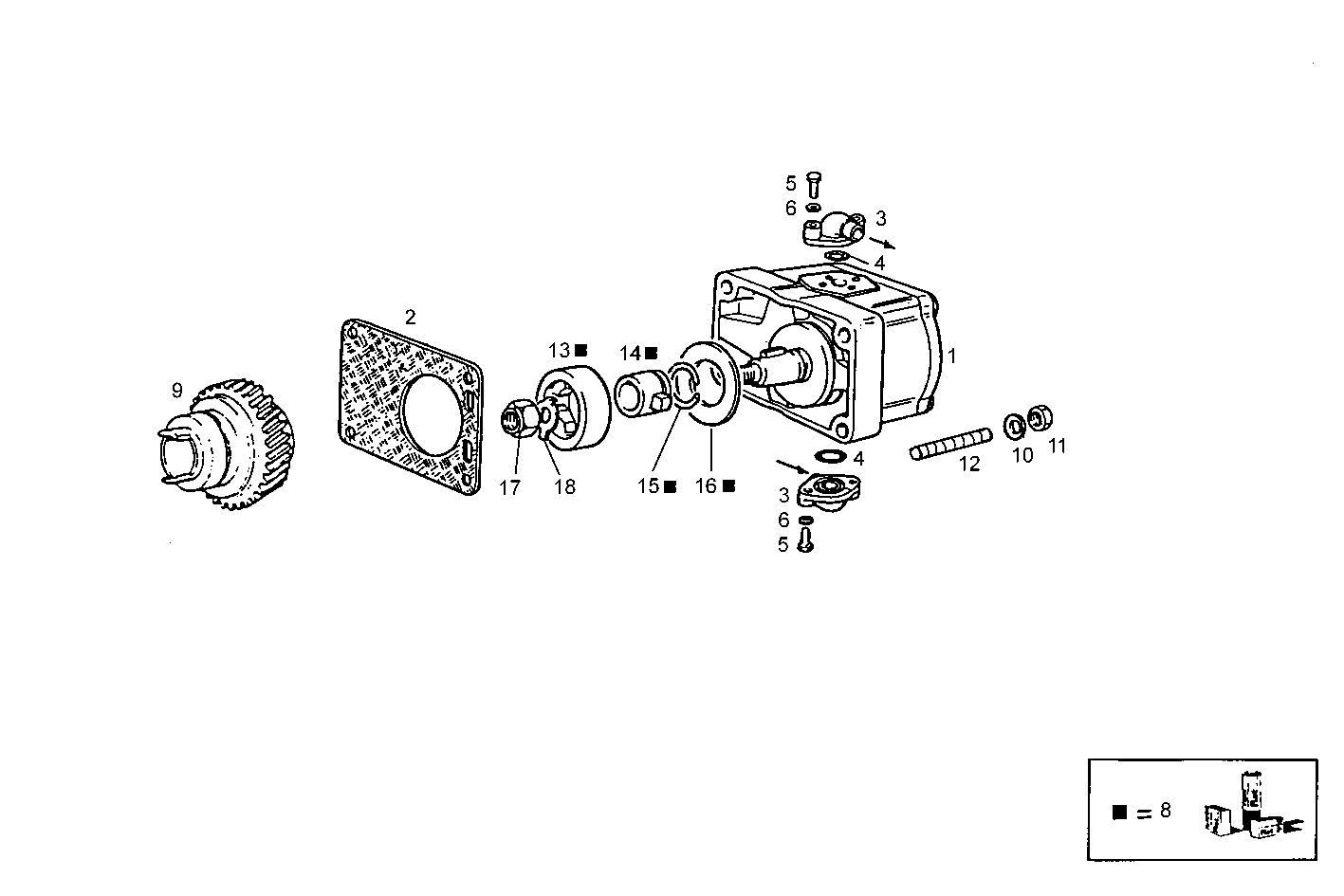

REAR HYDRAULIC PUMP
8060SRM25.11 — 8060SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 5179724 | HYDRAULIC PUMP HYDRAULIC PUMP | 1 | |
| 2 | 500378759 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4670953 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 17281781 | O-RING O-RING | 2 | |
| 5 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 | |
| 6 | 17088474 | WASHER WASHER | 4 | |
| 8 | 8090343 | KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP | 1 | |
| 9 | 4784432 | SHAFT SHAFT | 1 | |
| 10 | 17094724 | WASHER WASHER | 4 | |
| 11 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 4615276 | STUD STUD | 4 | |
| 13 | 4621358 | RING RING | 1 | |
| 14 | 8011614 | HUB HUB | 1 | |
| 15 | 17082776 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 16 | 4609538 | CENTERING RING CENTERING RING | 1 | |
| 17 | 8273919 | NUT NUT | 1 | |
| 18 | 8273920 | WASHER WASHER | 1 |
