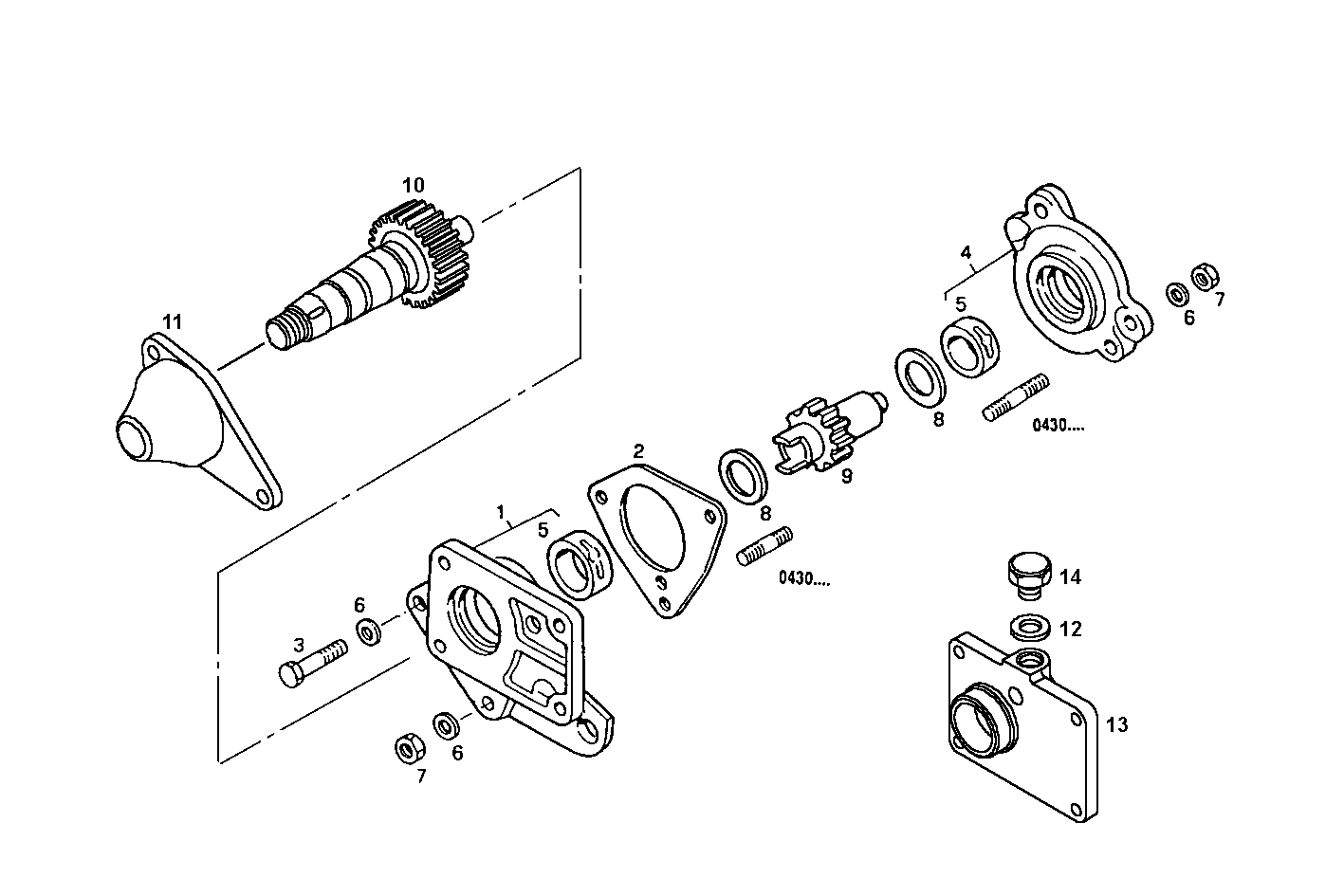

POWER TAKE OFF
8060SRM33.10 — 8060SRM33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4755239 | SUPPORT SUPPORT | 1 | |
| 2 | 4851004 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16606424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 4769593 | SUPPORT SUPPORT | 1 | |
| 5 | 4788087 | BUSH BUSH | 2 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 7 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 8 | 4667452 | SUPPORT RING SUPPORT RING | 2 | |
| 9 | 99474061 | SHAFT SHAFT | 1 | |
| 10 | 8020303 | POWER TAKE OFF SHAFT POWER TAKE OFF SHAFT | 1 | |
| 11 | 4919290 | PROTECTION PROTECTION | 1 | |
| 12 | 4858609 | WASHER WASHER | 1 | |
| 13 | 4607687 | SUPPORT SUPPORT | 1 | |
| 14 | 16992411 | THREADED PLUG THREADED PLUG | 1 |
