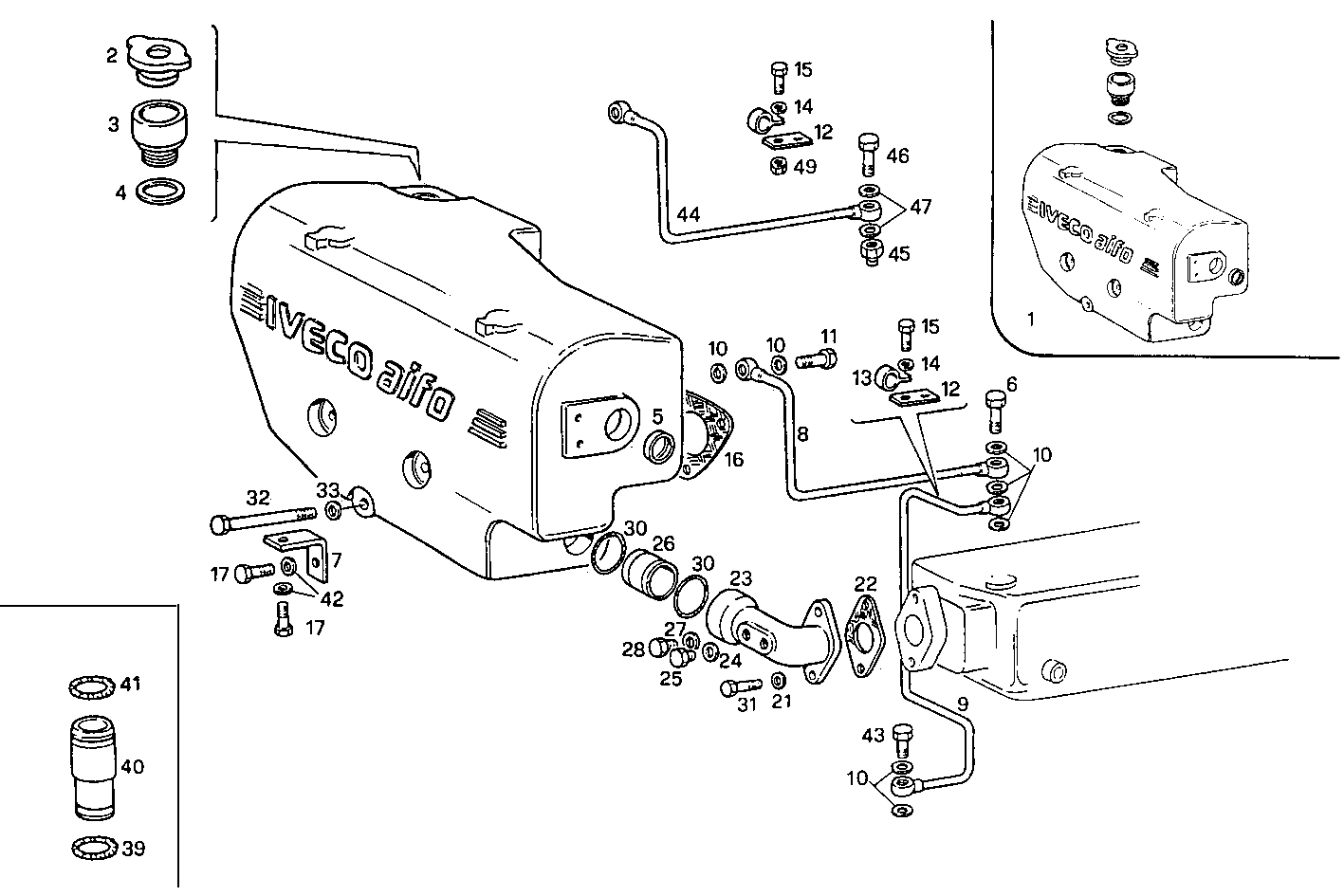

WATER LINES
8060SRM33.10 — 8060SRM33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8007139 | WATER EXPANSION TANK WATER EXPANSION TANK | 1 | |
| 2 | 4930462 | PLUG PLUG | 1 | |
| 3 | 8102030 | FILLER NECK FILLER NECK | 1 | |
| 4 | 10265360 | SEAL GASKET SEAL GASKET | 1 | |
| 5 | 16991170 | LOCK PLUG LOCK PLUG | 3 | |
| 6 | 8012607 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 7 | 8007133 | RETAINER RETAINER | 1 | |
| 8 | 8011617 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8011618 | WATER PIPE WATER PIPE | 1 | |
| 10 | 98474306 | WASHER WASHER | 8 | |
| 11 | 8016191 | BANJO BOLT BANJO BOLT | 1 | |
| 12 | 8107203 | RETAINER RETAINER | 3 | |
| 13 | 4936741 | CLIP CLIP | 1 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 16605424 | SCREW SCREW | 3 | |
| 16 | 4851926 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 17 | 16043324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 21 | 17094914 | WASHER WASHER | 2 | |
| 22 | 8009640 | GASKET GASKET | 1 | |
| 23 | 8007096 | WATER PIPE WATER PIPE | 1 | |
| 24 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 25 | 16992340 | THREADED PLUG THREADED PLUG | 2 | |
| 26 | 8007092 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 27 | 4858609 | WASHER WASHER | 1 | |
| 28 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 30 | 17289581 | O-RING O-RING | 2 | |
| 31 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 32 | 15972621 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 33 | 17095014 | WASHER WASHER | 3 | |
| 39 | 17288681 | O-RING O-RING | 1 | |
| 40 | 98415712 | PIPE SOCKET PIPE SOCKET | 1 | |
| 41 | 17282281 | O-RING O-RING | 1 | |
| 42 | 17089774 | SPRING WASHER SPRING WASHER | 2 | |
| 43 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 44 | 8019571 | WATER PIPE WATER PIPE | 1 | |
| 45 | 4927358 | PIPE SOCKET PIPE SOCKET | 1 | |
| 46 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 47 | 98474305 | WASHER WASHER | 2 | |
| 48 | 4804122 | CLIP CLIP | 2 | |
| 49 | 16979431 | NUT NUT | 2 |
