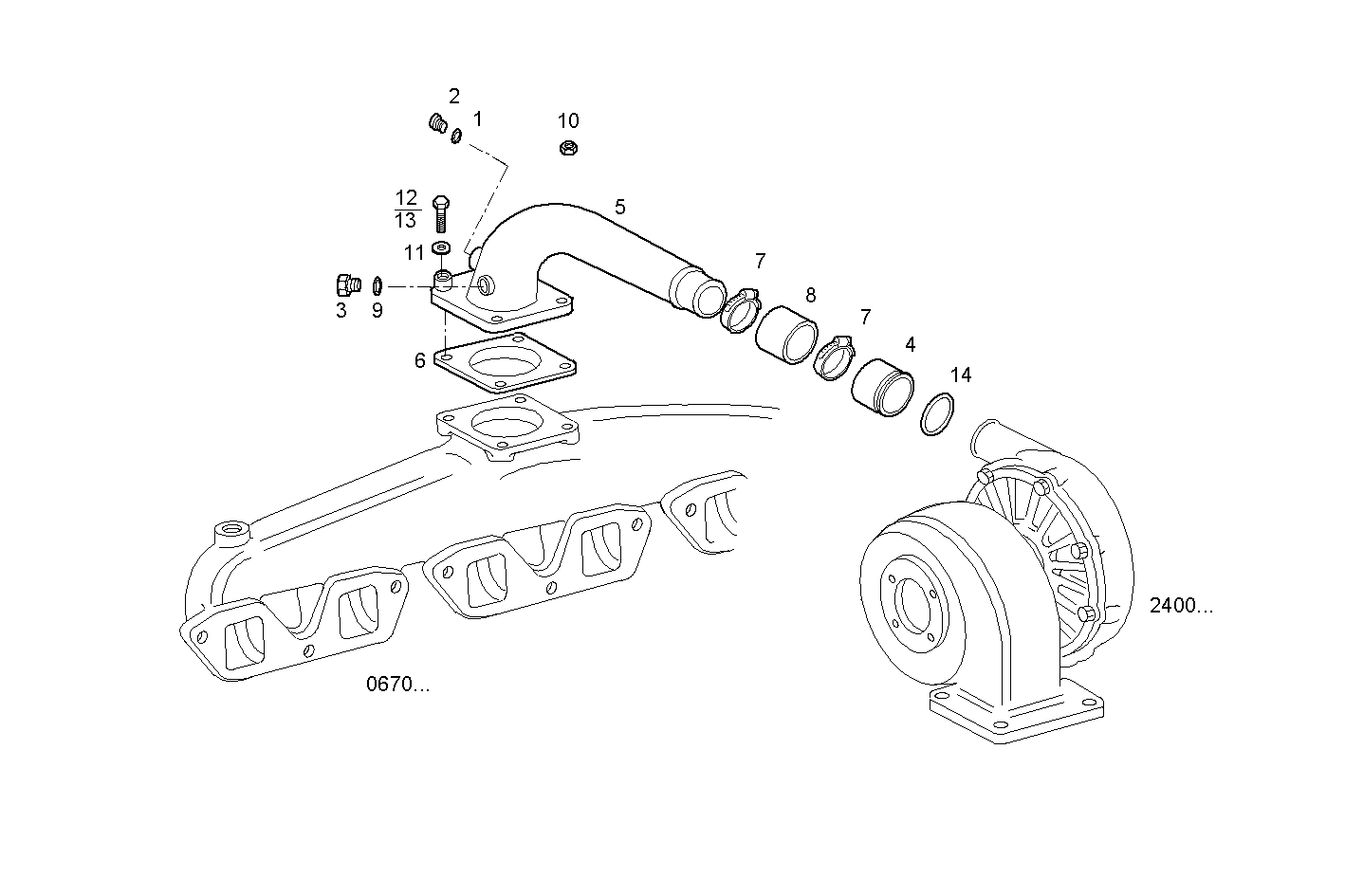

SUPERCHARGING LINES
8061.25.462 — 8061.25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 10260160 | SEAL GASKET SEAL GASKET | 1 | |
| 2 | 11903111 | LOCK PLUG LOCK PLUG | 1 | |
| 3 | 16992671 | PLUG PLUG | 1 | |
| 4 | 504120282 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 1 | |
| 5 | 4754495 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 6 | 98400790 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 17764991 | CLIP CLIP | 2 | |
| 8 | 99444733 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 10279560 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 17094914 | WASHER WASHER | 4 | |
| 12 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17295681 | O-RING O-RING | 1 |
