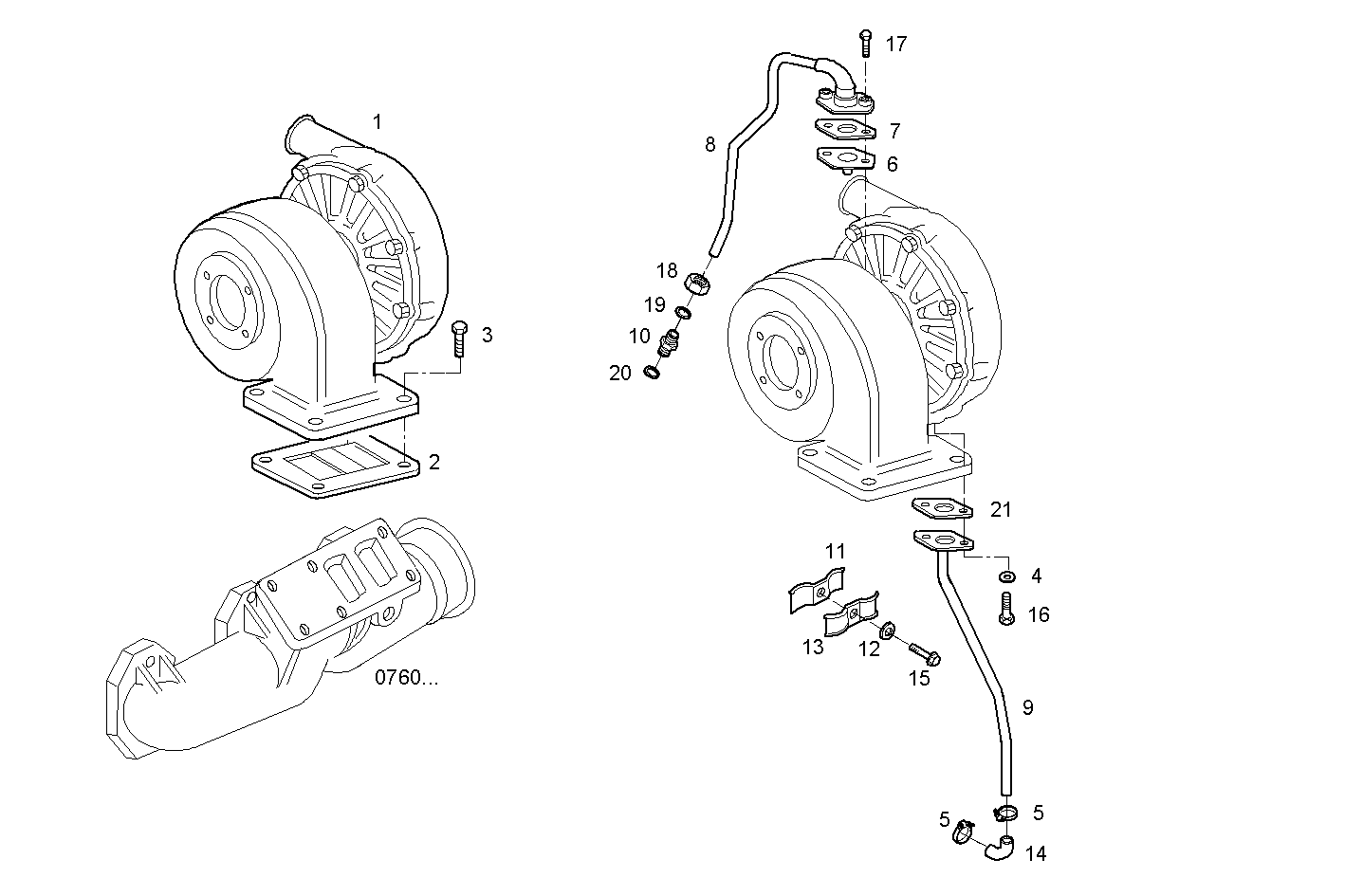

TURBOCHARGER
8061.25.462 — 8061.25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504120383 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 98428396 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 98491312 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 17764594 | HOSE CLIP HOSE CLIP | 2 | |
| 6 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 98482093 | GASKET GASKET | 1 | |
| 8 | 4772720 | OIL LINE OIL LINE | 1 | |
| 9 | 500326275 | OIL LINE OIL LINE | 1 | |
| 10 | 16500315 | THREADED UNION THREADED UNION | 1 | |
| 11 | 4755435 | RETAINER RETAINER | 1 | |
| 12 | 17798174 | SPRING WASHER SPRING WASHER | 1 | |
| 13 | 4755436 | RETAINER RETAINER | 1 | |
| 14 | 98421373 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 15 | 16603734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 16506915 | NUT NUT | 1 | |
| 19 | 16507614 | WASHER WASHER | 1 | |
| 20 | 16508260 | WASHER WASHER | 1 | |
| 21 | 98401046 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 |
