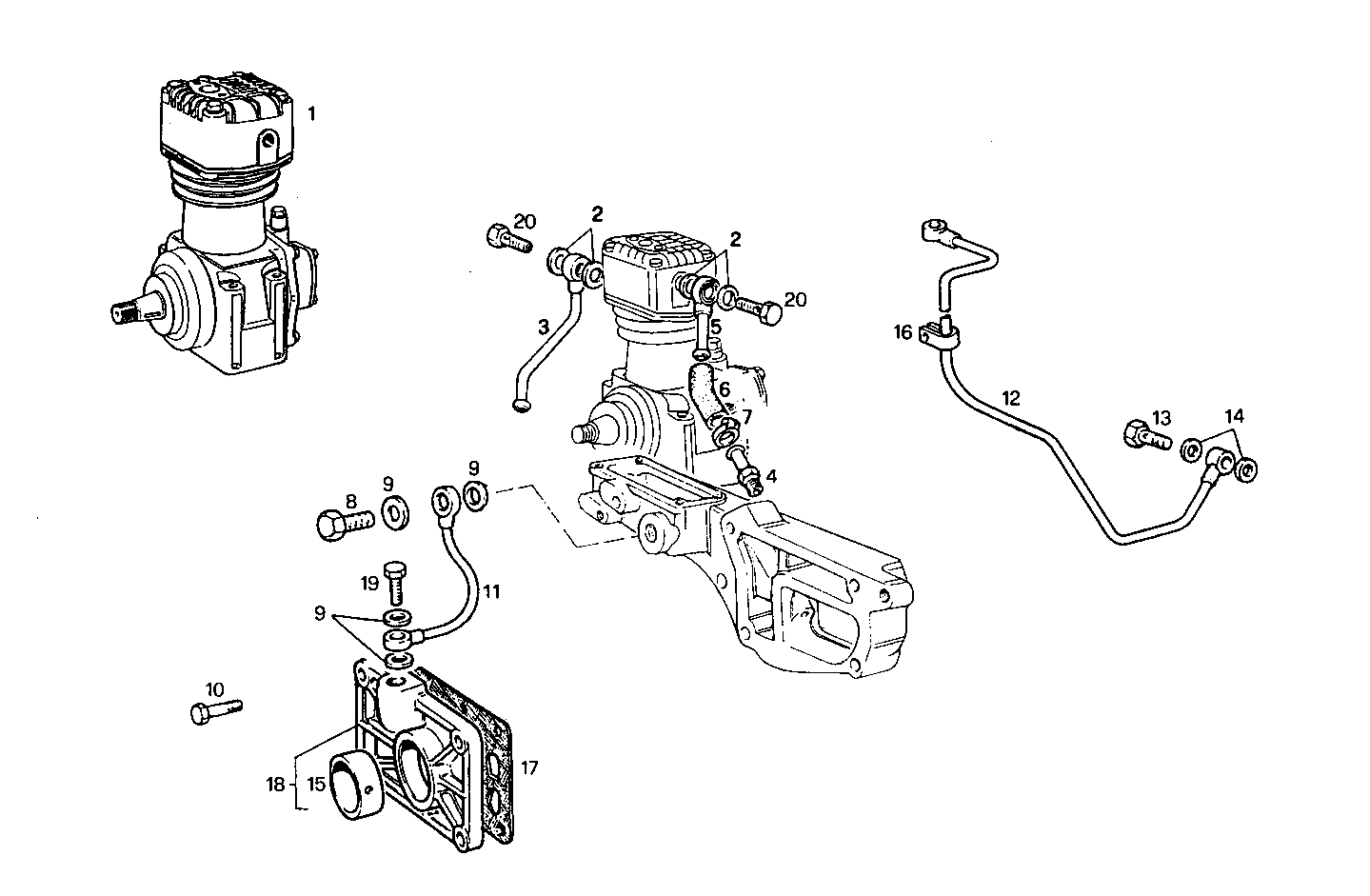

AIR COMPRESSOR
8061C05.01 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99440229 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 4858609 | WASHER WASHER | 4 | |
| 3 | 8011238 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 4616630 | THREADED UNION THREADED UNION | 2 | |
| 5 | 8011237 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 6 | 4626124 | WATER HOSE WATER HOSE | 2 | |
| 7 | 17764491 | CLIP CLIP | 4 | |
| 8 | 10184417 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 4858609 | WASHER WASHER | 4 | |
| 10 | 10902621 | SCREW SCREW | 3 | |
| 11 | 4608943 | OIL LINE OIL LINE | 1 | |
| 12 | 8108404 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 13 | 11903817 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 14 | 4858606 | GASKET GASKET | 4 | |
| 15 | 4599807 | BUSH BUSH | 4 | |
| 16 | 4617069 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 17 | 4850986 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 18 | 4765622 | COVER COVER | 1 | |
| 19 | 4817397 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 20 | 10184417 | SCREW CONNECTOR SCREW CONNECTOR | 2 |
