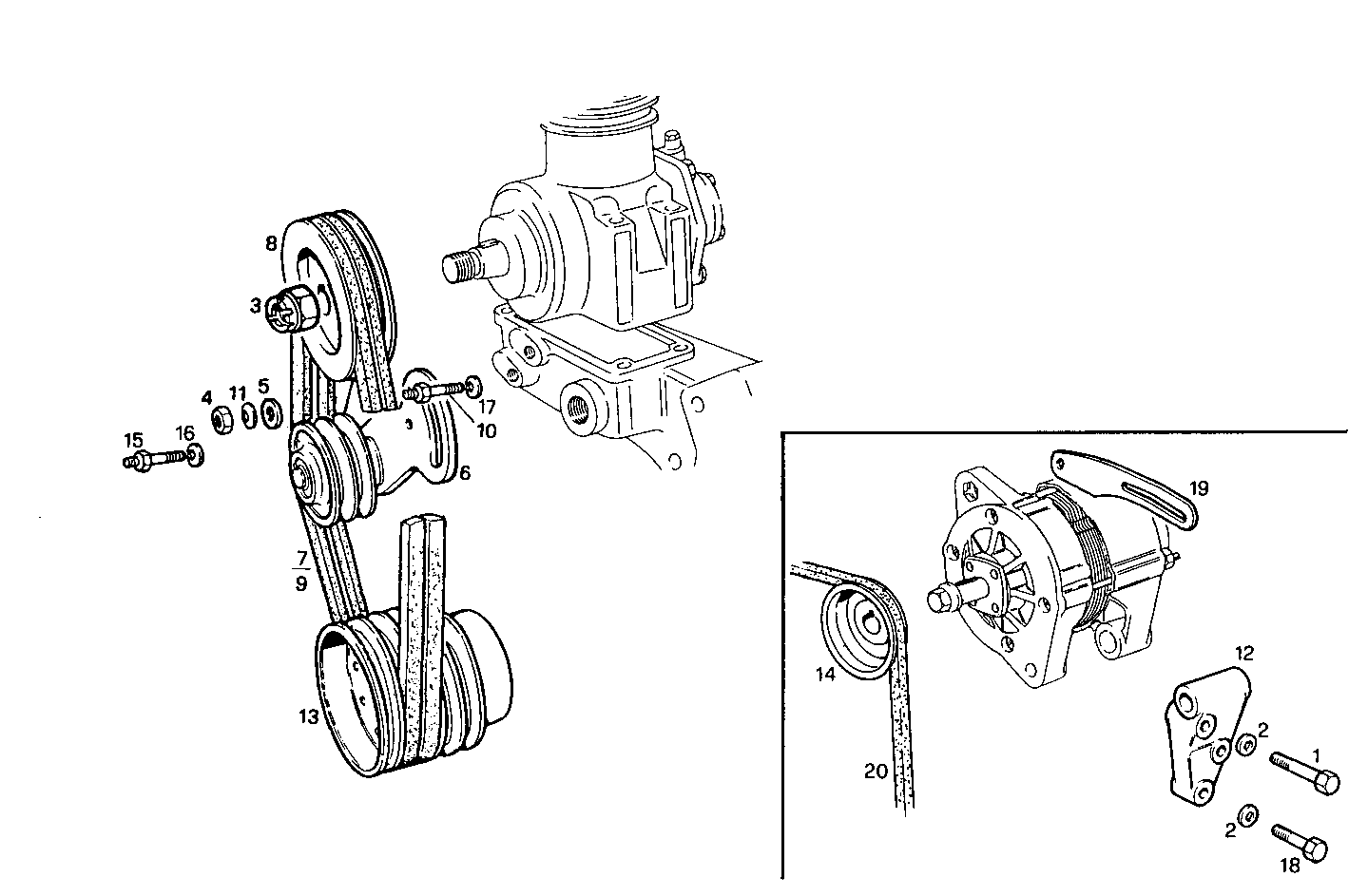

AIR COMPRESSOR
8061C05.01 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16044321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 2 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 3 | 13598411 | CASTLE NUT CASTLE NUT | 1 | |
| 4 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 5 | 759850 | WASHER WASHER | 2 | |
| 6 | 4803462 | BELT TENSIONER BELT TENSIONER | 1 | |
| 7 | 4803429 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 8 | 4803401 | PULLEY PULLEY | 1 | |
| 9 | 4803428 | V-BELT V-BELT | 2 | |
| 10 | 13449421 | STUD STUD | 2 | |
| 11 | 17090274 | WASHER WASHER | 2 | |
| 12 | 4797035 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 13 | 8104952 | PULLEY PULLEY | 1 | |
| 14 | 4808603 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 15 | 4811843 | STUD STUD | 1 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 12646801 | WASHER WASHER | 1 | |
| 18 | 16044221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 4641651 | TURNBUCKLE TURNBUCKLE | 1 | |
| 20 | 4803951 | V-BELT V-BELT | 1 |
