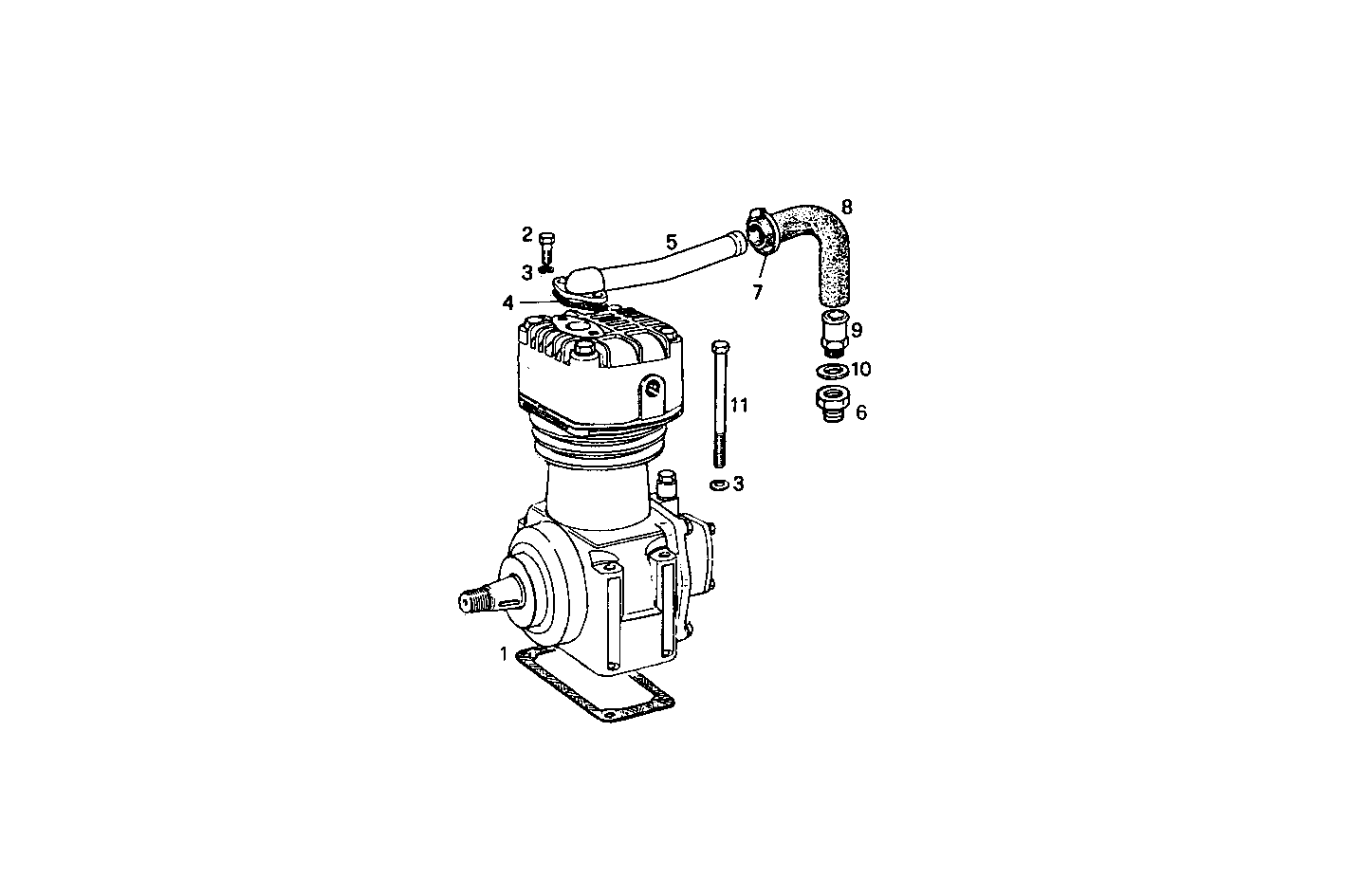

AIR COMPRESSOR
8061C05.01 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4601884 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 2 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 17089574 | WASHER WASHER | 6 | |
| 4 | 619376 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 8108951 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 6 | 4633506 | THREADED UNION THREADED UNION | 1 | |
| 7 | 12182190 | CLIP CLIP | 2 | |
| 8 | 4616762 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 4555394 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 10 | 10260360 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 16045021 | HEXAGON BOLT HEXAGON BOLT | 4 |
