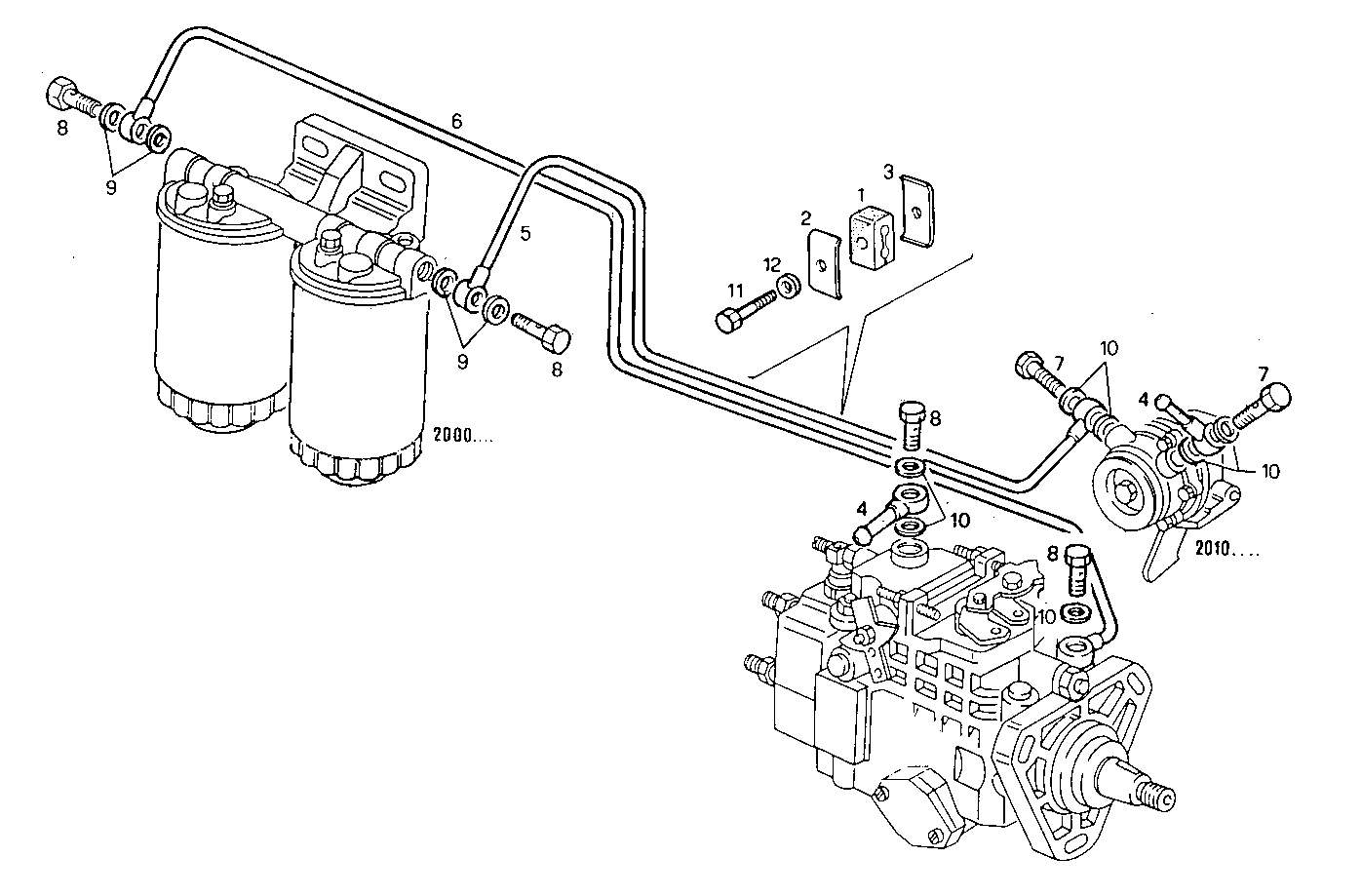

FUEL LINES
8061C05.01 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4659217 | DOWEL DOWEL | 1 | |
| 2 | 4659218 | CLIP CLIP | 1 | |
| 3 | 4659219 | PLATE PLATE | 1 | |
| 4 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 2 | |
| 5 | 98419940 | FUEL LINE FUEL LINE | 1 | |
| 6 | 98419873 | FUEL LINE FUEL LINE | 1 | |
| 7 | 4864082 | BANJO BOLT BANJO BOLT | 3 | |
| 8 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 9 | 98474308 | SEAL GASKET SEAL GASKET | 4 | |
| 10 | 4858606 | GASKET GASKET | 8 | |
| 11 | 10978221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 11195470 | SPRING WASHER SPRING WASHER | 1 |
