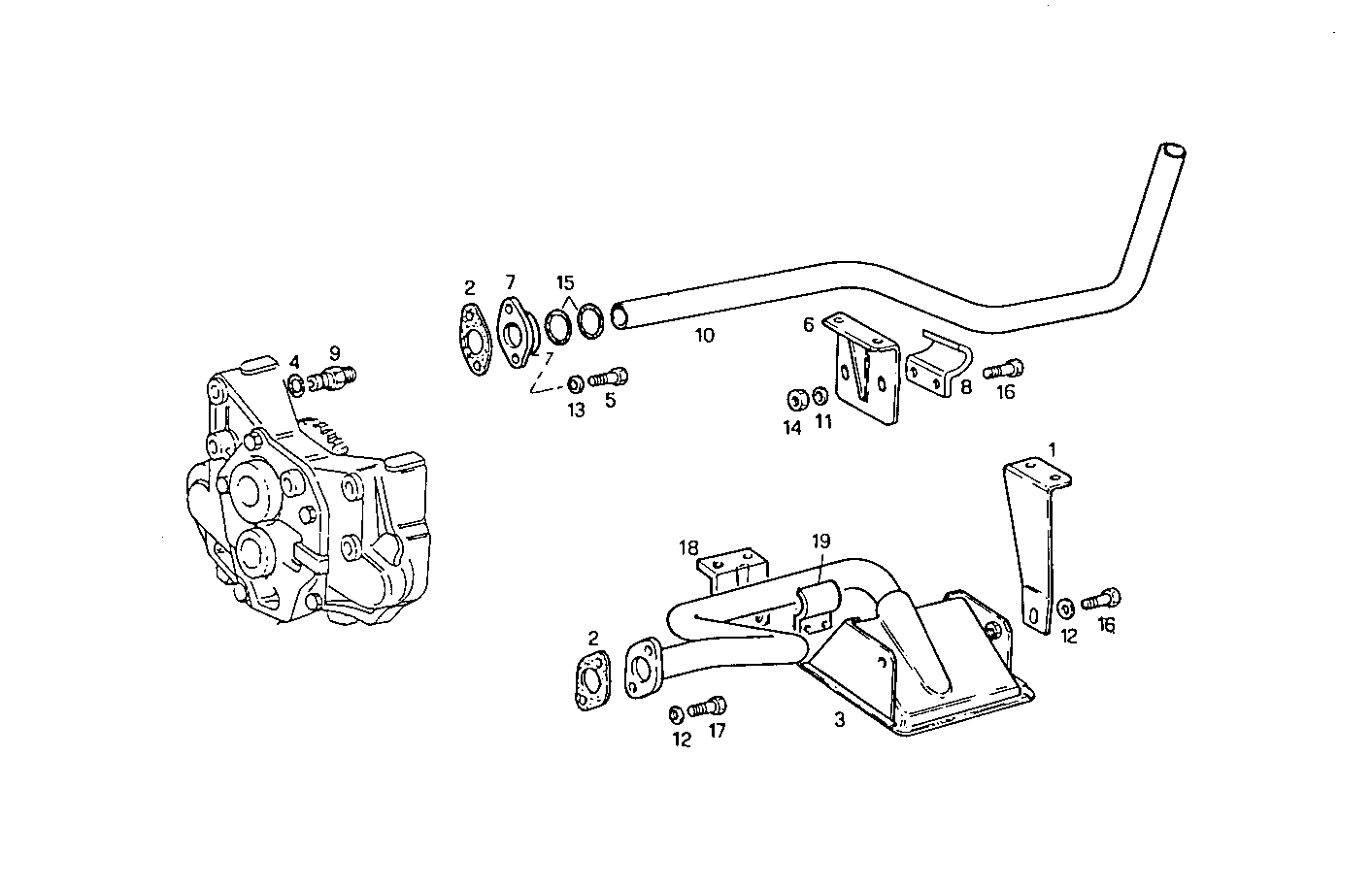

LUBE OIL LINES
8061C05.01 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4767554 | RETAINER RETAINER | 1 | |
| 2 | 4852561 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 3 | 4798802 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 4 | 561293 | O-RING O-RING | 1 | |
| 5 | 16043924 | SCREW SCREW | 2 | |
| 6 | 4775923 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 7 | 4773265 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 8 | 4777690 | CLIP CLIP | 1 | |
| 9 | 4785501 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 10 | 4817902 | OIL LINE OIL LINE | 1 | |
| 11 | 10519601 | WASHER WASHER | 5 | |
| 12 | 11193871 | WASHER WASHER | 9 | |
| 13 | 11198371 | SPRING WASHER SPRING WASHER | 2 | |
| 14 | 14048217 | HEXAGON NUT HEXAGON NUT | 5 | |
| 15 | 14457681 | O-RING O-RING | 4 | |
| 16 | 16043224 | SCREW SCREW | 12 | |
| 17 | 16043524 | SCREW SCREW | 2 | |
| 18 | 4798807 | RETAINER RETAINER | 1 | |
| 19 | 4775924 | RETAINER RETAINER | 1 |
