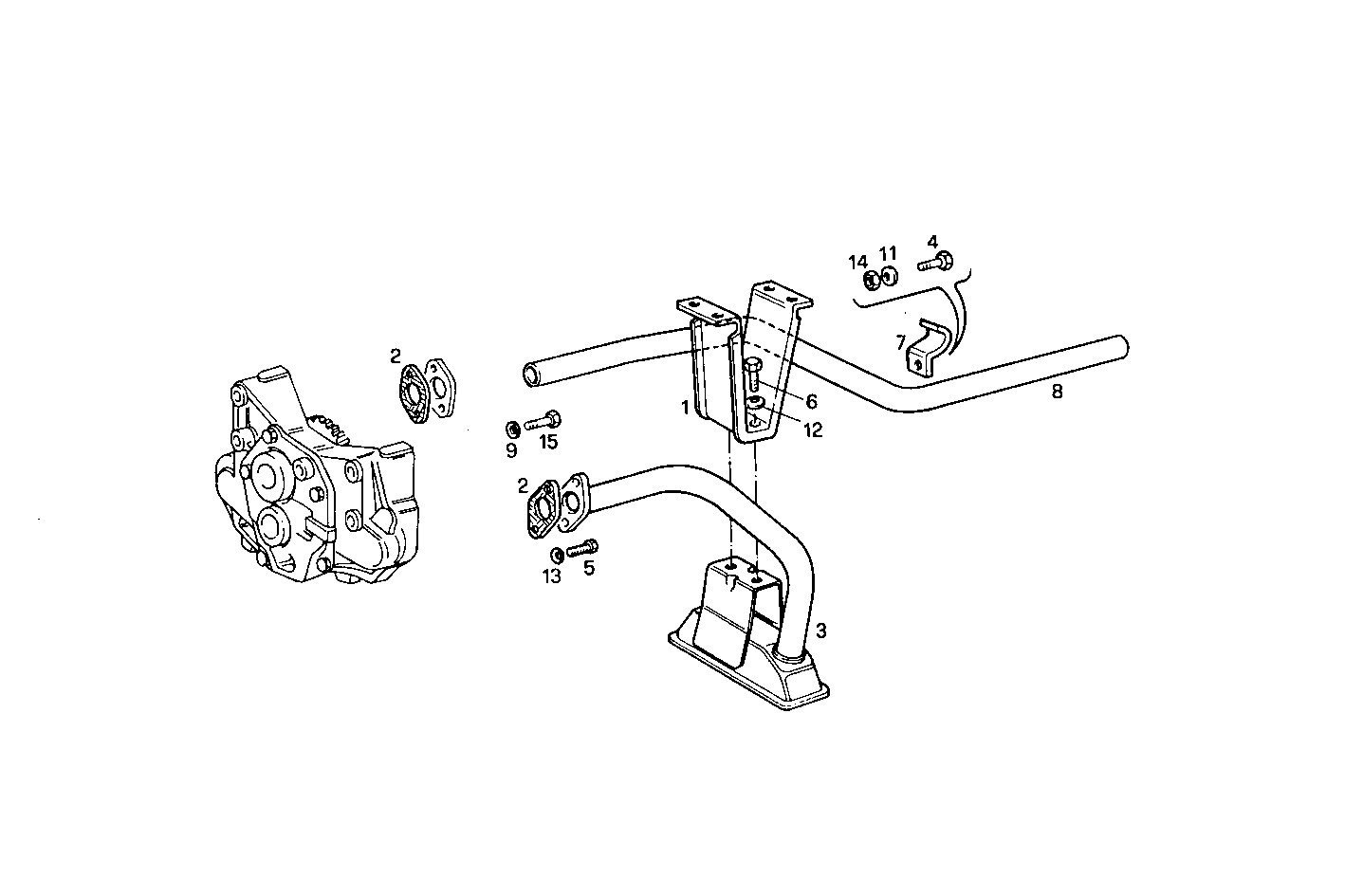

OIL SUMP
8061C05.01 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4614106 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 2 | 4852561 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4780390 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 4 | 16043224 | SCREW SCREW | 2 | |
| 5 | 16043524 | SCREW SCREW | 2 | |
| 6 | 16605424 | SCREW SCREW | 2 | |
| 7 | 98470418 | RETAINER RETAINER | 1 | |
| 8 | 4807308 | DELIVERY LINE DELIVERY LINE | 1 | |
| 9 | 17090274 | WASHER WASHER | 2 | |
| 11 | 10519601 | WASHER WASHER | 2 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 11193871 | WASHER WASHER | 2 | |
| 14 | 14048217 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 2 |
