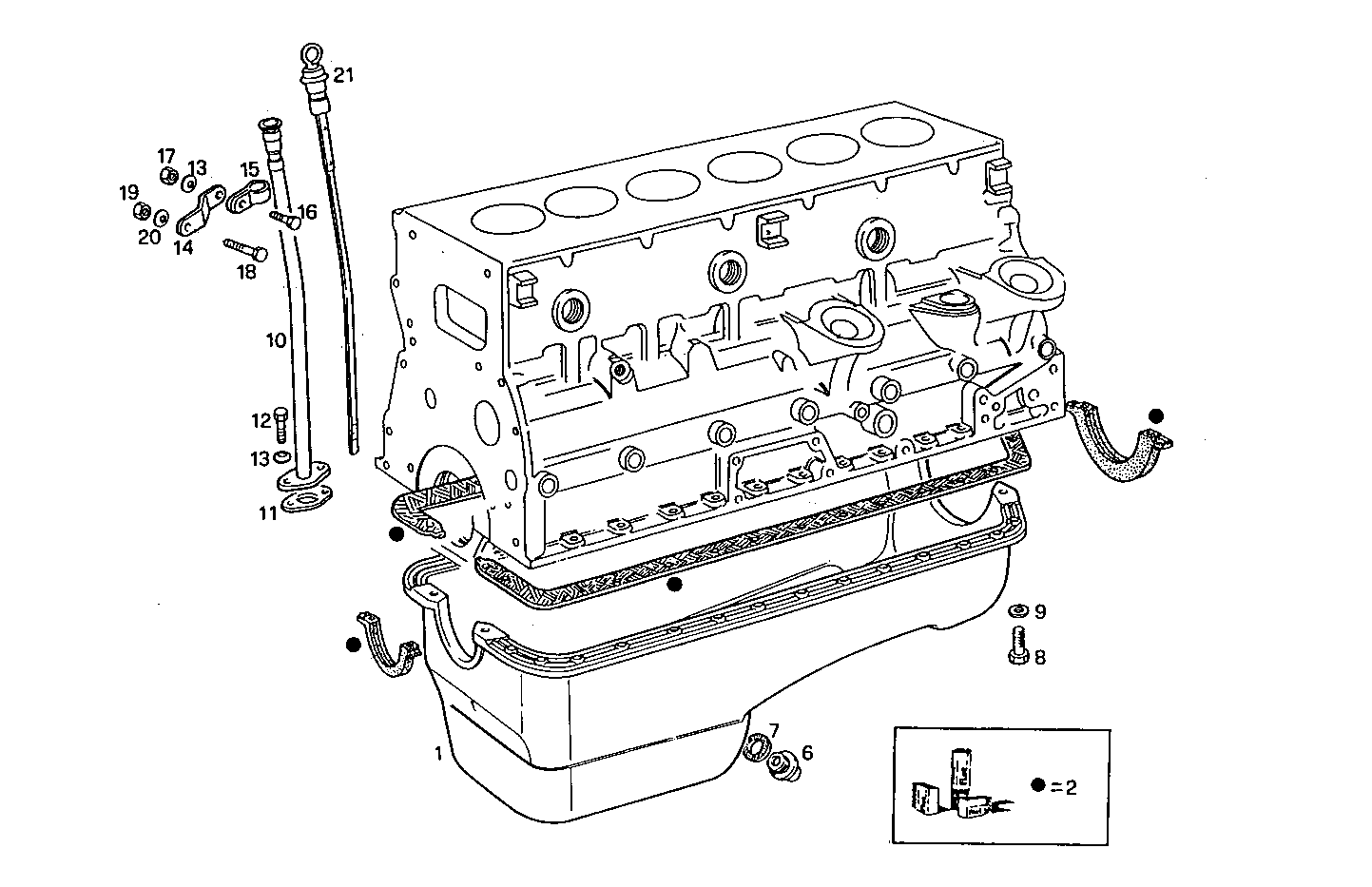

OIL SUMP
8061C05.01 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112361 | OIL SUMP OIL SUMP | 1 | |
| 2 | 1907561 | KIT-OILSUMP GASKET KIT-OILSUMP GASKET | 1 | |
| 6 | 16992611 | THREADED PLUG THREADED PLUG | 1 | |
| 7 | 16508460 | WASHER WASHER | 1 | |
| 8 | 10933021 | SCREW SCREW | 31 | |
| 9 | 17095004 | WASHER WASHER | 31 | |
| 10 | 8112429 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 11 | 98401052 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 12 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 14 | 4929562 | RETAINER RETAINER | 1 | |
| 15 | 4930515 | CLIP CLIP | 1 | |
| 16 | 16043521 | SCREW SCREW | 1 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 18 | 10902221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 17088474 | WASHER WASHER | 1 | |
| 21 | 8112430 | OIL DIPSTICK OIL DIPSTICK | 1 |
