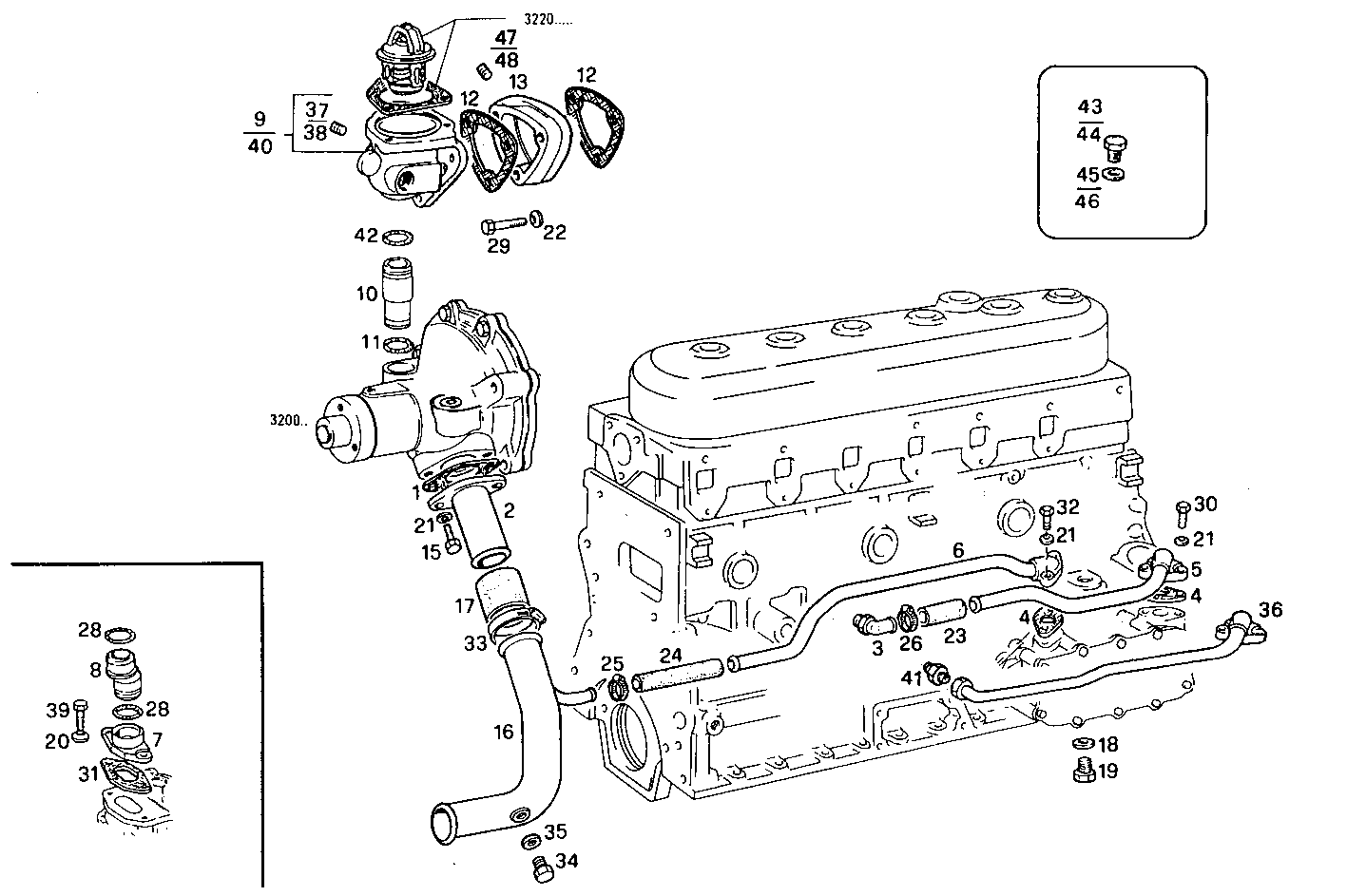

WATER LINES

8061C05.01 — 8061C05

Parts List

#	Part No	Name / Description	Qty
1	4852556	FLAT ENGINE GKT FLAT ENGINE GKT	1
2	4697838	WATER PIPE WATER PIPE	1
3	98443290	PIPE SOCKET PIPE SOCKET	1
4	4853970	FLAT ENGINE GKT FLAT ENGINE GKT	2
5	4762764	WATER PIPE WATER PIPE	1
6	4762766	WATER PIPE WATER PIPE	1
7	4859907	PIPE SOCKET PIPE SOCKET	1
8	4859908	PIPE SOCKET PIPE SOCKET	1
9	98431829	THERMOSTAT BODY THERMOSTAT BODY	1
10	98415712	PIPE SOCKET PIPE SOCKET	1
11	17288681	O-RING O-RING	1
12	4851926	FLAT ENGINE GKT FLAT ENGINE GKT	2
13	4651371	SPACING BAR SPACING BAR	1
15	98401723	HEXAGON BOLT HEXAGON BOLT	2
16	8107873	WATER PIPE WATER PIPE	1
17	17737687	WATER HOSE WATER HOSE	1
18	10257060	SEAL GASKET SEAL GASKET	1
19	16992440	THREADED PLUG THREADED PLUG	1
20	14496521	WASHER WASHER	2
21	17094914	WASHER WASHER	6
22	17090274	WASHER WASHER	3
23	98434883	WATER HOSE WATER HOSE	1
24	12077087	RUBBER SLEEVE RUBBER SLEEVE	1
25	12173790	CLIP CLIP	2
26	17764592	CLIP CLIP	2
28	98458442	O-RING O-RING	2
29	15971721	SCREW SCREW	3
30	16043621	HEXAGON BOLT HEXAGON BOLT	2
31	98417182	FLAT ENGINE GKT FLAT ENGINE GKT	1
32	16625734	HEXAGON BOLT HEXAGON BOLT	2
33	17764592	CLIP CLIP	2
34	16992411	THREADED PLUG THREADED PLUG	1
35	4858609	WASHER WASHER	1
36	98418656	WATER PIPE WATER PIPE	1
37	14325301	LOCK PLUG LOCK PLUG	1
38	14325201	LOCK PLUG LOCK PLUG	1
39	4798845	SCREW SCREW	2
40	4804633	THERMOSTAT BODY THERMOSTAT BODY	1
41	4784798	PIPE SOCKET PIPE SOCKET	1
42	17282281	O-RING O-RING	1
43	10305171	PLUG PLUG	1
44	16992440	THREADED PLUG THREADED PLUG	1
45	10263460	WASHER WASHER	1
46	10257060	SEAL GASKET SEAL GASKET	1
47	16997411	THREADED PLUG THREADED PLUG	1
48	99434231	THREADED PLUG THREADED PLUG	1
