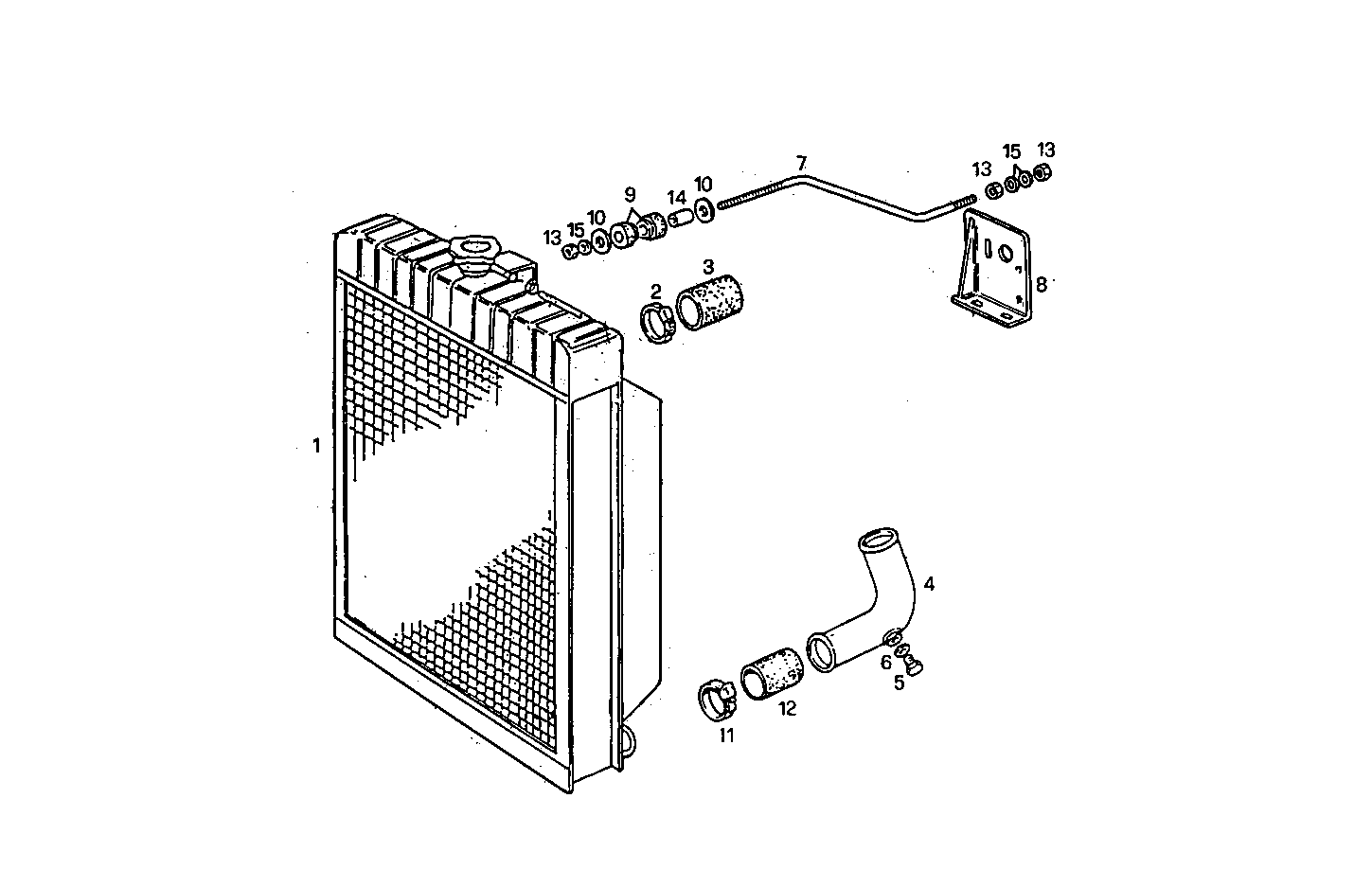

RADIATOR FOR SETTING TILL MAX POWER
8061C05.05 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025606 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 98490783 | CLIP CLIP | 1 | |
| 3 | 8024783 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 4 | 8024686 | WATER PIPE WATER PIPE | 1 | |
| 5 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 6 | 4858606 | GASKET GASKET | 1 | |
| 7 | 8024390 | TIE ROD TIE ROD | 1 | |
| 8 | 8020521 | RETAINER RETAINER | 1 | |
| 9 | 741569 | RUBBER PAD RUBBER PAD | 6 | |
| 10 | 741570 | WASHER WASHER | 2 | |
| 11 | 17764792 | HOSE CLIP HOSE CLIP | 2 | |
| 12 | 4934627 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 17038421 | HEXAGON NUT HEXAGON NUT | 4 | |
| 14 | 8108634 | SPACING BAR SPACING BAR | 3 | |
| 15 | 17091074 | WASHER WASHER | 2 |
