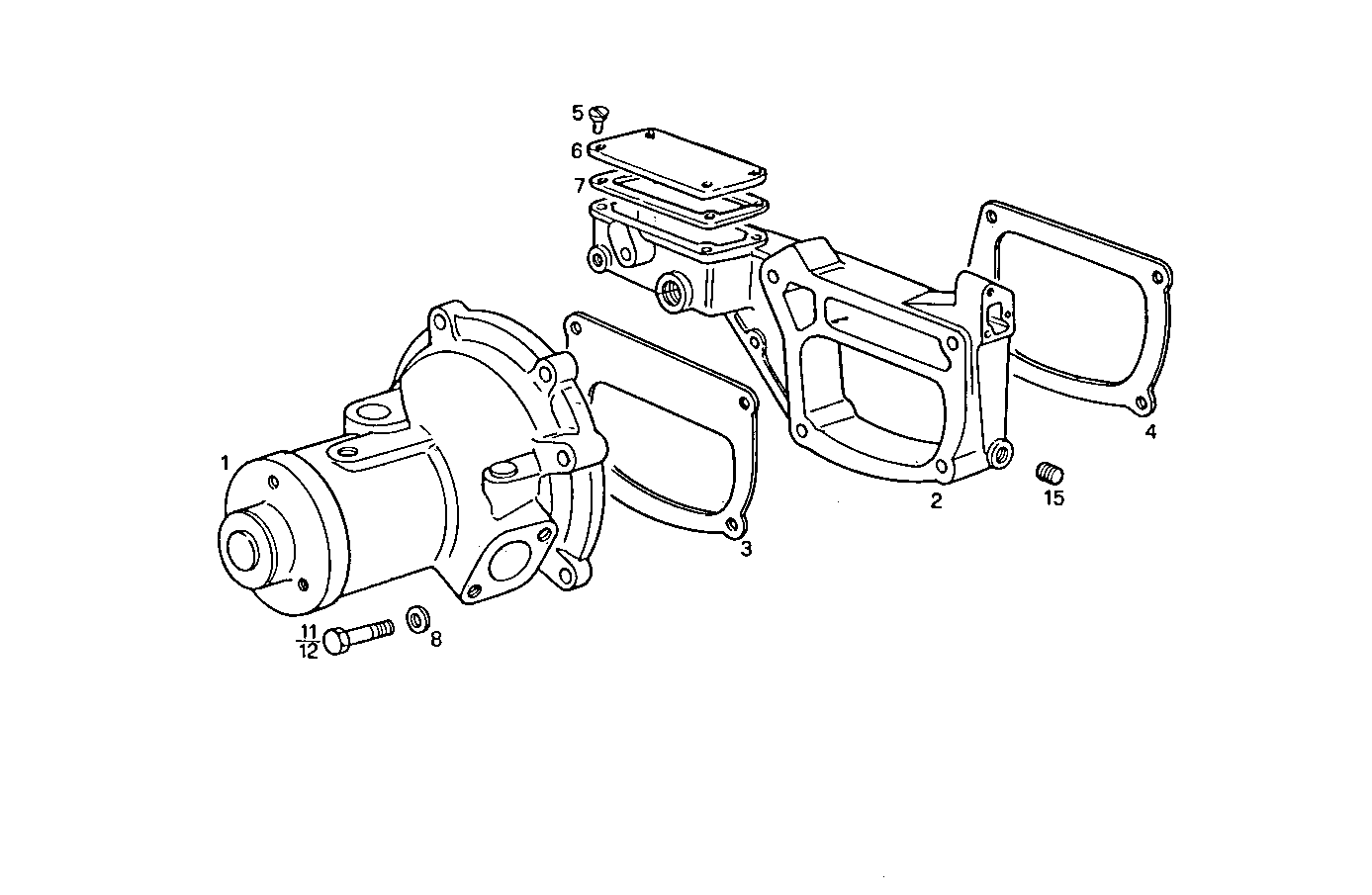

WATER PUMP
8061C05.05 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98497118 | WATER PUMP WATER PUMP | 1 | |
| 2 | 500320197 | SUPPORT SUPPORT | 1 | |
| 3 | 98400776 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 98400779 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 18023614 | SCREW SCREW | 4 | |
| 6 | 4919302 | COVER COVER | 1 | |
| 7 | 98400783 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 11190571 | SPRING WASHER SPRING WASHER | 4 | |
| 11 | 15971521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 15972021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 15 | 16997411 | THREADED PLUG THREADED PLUG | 1 |
