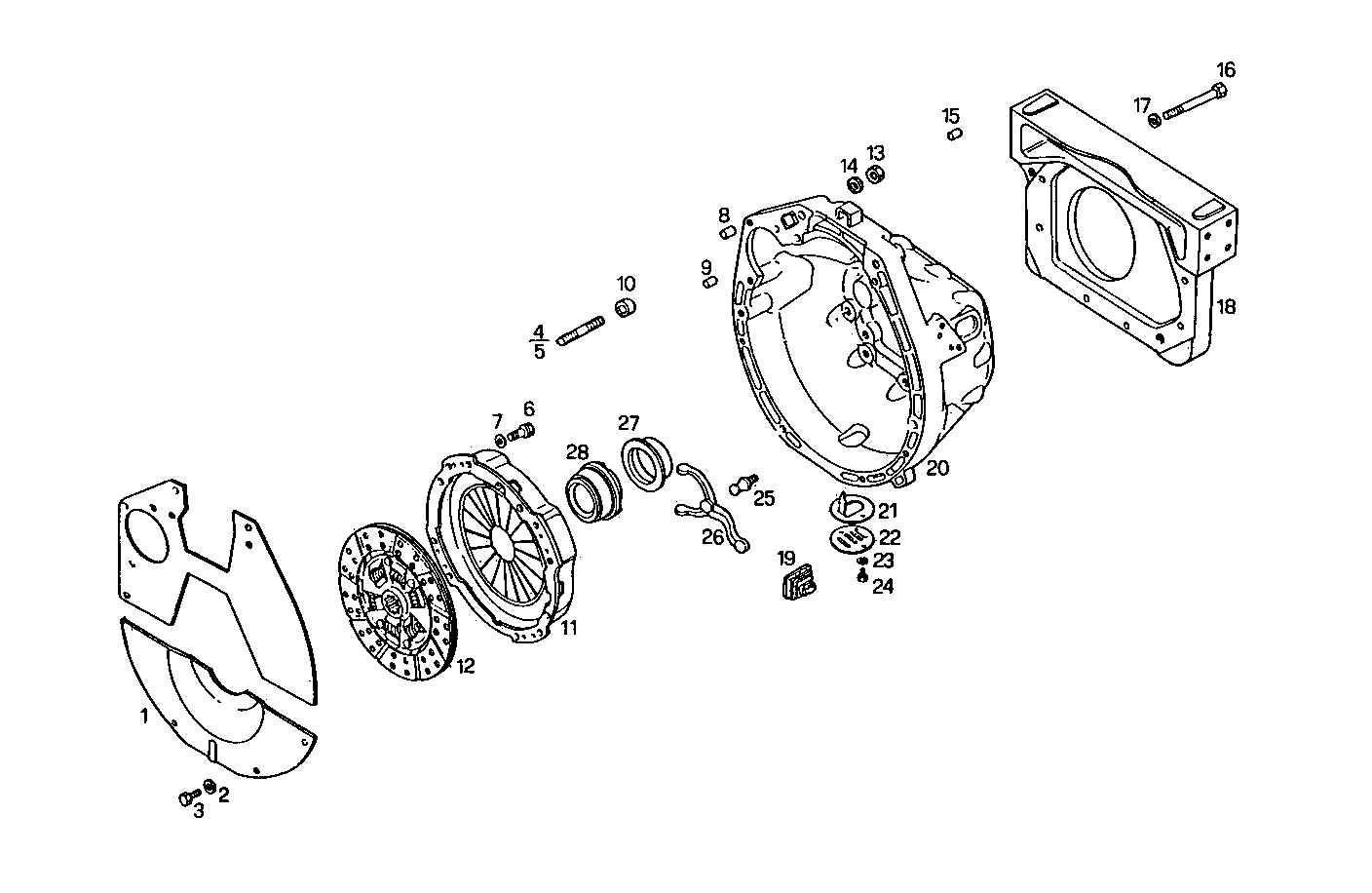

CLUTCH
8061C05.05A001 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8584074 | PROTECTION PROTECTION | 1 | |
| 2 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 3 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 16736224 | STUD STUD | 2 | |
| 5 | 16764224 | STUD STUD | 2 | |
| 6 | 4659180 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 17095004 | WASHER WASHER | 8 | |
| 8 | 8822015 | DOWEL PIN DOWEL PIN | 2 | |
| 9 | 4647524 | DOWEL PIN DOWEL PIN | 1 | |
| 10 | 8822016 | SPACING BAR SPACING BAR | 4 | |
| 11 | 4808941 | THRUST PLATE THRUST PLATE | 1 | |
| 12 | 8022027 | CLUTCH DISC CLUTCH DISC | 1 | |
| 13 | 17038721 | NUT NUT | 4 | |
| 14 | 17095504 | WASHER WASHER | 4 | |
| 15 | 17275510 | DOWEL PIN DOWEL PIN | 2 | |
| 16 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 17 | 17095104 | WASHER WASHER | 10 | |
| 18 | 8022028 | COVER COVER | 1 | |
| 19 | 4794012 | PROTECTIVE HOOD PROTECTIVE HOOD | 1 | |
| 20 | 8022024 | COVER COVER | 1 | |
| 21 | 4606988 | CONNECTING PLATE CONNECTING PLATE | 1 | |
| 22 | 4540660 | COVER COVER | 1 | |
| 23 | 17494634 | SPRING WASHER SPRING WASHER | 4 | |
| 24 | 16972204 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 25 | 4577306 | BALL-END PIN BALL-END PIN | 1 | |
| 26 | 4773745 | CLUTCH LEVER CLUTCH LEVER | 1 | |
| 27 | 8022001 | BUSH BUSH | 1 | |
| 28 | 4787273 | RELEASE SLEEVE RELEASE SLEEVE | 1 |
