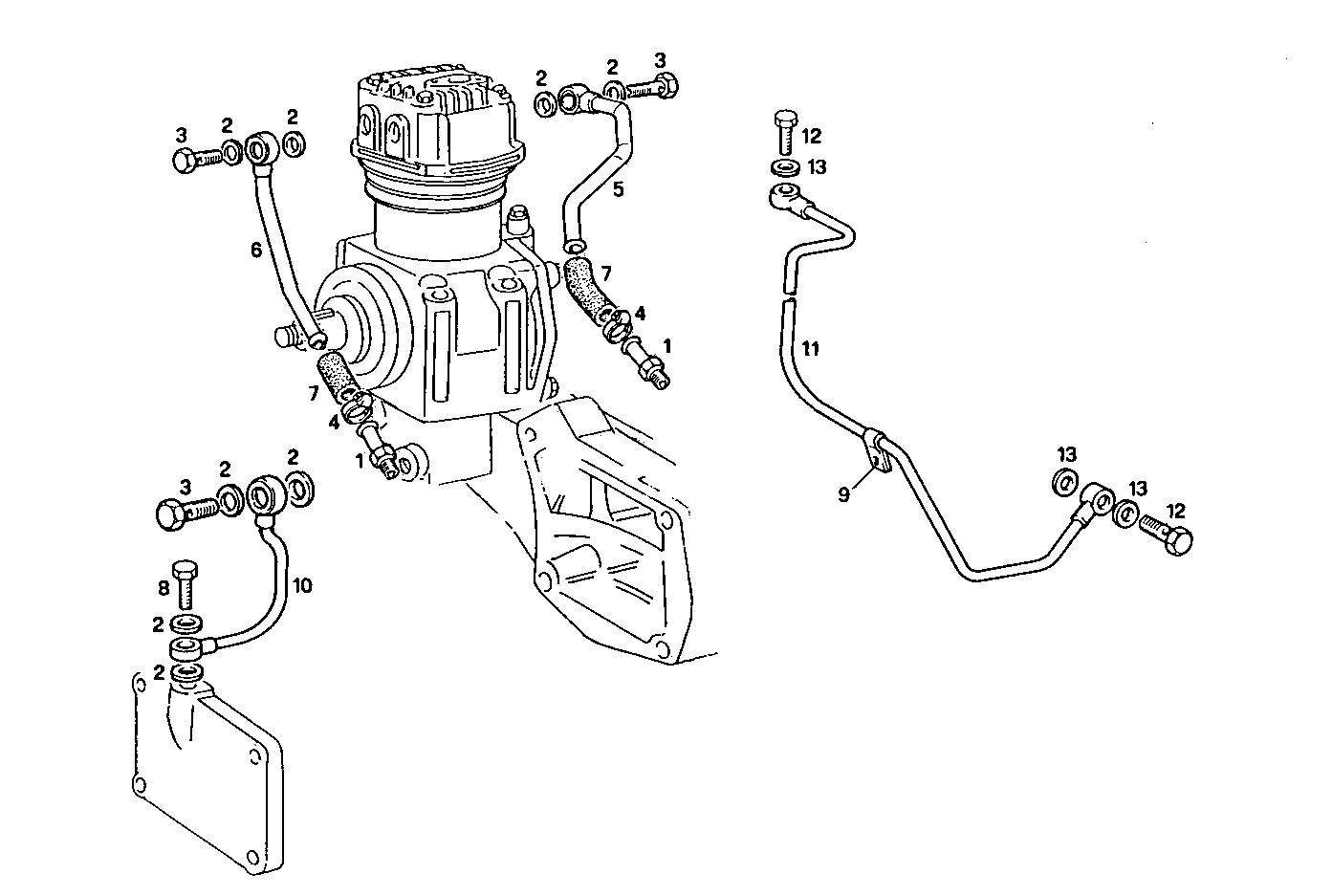

COMPRESSOR LINE SYSTEM
8061C05.05A001 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4616630 | THREADED UNION THREADED UNION | 2 | |
| 2 | 4858609 | WASHER WASHER | 8 | |
| 3 | 4864084 | BANJO BOLT BANJO BOLT | 3 | |
| 4 | 17764492 | CLIP CLIP | 4 | |
| 5 | 98423879 | WATER PIPE WATER PIPE | 1 | |
| 6 | 98423909 | WATER PIPE WATER PIPE | 1 | |
| 7 | 98425477 | WATER HOSE WATER HOSE | 2 | |
| 8 | 4817397 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 4617069 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 10 | 98412659 | OIL LINE OIL LINE | 1 | |
| 11 | 98425210 | OIL LINE OIL LINE | 1 | |
| 12 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 13 | 4858606 | GASKET GASKET | 4 |
