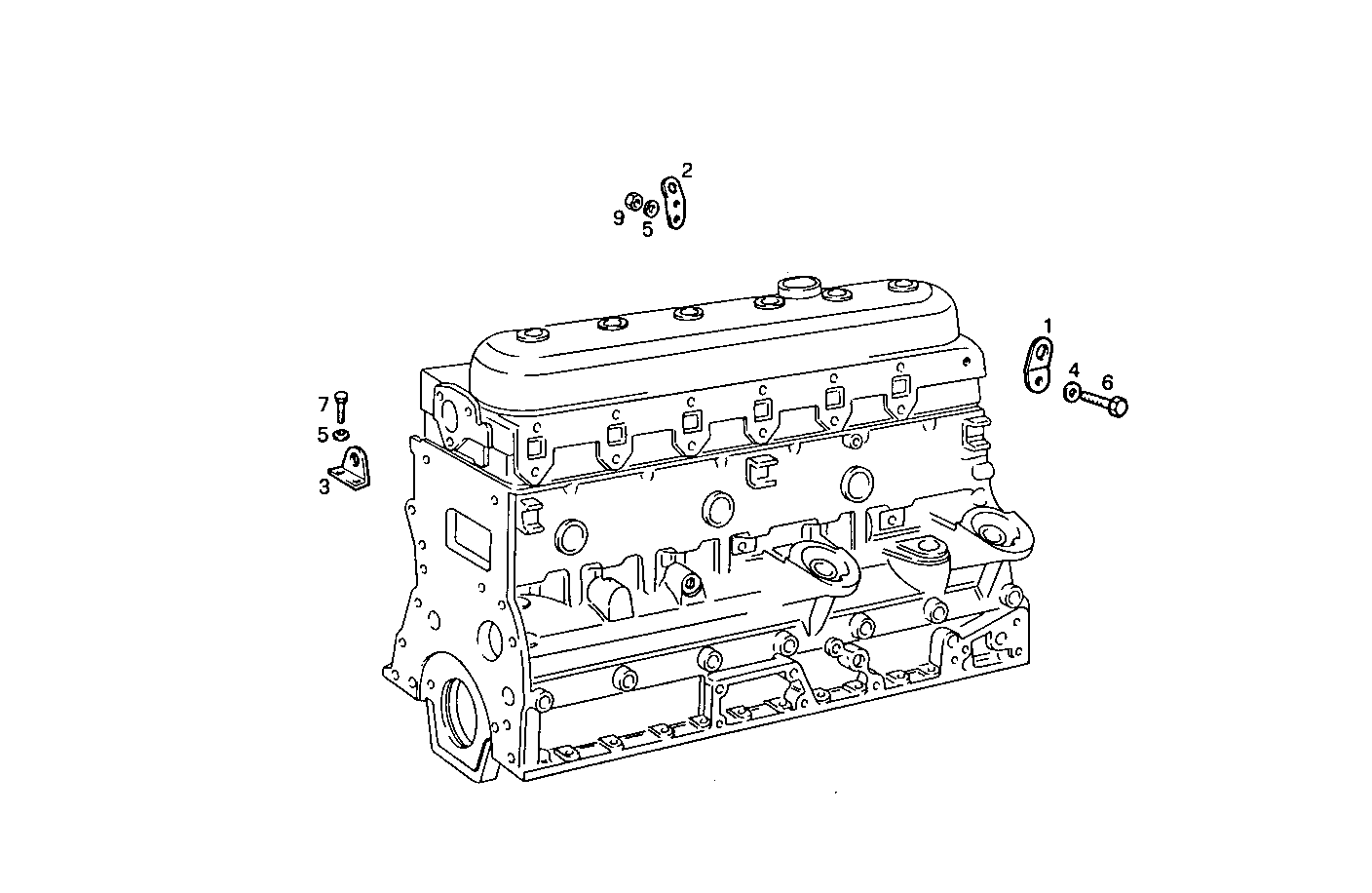

ENGINE SUSPENSION
8061C05.05A001 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98439780 | HOOK HOOK | 1 | |
| 2 | 98439779 | HOOK HOOK | 1 | |
| 3 | 4604104 | SHACKLE SHACKLE | 1 | |
| 4 | 11190579 | SPRING WASHER SPRING WASHER | 1 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 6 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 16043521 | SCREW SCREW | 2 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 |
