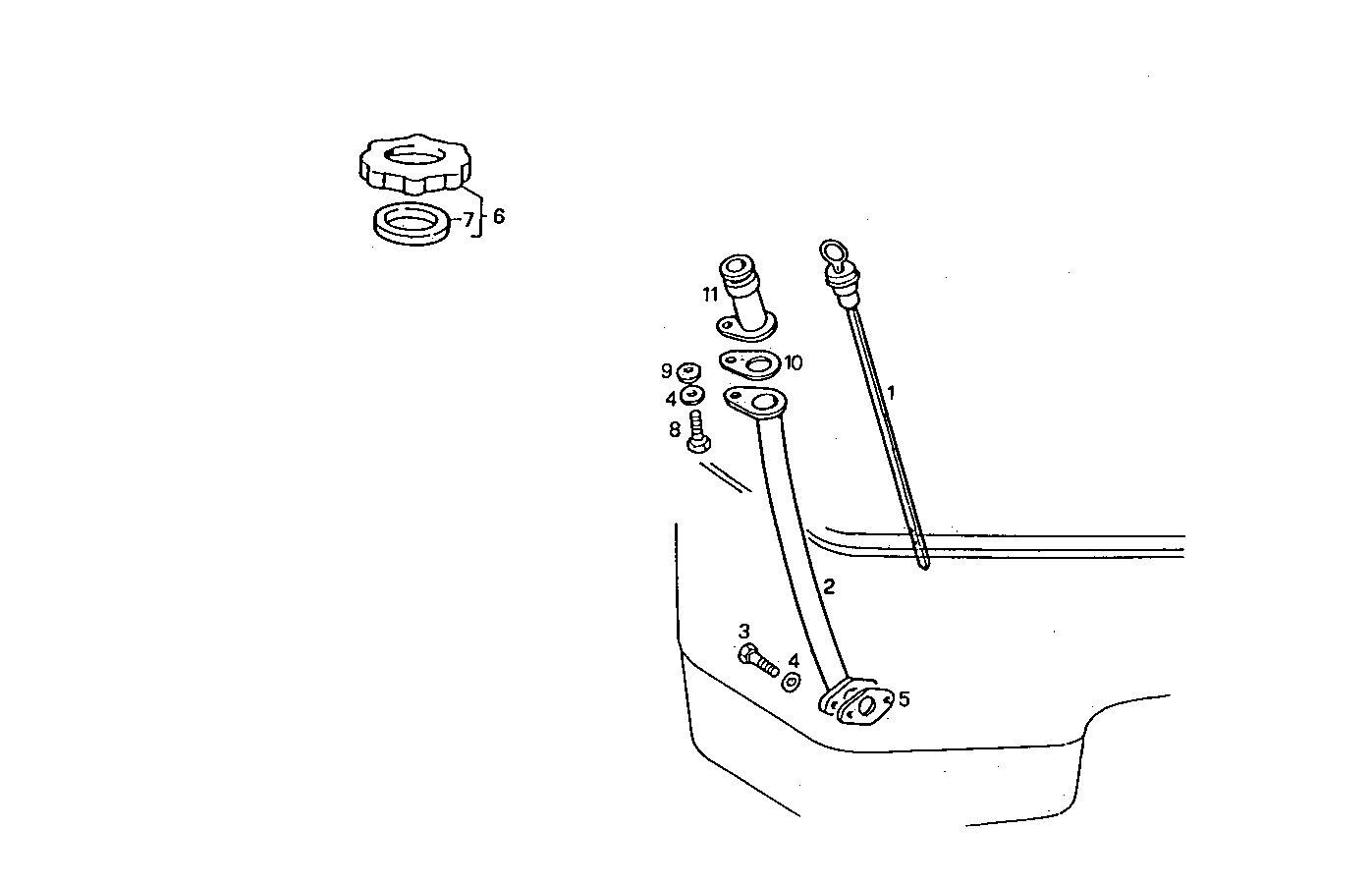

OIL DIPSTICK
8061C05.05A001 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022208 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 2 | 4696931 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 3 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 98401052 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4232606 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 7 | 98418978 | GASKET GASKET | 1 | |
| 8 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17094901 | WASHER WASHER | 1 | |
| 10 | 98480943 | GASKET GASKET | 1 | |
| 11 | 8022196 | OIL LINE OIL LINE | 1 |
