CLUTCH
8061C05.05A030 — 8061C05

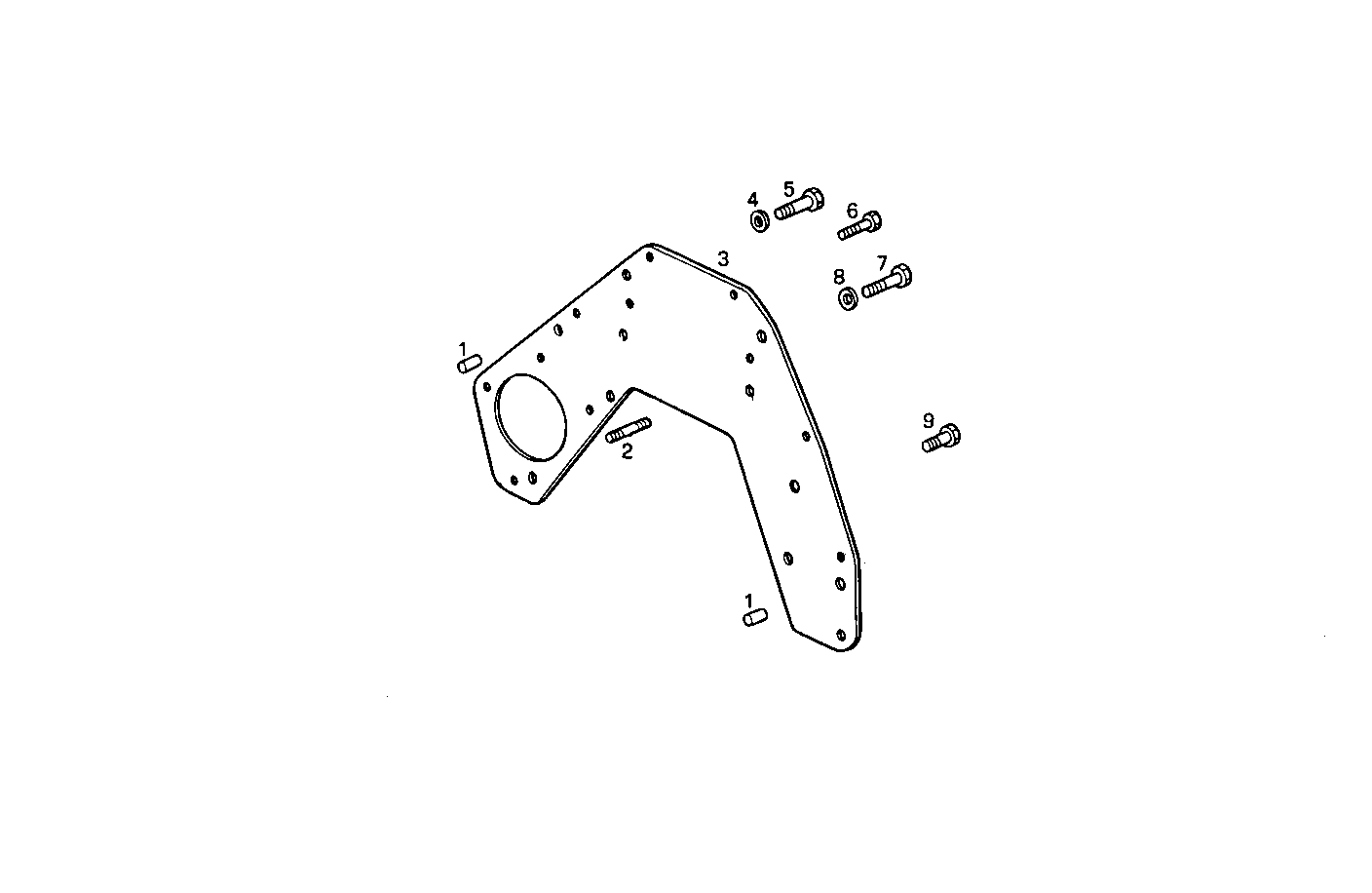

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17275510 | DOWEL PIN DOWEL PIN | 2 | |
| 2 | 8019364 | STUD STUD | 2 | |
| 3 | 8019294 | PLATE PLATE | 1 | |
| 4 | 17091674 | WASHER WASHER | 3 | |
| 5 | 16612424 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 16695624 | SCREW SCREW | 1 | |
| 7 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 9 | 16610324 | HEXAGON BOLT HEXAGON BOLT | 2 |
