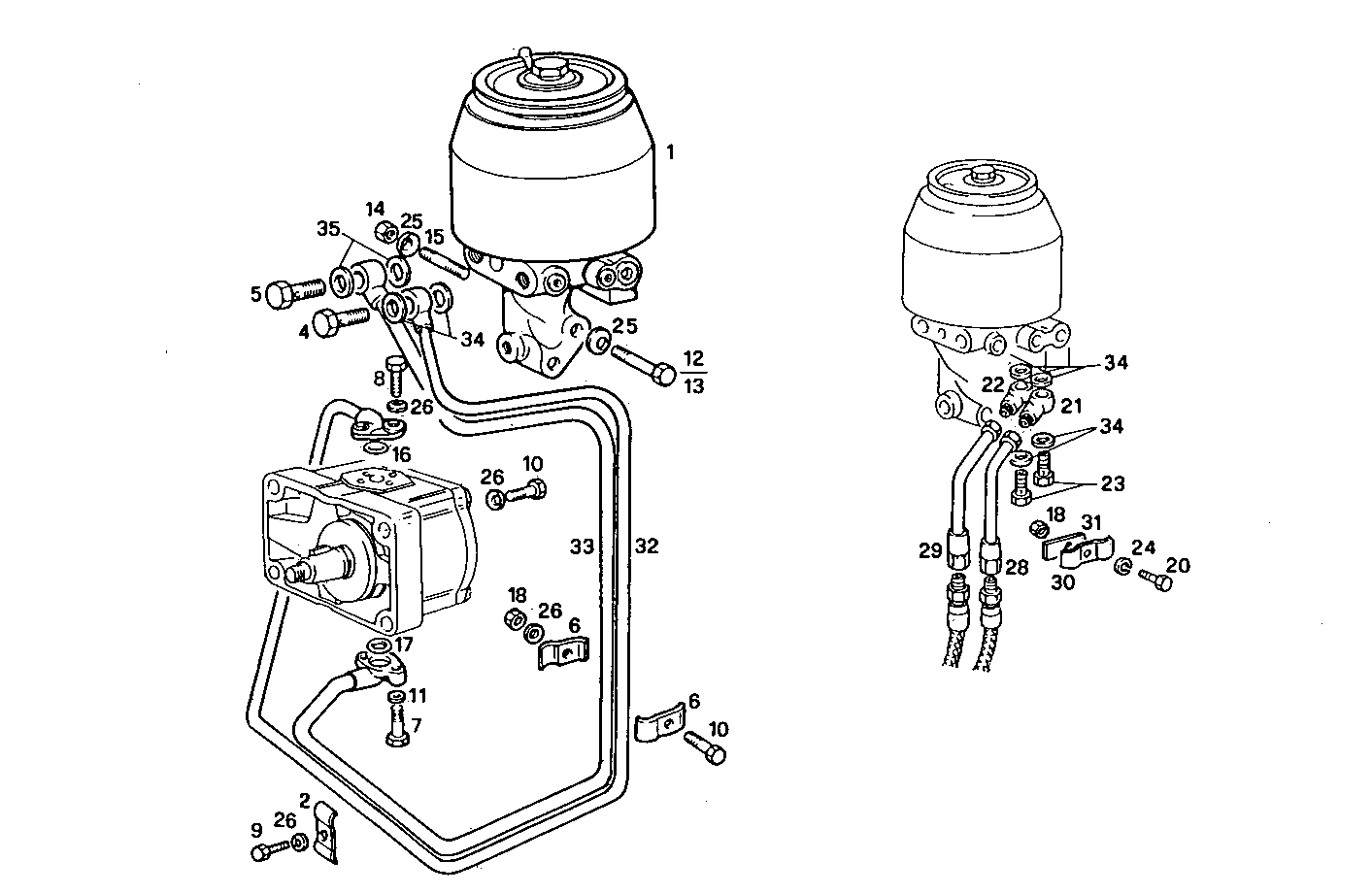

POWER STEERING PUMP
8061C05.05A030 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1368798 | STEERING OIL TANK STEERING OIL TANK | 1 | |
| 2 | 1377329 | CLIP CLIP | 2 | |
| 4 | 4617105 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 5 | 4629222 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 6 | 4649804 | CLIP CLIP | 2 | |
| 7 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 10902721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 10902621 | SCREW SCREW | 1 | |
| 10 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 14308121 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 1 | |
| 14 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 13449921 | STUD STUD | 1 | |
| 16 | 17281781 | O-RING O-RING | 1 | |
| 17 | 17282181 | O-RING O-RING | 1 | |
| 18 | 17037821 | HEXAGON NUT HEXAGON NUT | 3 | |
| 20 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 60114200 | BANJO COUPLING BANJO COUPLING | 1 | |
| 22 | 60114201 | BANJO COUPLING BANJO COUPLING | 1 | |
| 23 | 10182617 | BANJO BOLT BANJO BOLT | 2 | |
| 24 | 17494734 | WASHER WASHER | 1 | |
| 25 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 26 | 17088474 | WASHER WASHER | 4 | |
| 28 | 4834199 | PIPE PIPE | 1 | |
| 29 | 4834201 | PIPE PIPE | 1 | |
| 30 | 4834223 | CLIP CLIP | 1 | |
| 31 | 4834224 | CONNECTING PLATE CONNECTING PLATE | 1 | |
| 32 | 98429175 | HYDRAULIC LINE HYDRAULIC LINE | 1 | |
| 33 | 98429178 | HYDRAULIC LINE HYDRAULIC LINE | 1 | |
| 34 | 98429280 | SEAL GASKET SEAL GASKET | 6 | |
| 35 | 98429281 | SEAL GASKET SEAL GASKET | 2 |
