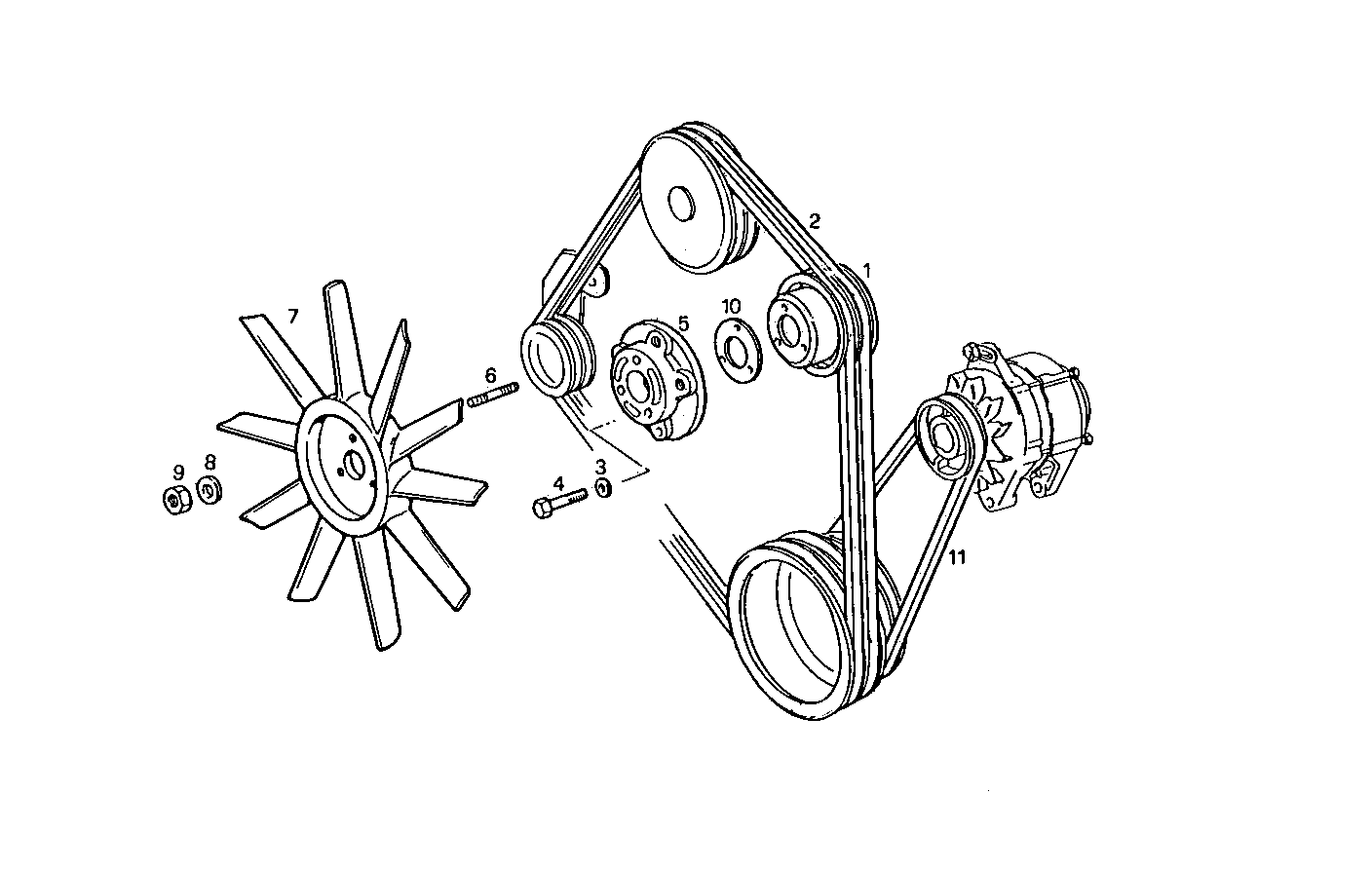

PULLEYS AND BELTS
8061C05.05A030 — 8061C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4755341 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 2 | 98473883 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 3 | 17089574 | WASHER WASHER | 3 | |
| 4 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 8022269 | HUB HUB | 1 | |
| 6 | 16746624 | STUD STUD | 5 | |
| 7 | 500300559 | BLOWER BLOWER | 1 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 10 | 4584861 | SPACING BAR SPACING BAR | 1 | |
| 11 | 98473700 | V-BELT V-BELT | 1 |
