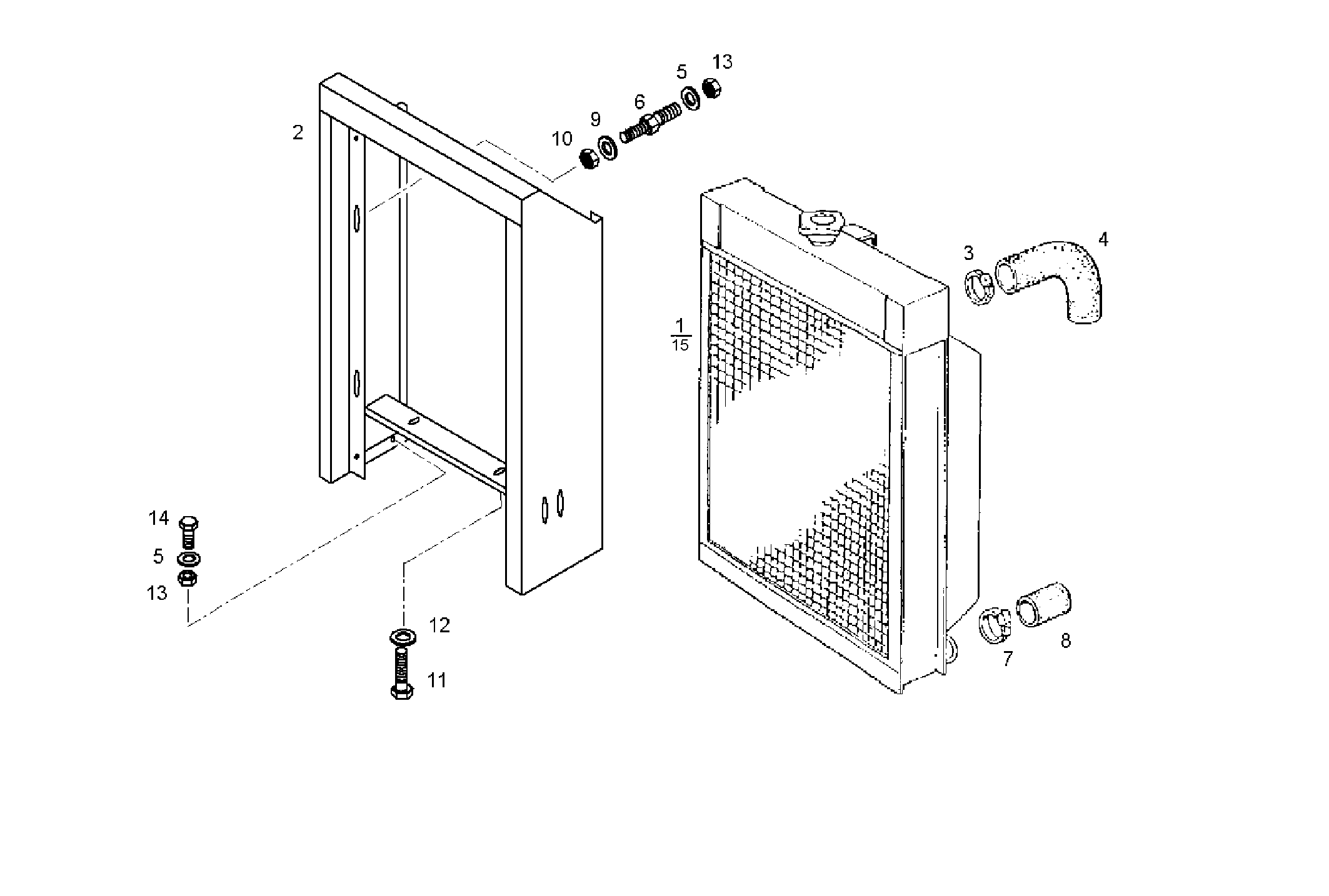

RADIATOR
8061i06.05 — 8061i06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024731 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8030589 | SUPPORT SUPPORT | 1 | |
| 3 | 17764991 | CLIP CLIP | 2 | |
| 4 | 8024783 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 5 | 17088474 | WASHER WASHER | 8 | |
| 6 | 8031777 | SPACING BAR SPACING BAR | 4 | |
| 7 | 17764791 | CLIP CLIP | 2 | |
| 8 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 17089574 | WASHER WASHER | 4 | |
| 10 | 17037925 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 16607434 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17090474 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 17037821 | HEXAGON NUT HEXAGON NUT | 8 | |
| 14 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 8039266 | WATER RADIATOR WATER RADIATOR | 1 |
