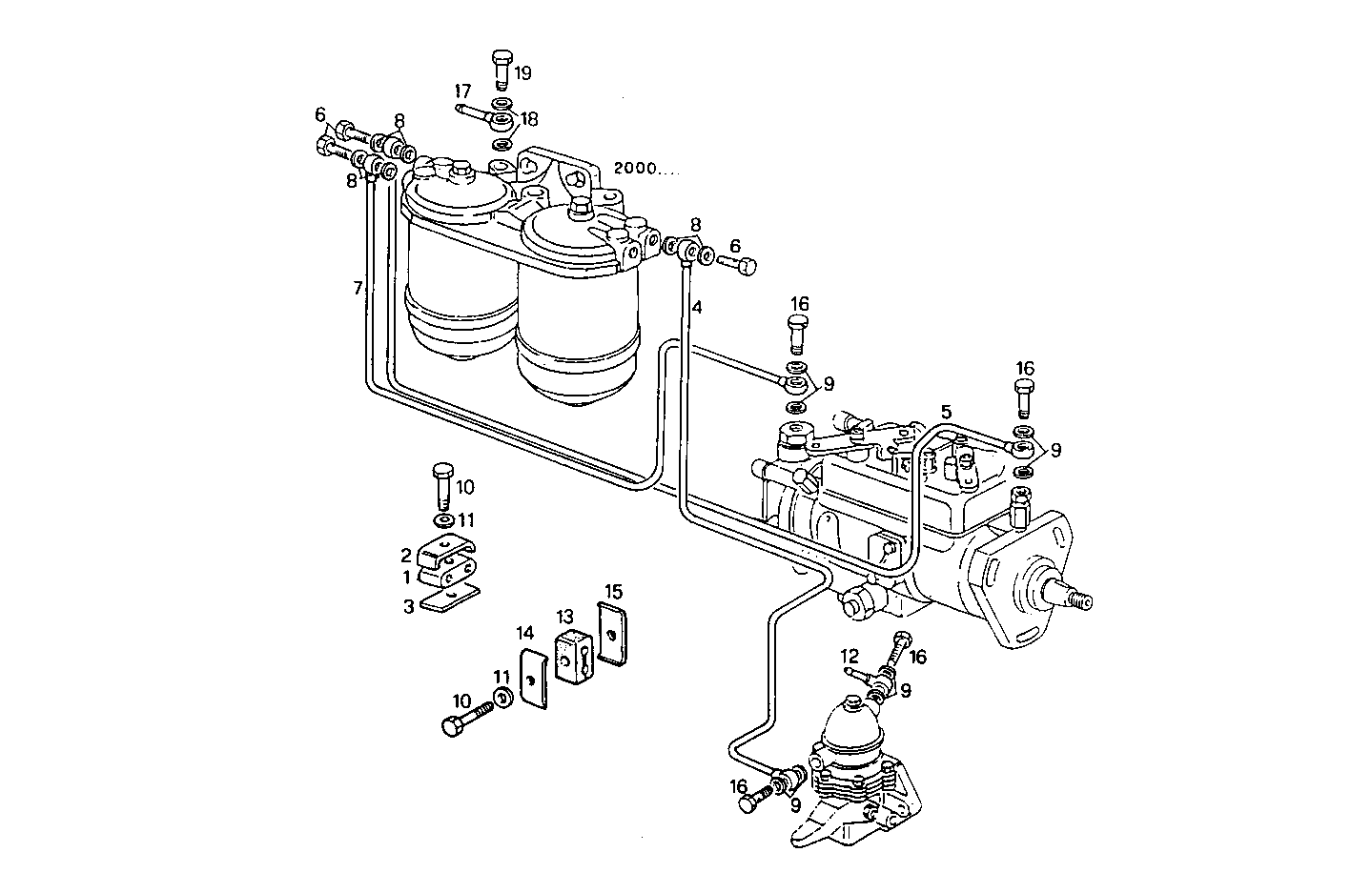

FUEL LINES
8061i25.00 — 8061i25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4659217 | DOWEL DOWEL | 1 | |
| 2 | 4659218 | CLIP CLIP | 1 | |
| 3 | 4659219 | PLATE PLATE | 1 | |
| 4 | 98417225 | FUEL LINE FUEL LINE | 1 | |
| 5 | 98417227 | FUEL LINE FUEL LINE | 1 | |
| 6 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 7 | 98417226 | FUEL LINE FUEL LINE | 1 | |
| 8 | 4858608 | SEAL GASKET SEAL GASKET | 6 | |
| 9 | 4858607 | WASHER WASHER | 8 | |
| 10 | 16602324 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 11 | 17494631 | SPRING WASHER SPRING WASHER | 3 | |
| 12 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 13 | 4659220 | DOWEL DOWEL | 1 | |
| 14 | 4659221 | CLIP CLIP | 1 | |
| 15 | 4659222 | CLAMP CLAMP | 1 | |
| 16 | 4864082 | BANJO BOLT BANJO BOLT | 4 | |
| 17 | 98417522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 4858606 | GASKET GASKET | 2 | |
| 19 | 98417535 | SCREW CONNECTOR SCREW CONNECTOR | 1 |
