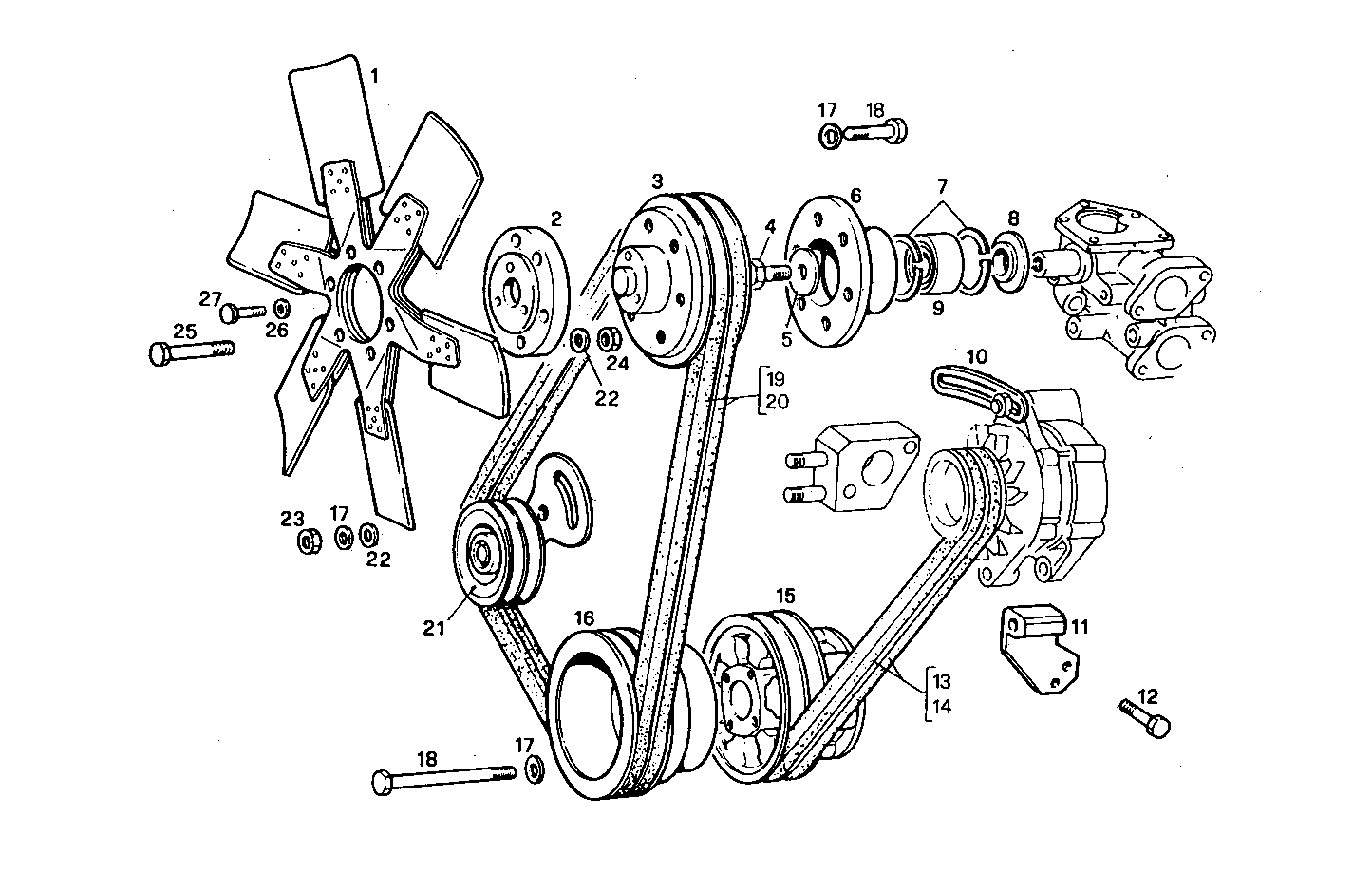

OVERSIZE PUSHER FAN
8061i25.00 — 8061i25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4933187 | FAN FAN | 1 | |
| 2 | 4929123 | SPACING BAR SPACING BAR | 1 | |
| 3 | 4936341 | PULLEY PULLEY | 1 | |
| 4 | 15897931 | SCREW SCREW | 1 | |
| 5 | 4772231 | SPACER RING SPACER RING | 1 | |
| 6 | 4772230 | HUB HUB | 1 | |
| 7 | 11061576 | CIRCLIP CIRCLIP | 2 | |
| 8 | 4747164 | WASHER WASHER | 1 | |
| 9 | 4318965 | DRIVE BEARING DRIVE BEARING | 1 | |
| 10 | 4626125 | RETAINER RETAINER | 1 | |
| 11 | 4936497 | SUPPORT SUPPORT | 1 | |
| 12 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 4799498 | ALTERNATOR BELT ALTERNATOR BELT | 2 | |
| 14 | 4799496 | V-BELT V-BELT | 2 | |
| 15 | 8104551 | PULLEY PULLEY | 1 | |
| 16 | 8104552 | PULLEY PULLEY | 1 | |
| 17 | 11198371 | SPRING WASHER SPRING WASHER | 17 | |
| 18 | 15971421 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 19 | 4936523 | V-BELT V-BELT | 2 | |
| 20 | 4936524 | V-BELT V-BELT | 1 | |
| 21 | 4616156 | BELT TENSIONER BELT TENSIONER | 1 | |
| 22 | 12638621 | WASHER WASHER | 7 | |
| 23 | 12164711 | HEXAGON NUT HEXAGON NUT | 5 | |
| 24 | 12574511 | NUT NUT | 6 | |
| 25 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 26 | 11194071 | WASHER WASHER | 3 | |
| 27 | 16044121 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 28 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 6 |
