OVERSIZE PUSHER FAN
8061i25.00 — 8061i25

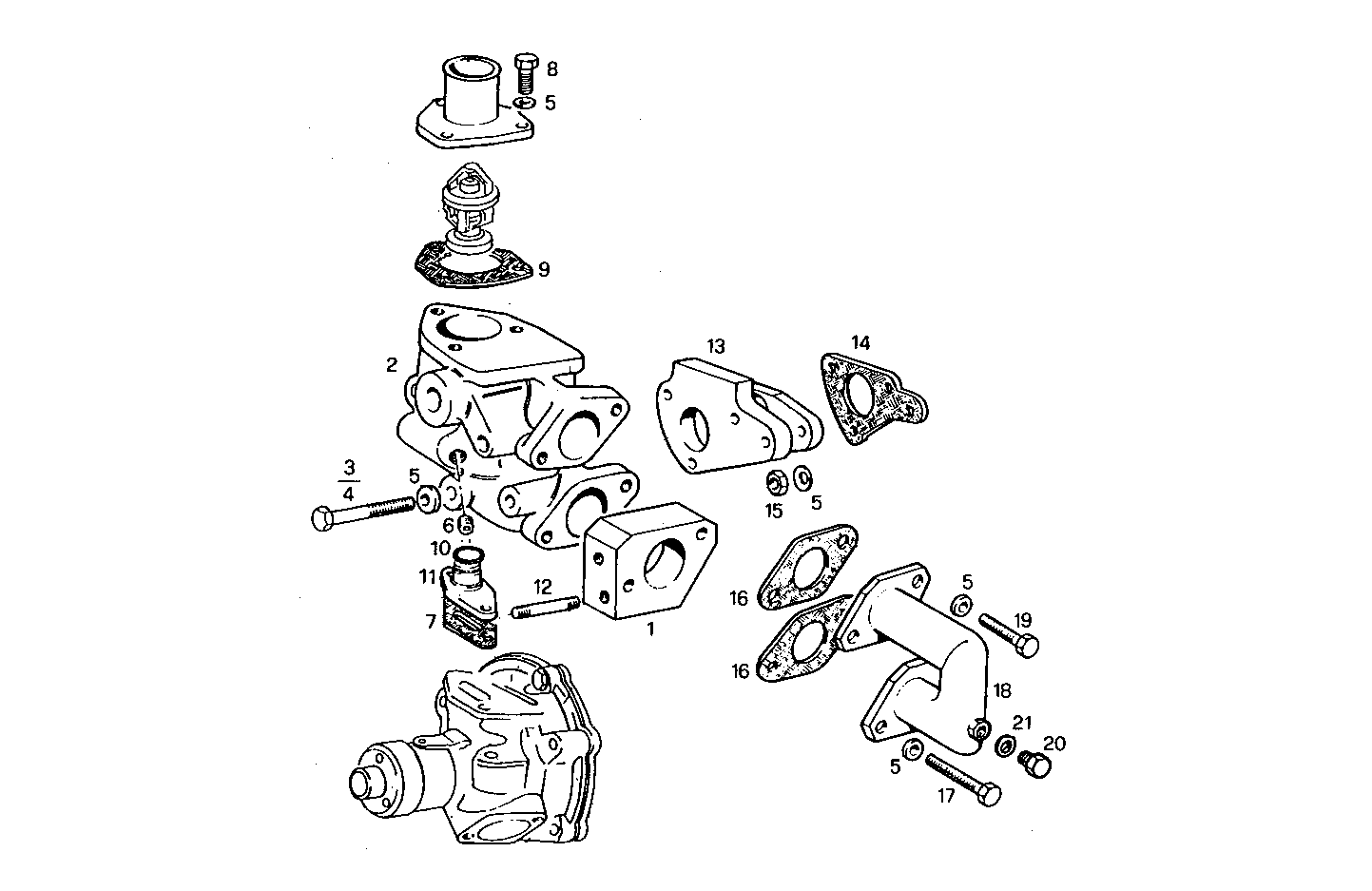

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4936436 | SUPPORT SUPPORT | 1 | |
| 2 | 4790881 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 3 | 15971621 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 15972621 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 11198371 | SPRING WASHER SPRING WASHER | 14 | |
| 6 | 14323811 | LOCK PLUG LOCK PLUG | 1 | |
| 7 | 4774435 | GASKET GASKET | 1 | |
| 8 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 4599809 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 14463281 | O-RING O-RING | 1 | |
| 11 | 4774405 | PIPE PIPE | 1 | |
| 12 | 13449521 | STUD STUD | 2 | |
| 13 | 4728640 | SPACING BAR SPACING BAR | 1 | |
| 14 | 4728639 | GASKET GASKET | 2 | |
| 15 | 12164711 | HEXAGON NUT HEXAGON NUT | 3 | |
| 16 | 38824001 | GASKET GASKET | 3 | |
| 17 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 4936431 | WATER PIPE WATER PIPE | 1 | |
| 19 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 10300711 | LOCK PLUG LOCK PLUG | 1 | |
| 21 | 10257060 | SEAL GASKET SEAL GASKET | 1 |
